Server Technology PRO1 Smart PDU C1S15HN-YQJN5BC3-013

$2,180.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit (rack-mountable) Primary AC 208 V 17.3 kW 3-phase WYE (star)

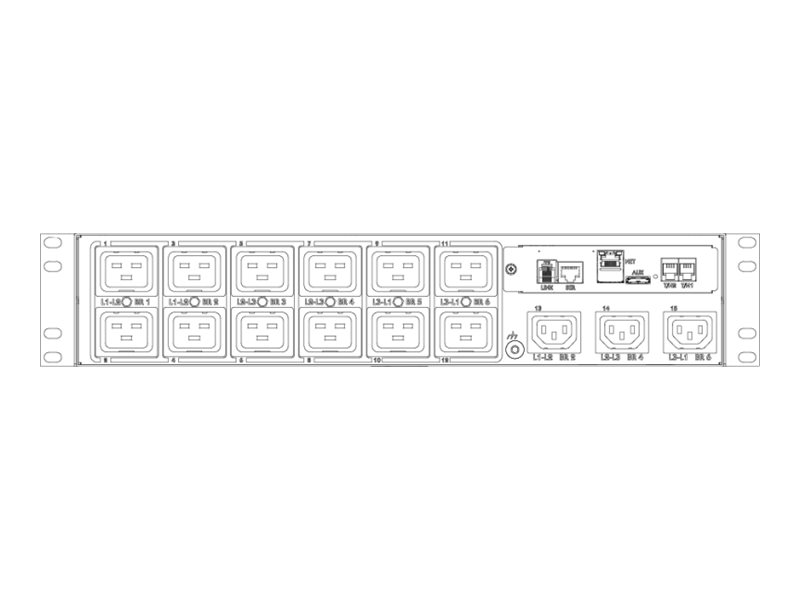

Server Technology PRO1 Smart PDU C1S15HN-YQJN5BC3-013

Power distribution unit (rack-mountable)
Primary
AC 208 V
17.3 kW
3-phase WYE (star)
Ethernet 10/100, RS-232
input: IEC 60309 3P+N+G
output connectors: 15 (12 x IEC 60320 C19, 3 x IEC 60320 C13)

Additional Details
Price:	$2,180.00
Mfr Part #:	C1S15HN-YQJN5BC3-013
SHI Part #:	37455126
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Server Technology PRO1 Smart PDU C1S15HN-YQJN5BC3-013 - Power distribution unit (rack-mountable) - Primary - AC 208 V - 17.3 kW - 3-phase WYE (star) - Ethernet 10/100, RS-232 - input: IEC 60309 3P+N+G - output connectors: 15 (12 x IEC 60320 C19, 3 x IEC 60320 C13)
Manufacturer	Legrand
MSRP	$2,174.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	25.7 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Width	43.7 cm
General / Subcategory	Power distribution devices
Header / Brand	Server Technology
Networking / Remote Management Interface	Ethernet 10/100 RS-232
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	15
Power Device / Voltage Required	AC 208 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	25.7 cm
Height	8.9 cm
Width	43.7 cm
Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x management (Fast Ethernet) - RJ-45 1 x management (RS-232) - RJ-45 2 x sensor 1 x cascading - RJ-12
General
Device Type	Power distribution unit - rack-mountable
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 2 years
Miscellaneous
Compliant Standards	TLS 1.2, ICES-003 Class A, UL 60950-1, UL 489, cTUVus, IEC 60947-2, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, FCC Subpart B 15.107, FCC Subpart B 15.109, CSA C22.2 No. 5, EN 60947-2
Features	Per Input Power Sensing (PIPS), High Density Outlet Technology (HDOT), Auto-Flip Current Display, Branch Circuit Protection, environmental sensor ready, hot-swappable network card, 20A trip circuit breakers, 10 kAIC Interrupt Rating
Networking
Remote Management Interface	Ethernet 10/100, RS-232
Remote Management Protocol	Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, SFTP, IPv4, IPv6, TACACS+, LDAP, RADIUS
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50/60 Hz
Input Connectors	1 x power IEC 60309 3P+N+G
Input Voltage	AC 208 V
Input Wiring	3-phase WYE (star)
Max Electric Current	60 A
Output Voltage	AC 208 V
Power Capacity	17.3 kW
Power Output Connectors Details	3 x power IEC 60320 C13 12 x power IEC 60320 C19
