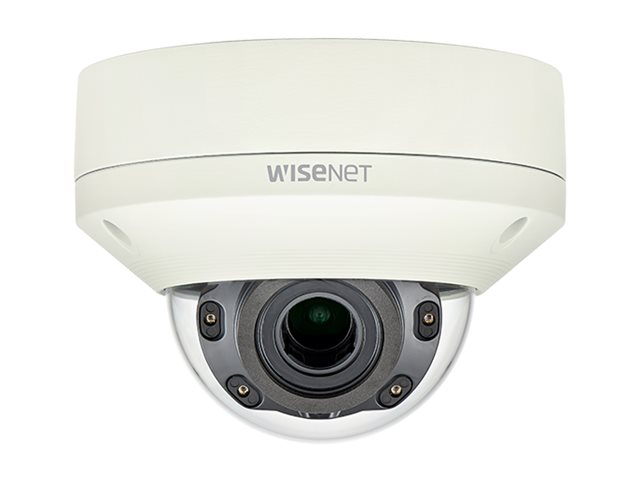

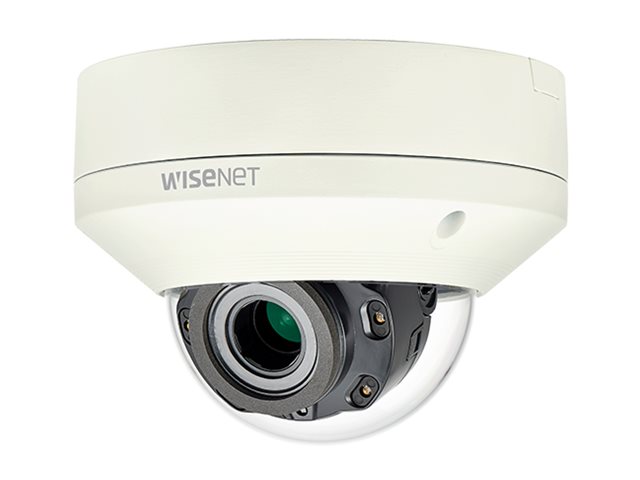

Hanwha Techwin WiseNet X XNV-L6080R
MSRP$925.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Techwin WiseNet X XNV-L6080R
- Network surveillance camera
- dome
- outdoor
- vandal-proof
- color (Day&Night)
- 2.2 MP
- 1920 x 1080
- auto iris
- motorized
- composite
- LAN 10/100
- MPEG-4, MJPEG, H.264, AVC, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $925.00 |
| Mfr Part #: | XNV-L6080R |
| SHI Part #: | 38387719 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Techwin WiseNet X XNV-L6080R - Network surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 2.2 MP - 1920 x 1080 - auto iris - motorized - composite - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $925.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 11.85 cm |
| Dimensions & Weight / Weight | 940 g |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Beige |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, plastic housing, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, aluminum housing |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.85 cm |
| Weight | 940 g |
| Width | 16 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Total Pixels | 1945 x 1109 |
| Type | 2.2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 3.2 mm - 10 mm |
| Focus Adjustment | Manual, motorized |
| Horizontal Field of View (degree) | 33.2 - 109 |
| Lens Iris | F/1.6-2.9 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 3.1 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 18.7 - 57.4 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | 0 to 354 |
| Power | |
| Power Device | 11 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 67 |
