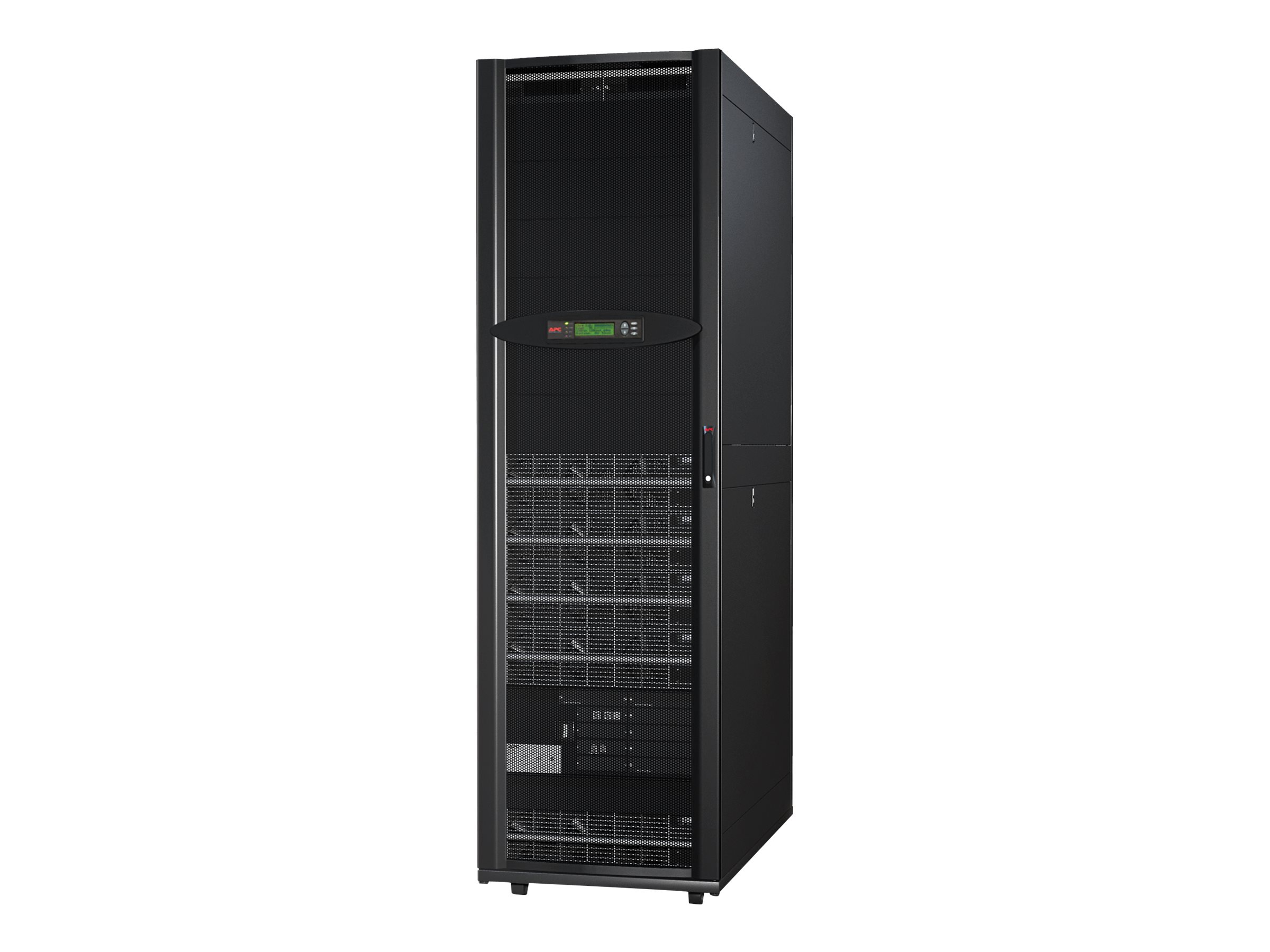

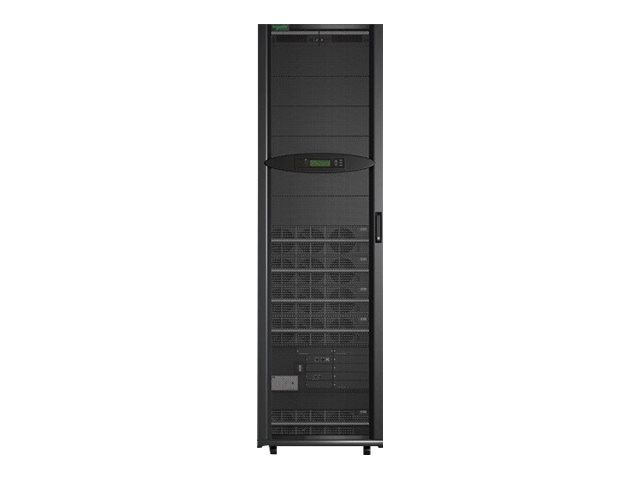

APC Symmetra PX 40kW Scalable to 100kW
MSRP$50,525.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Symmetra PX 40kW Scalable to 100kW
- Power array
- AC 208 V
- 40 kW
- 40000 VA
- 3-phase
- no battery
- RS-232
- output connectors: 1
- black
- with Start-Up Service 5X8
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $50,525.00 |
| Mfr Part #: | SY40K100F-NB |
| SHI Part #: | 38668362 |
| Category: | Business software |
| UNSPSC: | 43231500 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Business software |
| Description | APC Symmetra PX 40kW Scalable to 100kW - Power array - AC 208 V - 40 kW - 40000 VA - 3-phase - no battery - RS-232 - output connectors: 1 - black - with Start-Up Service 5X8 |
| Manufacturer | APC by Schneider Electric |
| MSRP | $50,525.00 |
| UNSPSC | 43231500 |
| Main Specifications | |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 107 cm |
| Height | 201 cm |
| Weight | 411.9 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 114.3 cm |
| Shipping Height | 203.2 cm |
| Shipping Weight | 466.5 kg |
| Shipping Width | 84.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 67 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 2 SmartSlot |
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | Black |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | ISO 9001, UL 1778, ISO 14001, IEC 62040-3, NEMA Type 1, FCC Part 15 A |
| Features | Audible alarm, LCD display, built-in static bypass |
| Networking | |
| Remote Management Interface | RS-232 |
| Power Device | |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 208 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 177 - 239 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 120/208 V ± 2% |
| Output Waveform | Sinewave |
| Power Capacity | 40 kW / 40000 VA |
| UPS Technology | On-line |
