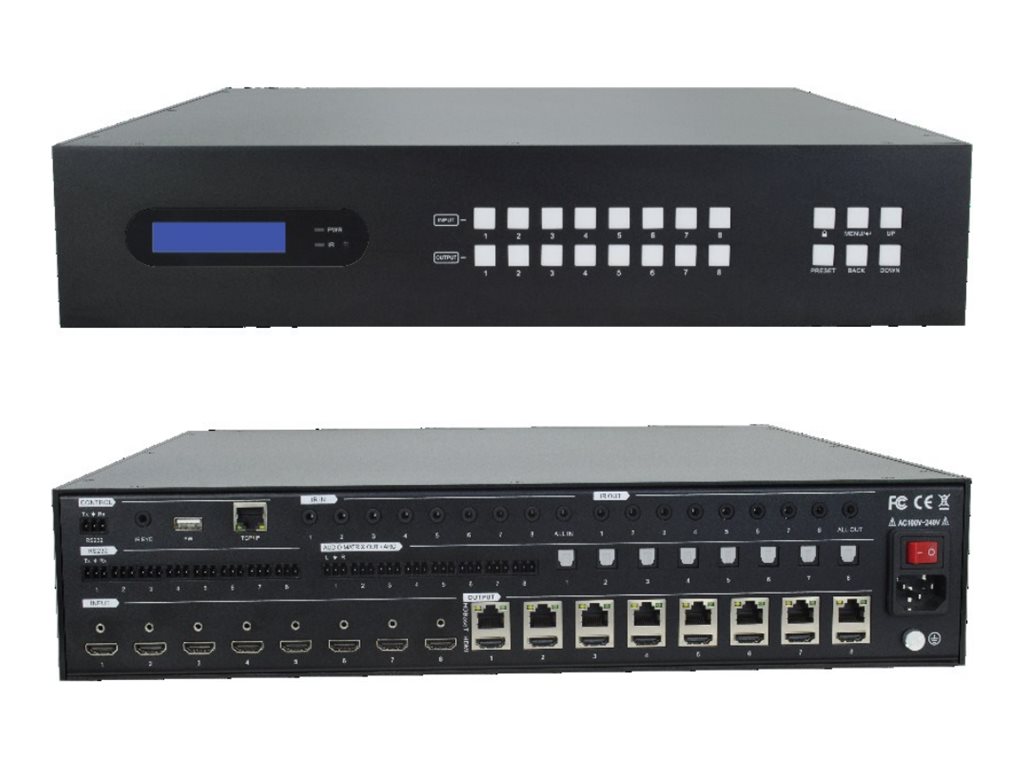

Monoprice Blackbird - Video/audio/infrared/network extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Monoprice Blackbird - Video/audio/infrared/network extender
- 8x8, HDMI, HDBaseT, matrix
- 8 local users
- rack-mountable
- PoC
| Additional Details | |
|---|---|
| Mfr Part #: | 27842 |
| SHI Part #: | 39358422 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | Monoprice |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | Monoprice Blackbird - Video/audio/infrared/network extender - 8x8, HDMI, HDBaseT, matrix - 8 local users - rack-mountable - PoC |
| Manufacturer | Monoprice |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 5.8 kg |
| Dimensions & Weight / Width | 43.66 cm |
| Header / Brand | Monoprice |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Video/audio/infrared/network extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 44 cm |
| Height | 8.8 cm |
| Weight | 5.8 kg |
| Width | 43.66 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Display |
| Compliant Standards | HDCP 2.2, HDCP 1.4 |
| Device Type | Video/audio/infrared/network extender - 8 ports |
| Enclosure Type | Rack-mountable 2U |
| Features | Matrix mode, HDR 4K60 4:4:4 compatible, HDR10 support, bi-directional IR, EDID Management, 3D support, LPCM 7.1 support, Dolby Atmos support, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Digital support, DTS support, CEC passthrough, ground points |
| KVM Local Users Qty | 8 local users |
| Max Resolution | 4K @ 60 Hz |
| Performance | Video bandwidth: 18 Gbps |
| Power Over Ethernet (PoE) | PoC |
| Remote Management Protocol | TCP/IP |
| Status Indicators | Power, infrared |
| Subtype | HDMI |
| Miscellaneous | |
| Cables Included | 1 x DB-9 to RS-232 cable |
| Compliant Standards | FCC Part 15, PCM, ICES-003 |
| Included Accessories | 2 rack mounting ears, IR extender, IR remote, 16 x 3-pin Phoenix connectors, power cable, 4 plastic cushions, 8 x HDBaseT receivers |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
