Hardware Monitors and Projectors Projectors
Add to My Favorites
Projectors

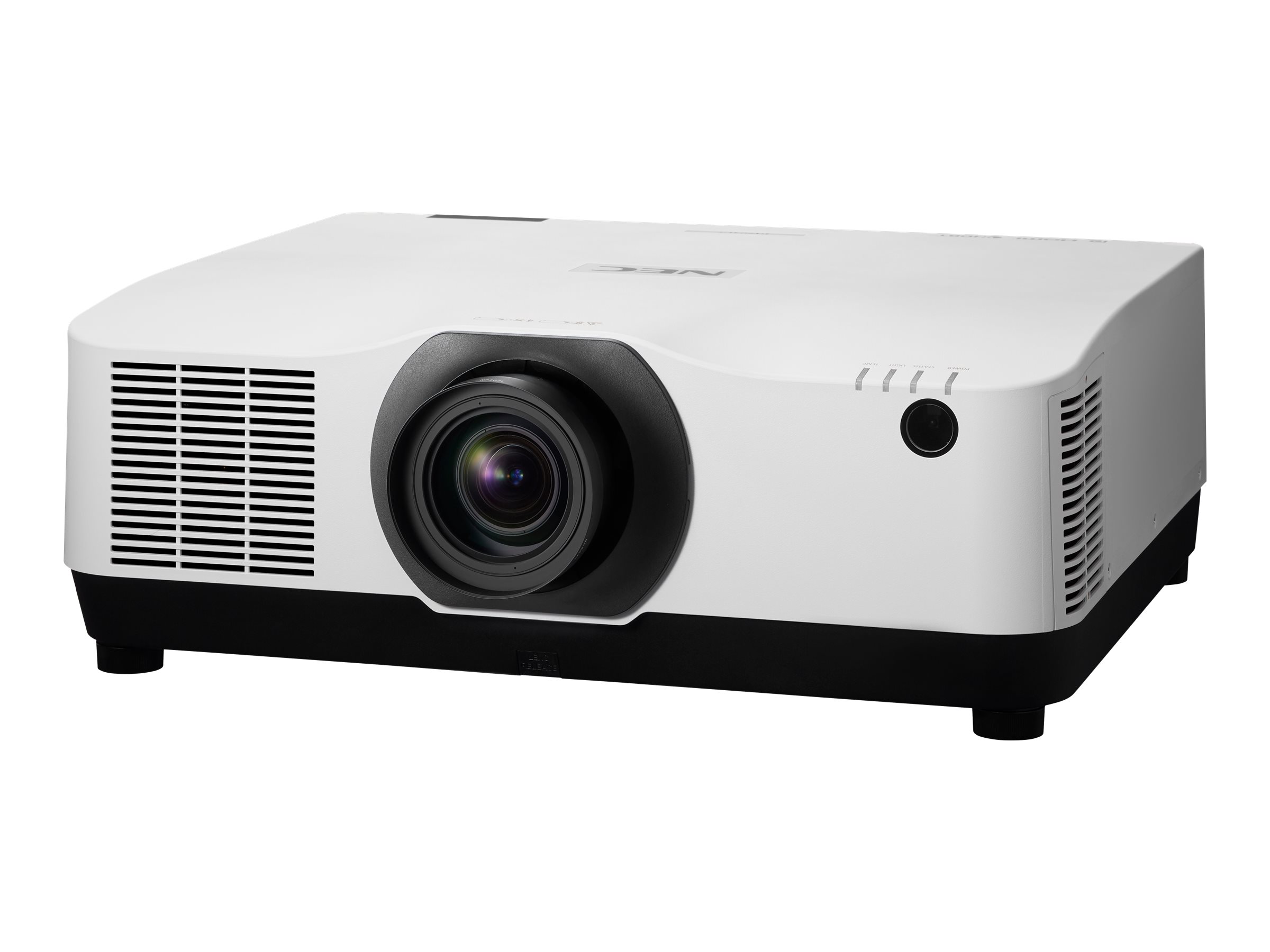

NEC PA Series NP-PA1004UL-W-41

MSRP$23,240.00
$19,188.00
NEC PA Series NP-PA1004UL-W-41
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LCD projector
  • 3D
  • 10000 lumens
  • WUXGA (1920 x 1200)
  • 16:10
NEC PA Series NP-PA1004UL-W-41
  • LCD projector
  • 3D
  • 10000 lumens
  • WUXGA (1920 x 1200)
  • 16:10
  • 1080p
  • with 5 years NEC InstaCare Next Business Day Exchange Service
  Additional Details
Price: $19,188.00
MSRP: $23,240.00
Mfr Part #: NP-PA1004UL-W-41
SHI Part #: 40291789
Category: Computer screen projector
UNSPSC: 45111609
Manufacturer: NEC
Product Type: Hardware
General Information
CategoryComputer screen projector
DescriptionNEC PA Series NP-PA1004UL-W-41 - LCD projector - 3D - 10000 lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - with 5 years NEC InstaCare Next Business Day Exchange Service
ManufacturerNEC
MSRP$23,240.00
UNSPSC45111609
Main Specifications
Dimensions & Weight / Depth49 cm
Dimensions & Weight / Height21.6 cm
Dimensions & Weight / Weight23 kg
Dimensions & Weight / Width59.9 cm
Header / BrandNEC
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWired
Packaged Quantity1
Projector / ClassDigital projector
Projector / HD Image Format1080p
Projector / Native Aspect Ratio16:10
Projector / PortabilityNon-portable
Projector / Recommended UsePresentation and multimedia
Service & Support / Type5-year warranty
Video Input / Analog Video Format
  • NTSC
  • NTSC 4.43
  • PAL
  • PAL 60
  • PAL-M
  • PAL-N
  • SECAM
Dimensions & Weight
Depth49 cm
Height21.6 cm
Weight23 kg
Width59.9 cm
Dimensions & Weight (Shipping)
Shipping Depth63.1 cm
Shipping Height35.9 cm
Shipping Weight27 kg
Shipping Width73.5 cm
Environmental Parameters
Humidity Range Operating20 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Sound Emission35 dB
Sound Emission (Economic Mode)32 dB
Expansion / Connectivity
Interfaces
  • 1 x VGA / component video input - 15 pin HD D-Sub (HD-15)
  • 2 x HDMI input - 19 pin HDMI Type A
  • 1 x DisplayPort input - 20 pin DisplayPort
  • 1 x HDBaseT input - RJ-45
  • 1 x HDBaseT output - RJ-45
  • 1 x audio line-in - mini-phone stereo 3.5 mm
  • 1 x audio line-out - mini-phone stereo 3.5 mm
  • 1 x remote control - mini-phone stereo 3.5 mm
  • 1 x USB - 4 pin USB Type A (management)
  • 1 x 3D Sync - 3 pin mini-DIN
  • 1 x network - RJ-45
  • 1 x serial RS-232 - 9 pin D-Sub (DB-9)
General
3D CapableYes (3D glasses sold separately)
Bundled Services5 years NEC InstaCare Next Business Day Exchange Service
Device TypeLCD projector - 1080p
NetworkingEthernet
Lens
Focus TypePowered
Horizontal Keystone Correction-40 / +40
Horizontal Lens Shift30% / 30%
Keystone Correction DirectionHorizontal, vertical
Lens ApertureF/1.7-2.0
Lens Shift DirectionHorizontal, vertical
Lens Shift TypePowered
Vertical Keystone Correction-40 / +40
Vertical Lens Shift50% / 10%
Zoom Factor2.3x
Zoom TypePowered
Manufacturer Warranty
Service & Support
  • Limited warranty - parts and labor - 5 years
  • Limited warranty - lamp - 5 years / 20000 hours
Miscellaneous
Compliant StandardsHDCP 1.3, HDCP 1.4, HDCP 2.2, UL 60950-1 Second Edition, FCC Part 15 B, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, ICES-003 issue 6, ANSI C63.4:2014
Included AccessoriesWireless remote control, batteries, cable cover, lens cover
Security FeaturesSecurity lock slot (cable lock sold separately)
Security Slot TypeKensington security slot
Power
Power Consumption Operational635 watt
Power SourceAC
Voltage RequiredAC 120/230 V (50/60 Hz)
Projector
Brightness10000 lumens
Contrast Ratio3000000:1 (dynamic)
Controls & AdjustmentsKeystone correction, lens shift dial (horizontal), lens shift dial (vertical)
FeaturesLaser Shutter, Filter Free, HDR10 compatibility, TileMatrix, DisplayNote, Crestron RoomView, AMX Beacon, Extron XTP certified, PJlink, High-bandwidth Digital Content Protection System (HDCP), Geometric Correction, Eco-Mode technology, DICOM Simulation Mode, Edge blending, stacking correction, Virtual Remote, Quick On/Off, picture in picture, Advanced AccuBlend technology, AutoSense technology, built-in light shutter, lens memory, Micro Lens Array (MLA) Technology, portrait mode, VORTEX Technology Plus, picture by picture, picture on picture, Direct Power Off, wall color correction, Free Tilt, landscape mode, Cornerstone Correction, built-in HTTP page
Image Size152 cm - 1270 cm
Lamp Life CycleUp to 20000 hour(s)
Max Sync Rate (V x H)120 Hz x 153 kHz
Native Aspect Ratio16:10
Projection Distance0.74 m - 20.9 m
ResolutionWUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized)
Throw Ratio1.30 - 3.02:1
Software / System Requirements
Software IncludedNaViSet Administrator 2, ProAssist Software
Video Input
TV SystemNTSC, NTSC 4.43, PAL, PAL 60, PAL-M, PAL-N, SECAM
Video InterfacesVGA, HDMI, DisplayPort, HDBaseT
Video Modes480p, 480i, 576i, 576p, 720p, 1080i, 1080p, 4K
