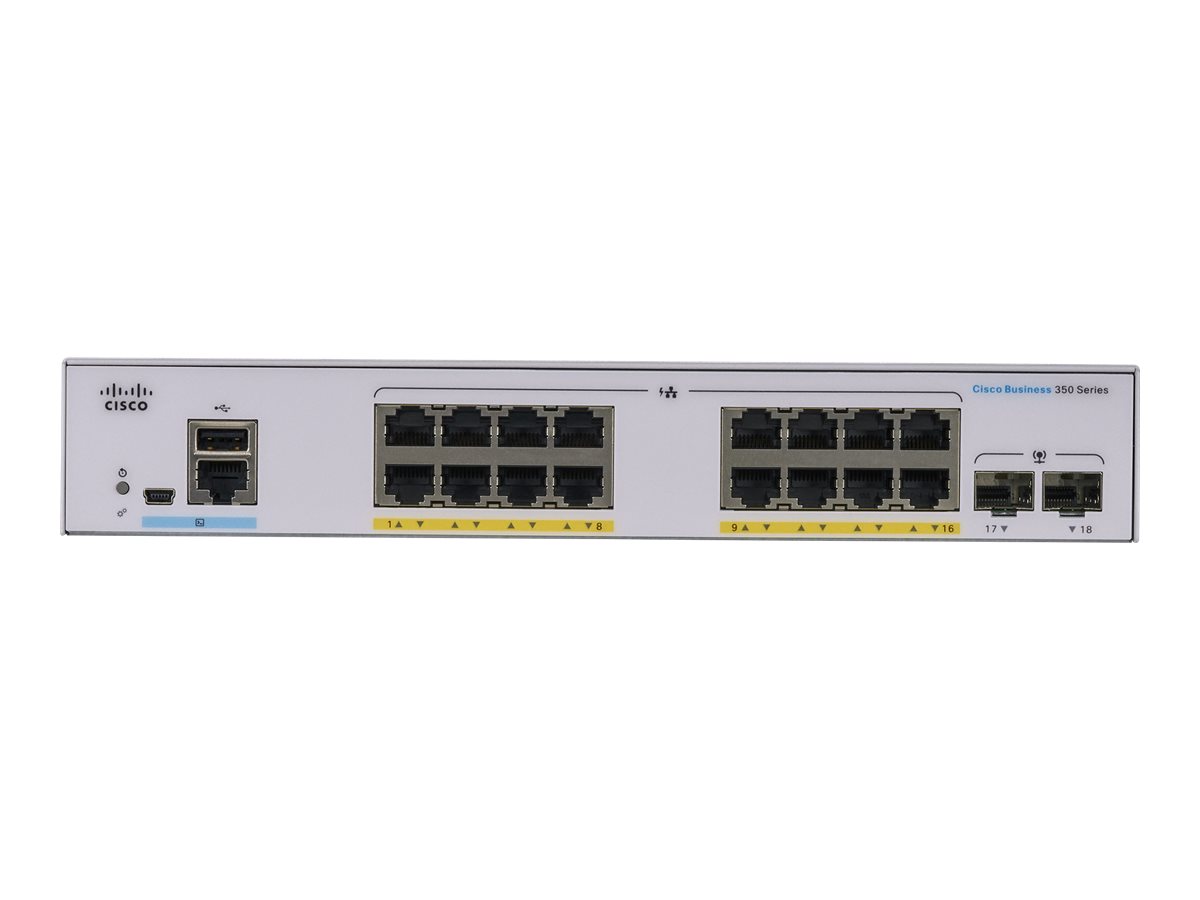

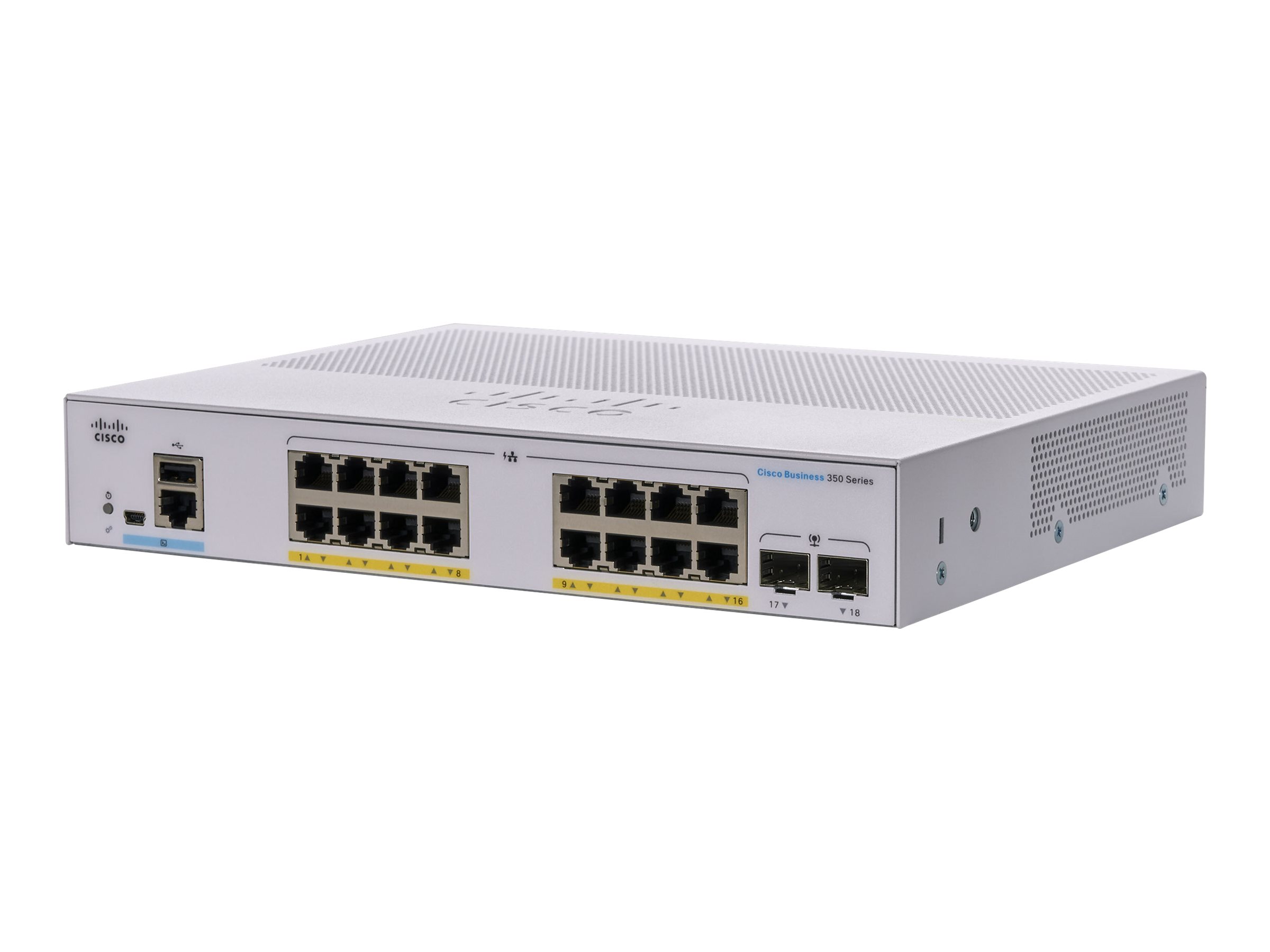

Cisco Business 350 Series CBS350-16P-E-2G

$712.00
Cisco Business 350 Series CBS350-16P-E-2G
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
  • rack-mountable
Cisco Business 350 Series CBS350-16P-E-2G
  • Switch
  • L3
  • managed
  • 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
  • rack-mountable
  • PoE+ (120 W)
  Additional Details
Price: $712.00
Mfr Part #: CBS350-16P-E-2G-NA
SHI Part #: 40716109
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionCisco Business 350 Series CBS350-16P-E-2G - Switch - L3 - managed - 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - rack-mountable - PoE+ (120 W)
ManufacturerCisco Systems
MSRP$711.13
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth21 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight1.42 kg
Dimensions & Weight / Width26.8 cm
Header / BrandCisco
Header / Country Kits
  • Canada
  • Chile
  • Colombia
  • Latin America
  • Mexico
  • United States
Miscellaneous / Product ColorWhite
Networking / Form FactorRack-mountable
Networking / Ports Qty18
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth21 cm
Height4.4 cm
Weight1.42 kg
Width26.8 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Humidity Range Storage10 - 90% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 16 x 10/100/1000 Base-T RJ-45 PoE+
  • 2 x 1000Base-X SFP
  • 1 x console (mini-USB) Type B
  • 1 x USB Type A
  • 1 x console RJ-45
General
Authentication MethodRADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity
  • RPVST+ instances: 126
  • MSTP instances: 8
  • VLANs supported: 4094
  • ACL rules: 1024
  • Buffer capacity (MB): 1.5
Compliant StandardsIEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
Device TypeSwitch - 18 ports - L3 - managed - stackable
Enclosure TypeRack-mountable
Encryption AlgorithmSSL
Features802.1x authentication, ARP support, IPMB, IPv6 support, RA guard, SCT, DoS attack prevention, LLDP support, LLDP-MED, VSDP, VLAN support, QoS, PVST+, RPVST+, LACP support, PVE, MVR, GVRP, UDLD, HOL Blocking Prevention, loopback detection, LAG, DHCP server, UDP, BPDU Guard, STP Root Guard, DHCP snooping, IP source guard, DAI, SSD, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DSCP support, WRR, ToS, DiffServ support, flow control, DAD, ISATAP tunnel support, SNTP support, Syslog support, DNS client, DHCP relay, MIB, dual image support, firmware upgradable, SmartPort technology, BOOTP support, cable test, reset button, fanless
Flash Memory256 MB
Jumbo Frame Support2KB
MAC Address Table Size16K entries
Max Units In A Stack4
Performance
  • Switching capacity: 36 Gbps
  • Forwarding performance (64-byte packet size): 26.78 Mpps
PoE Budget120 W
Ports16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)PoE+
ProcessorX ARM: 800 MHz
RAM512 MB
Remote Management ProtocolDHCP, RSTP, RADIUS, SSH, SCP, SSH-2, HTTPS, CLI, ICMP, Telnet, TFTP, TACACS+, SNMP 1, SNMP 2c, SNMP 3, RMON, HTTP
Routing ProtocolSTP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, static IPv4 routing, static IPv6 routing, CIDR, policy-based routing (PBR), MLD, MLDv2
Status IndicatorsStatus, PoE, link/activity/speed
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - web support - 1 year
  • Technical support - phone consulting - 1 year
Miscellaneous
Compliant StandardsUSGv6, UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A
LocalizationUnited States, Canada, Mexico, Colombia, Chile, Latin America
MTBF706,983 hours
Rack Mounting KitIncluded
Power
Power Consumption Operational150.1 Watt
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
