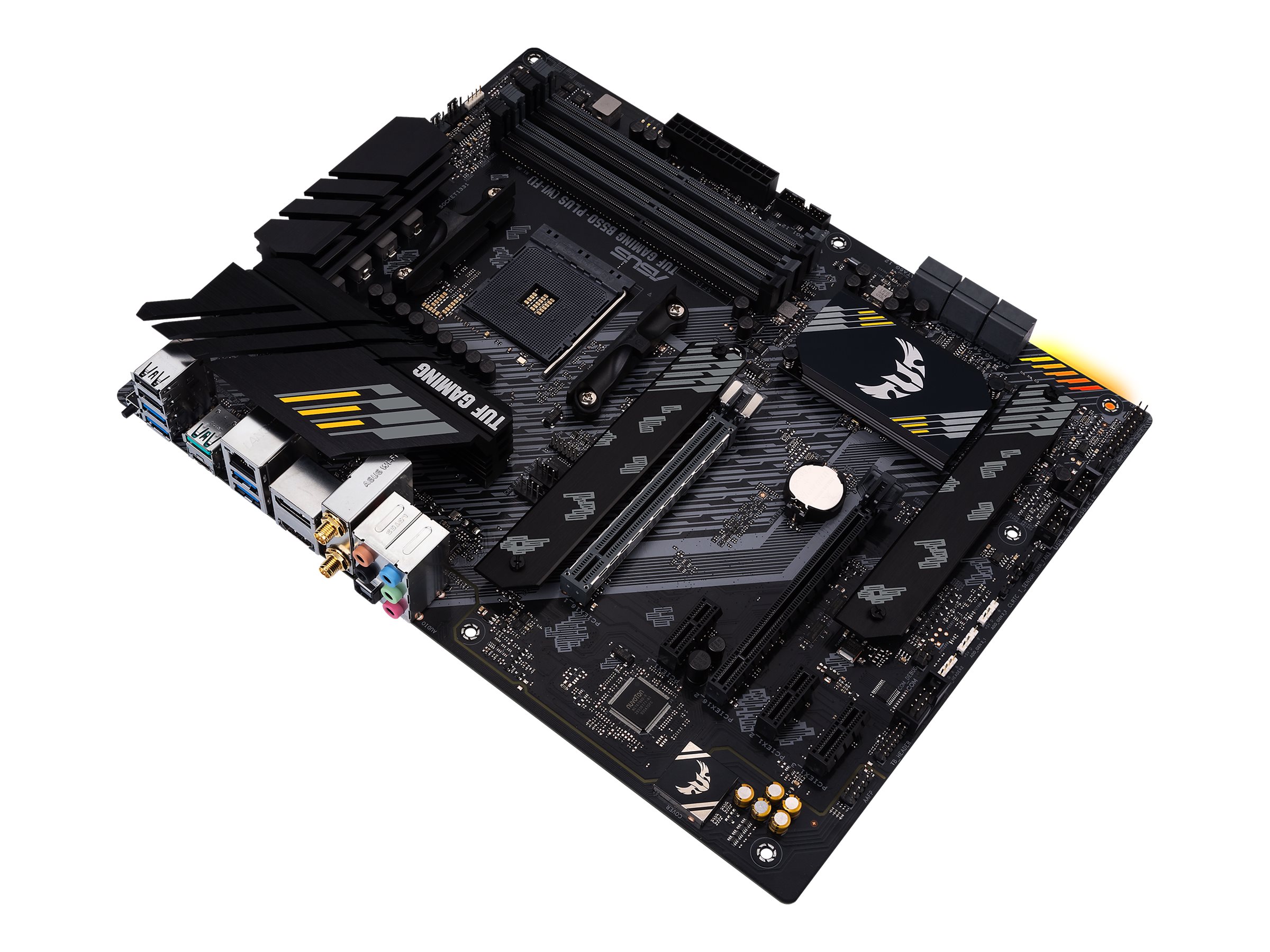

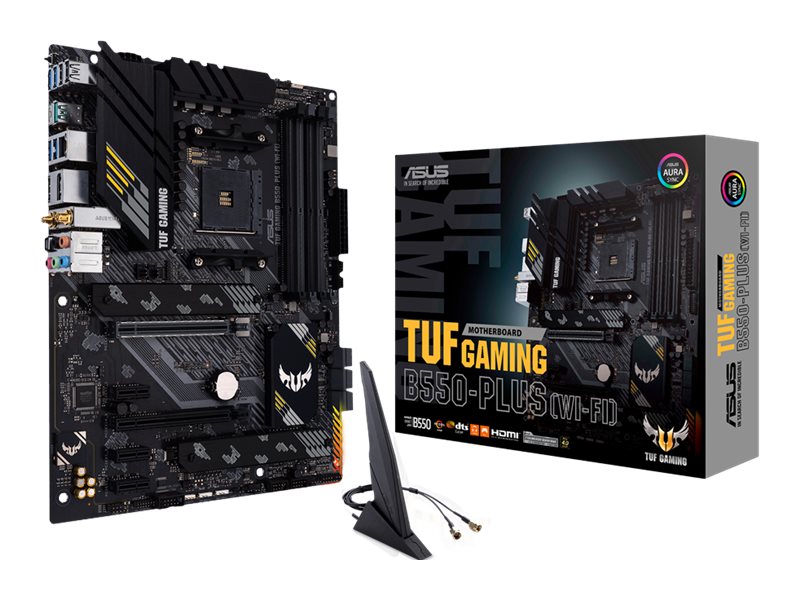

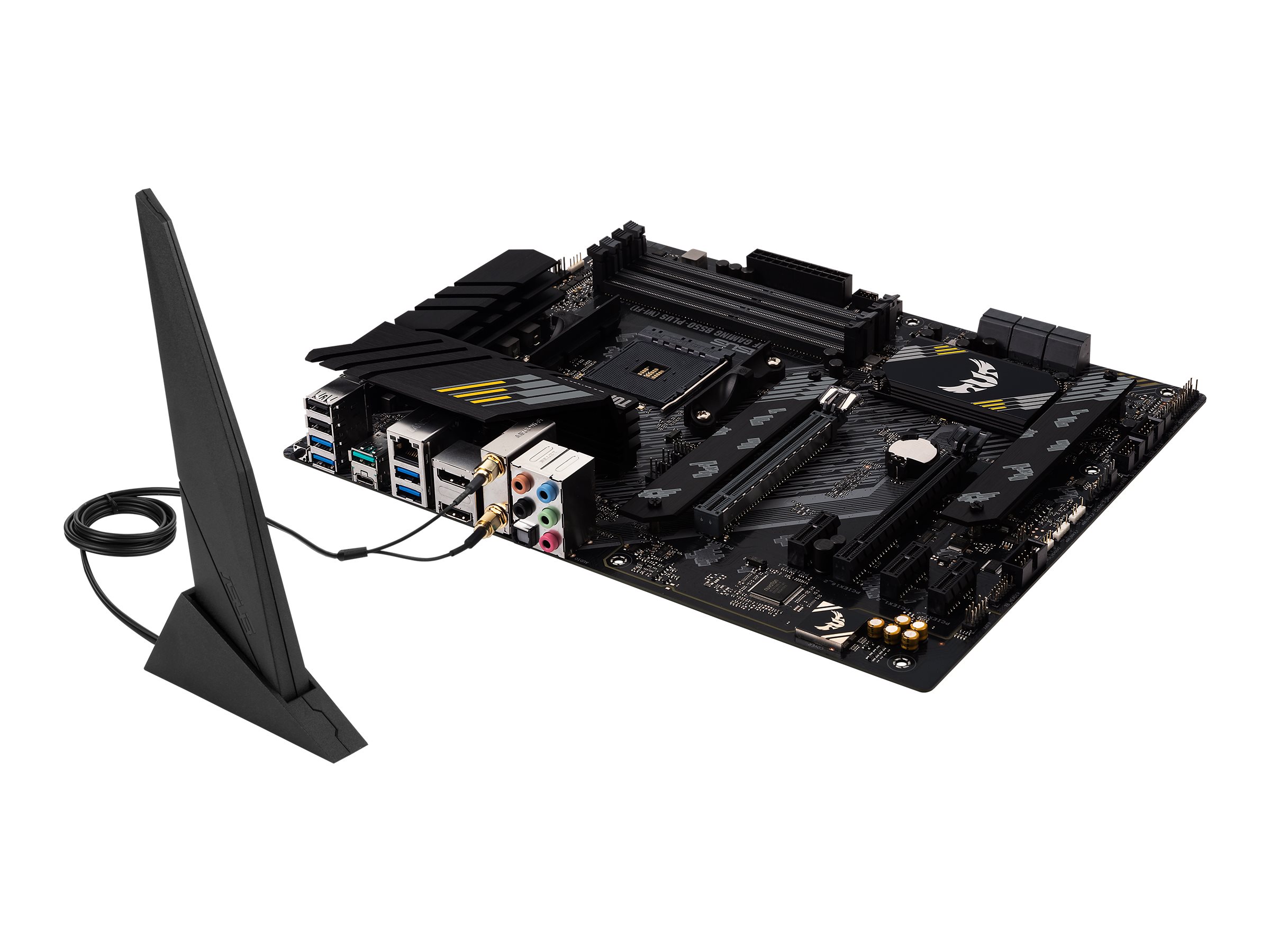

ASUS TUF GAMING B550-PLUS (WI-FI)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS TUF GAMING B550-PLUS (WI-FI)
- Motherboard
- ATX
- Socket AM4
- AMD B550 Chipset
- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
- 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | 90MB15D0-M0AAY0 |
| SHI Part #: | 41235069 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS TUF GAMING B550-PLUS (WI-FI) - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD B550 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALCS1200A |
| Compliant Standards | High Definition Audio, DTS Custom |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Turbo LAN, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS ProCool, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, ASUS Stainless Steel Back I/O, M.2 heatsink, 8+2 DrMOS power stages |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Realtek RTL8125B / Intel AX200 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 screw, I/O back cover, TUF stickers, rubber pad |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.) |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | ECC, non-ECC |
| Technology | DDR4 |
