OWC ThunderBay 4 mini
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

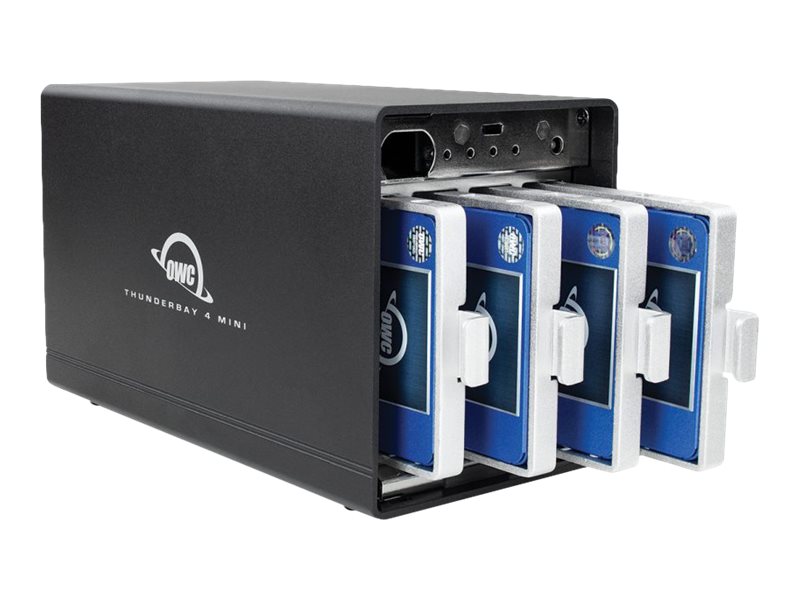

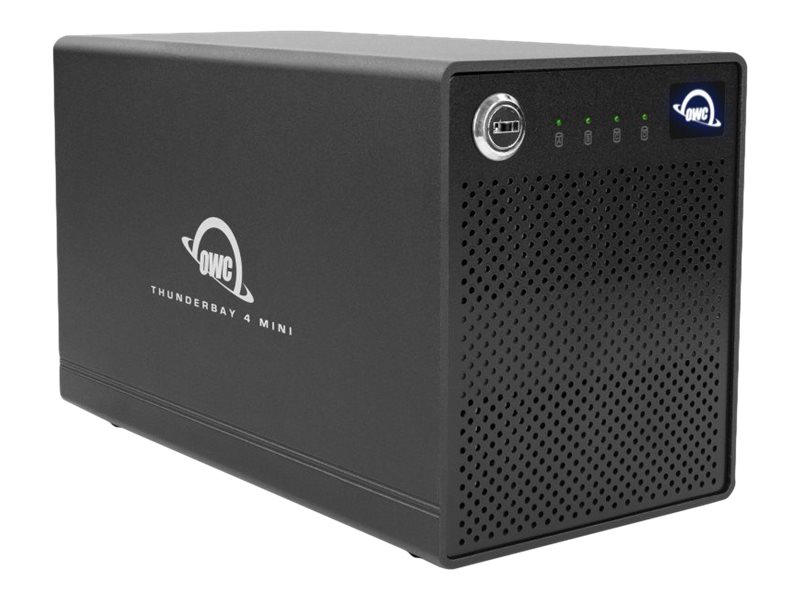

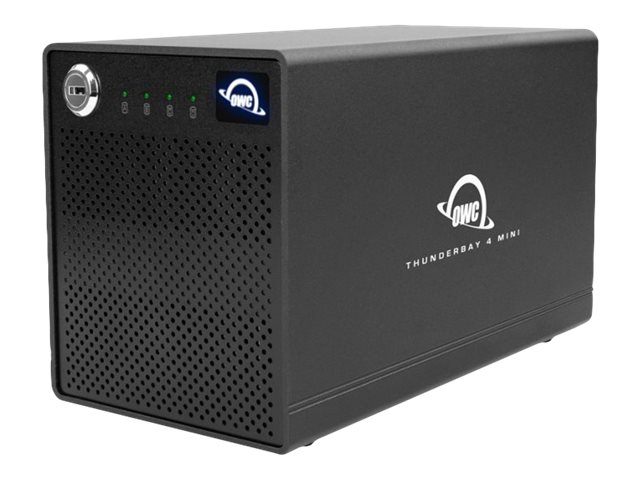

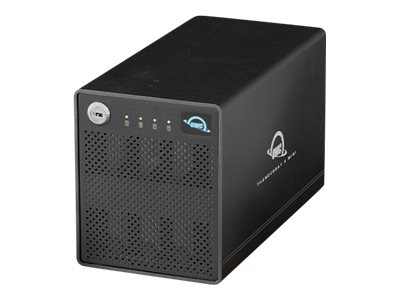

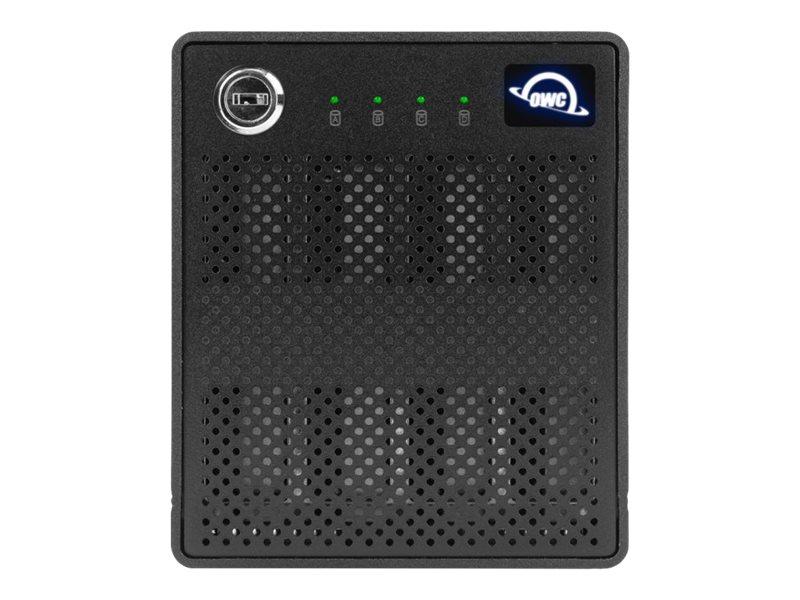

OWC ThunderBay 4 mini
- Solid state drive array
- 16 TB
- 4 bays (SATA-600)
- SSD 4 TB x 4
- Thunderbolt 3 (external)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | OWCTB3QMSRS16TP |
| SHI Part #: | 42858839 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Other World Computing |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | OWC ThunderBay 4 mini - Solid state drive array - 16 TB - 4 bays (SATA-600) - SSD 4 TB x 4 - Thunderbolt 3 (external) |
| Manufacturer | Other World Computing |
| MSRP | $2,799.99 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.1 cm |
| Dimensions & Weight / Height | 11.7 cm |
| Dimensions & Weight / Width | 9.6 cm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | OWC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | Thunderbolt 3 |
| Storage / HDD Array External Interface Class | Thunderbolt |
| Storage / Total Array Capacity | 16 TB |
| Storage / Type | Solid state drive array |
| Chassis | |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 |
| Dimensions & Weight | |
| Depth | 19.1 cm |
| Height | 11.7 cm |
| Width | 9.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 27 cm |
| Shipping Height | 12.5 cm |
| Shipping Width | 27 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" |

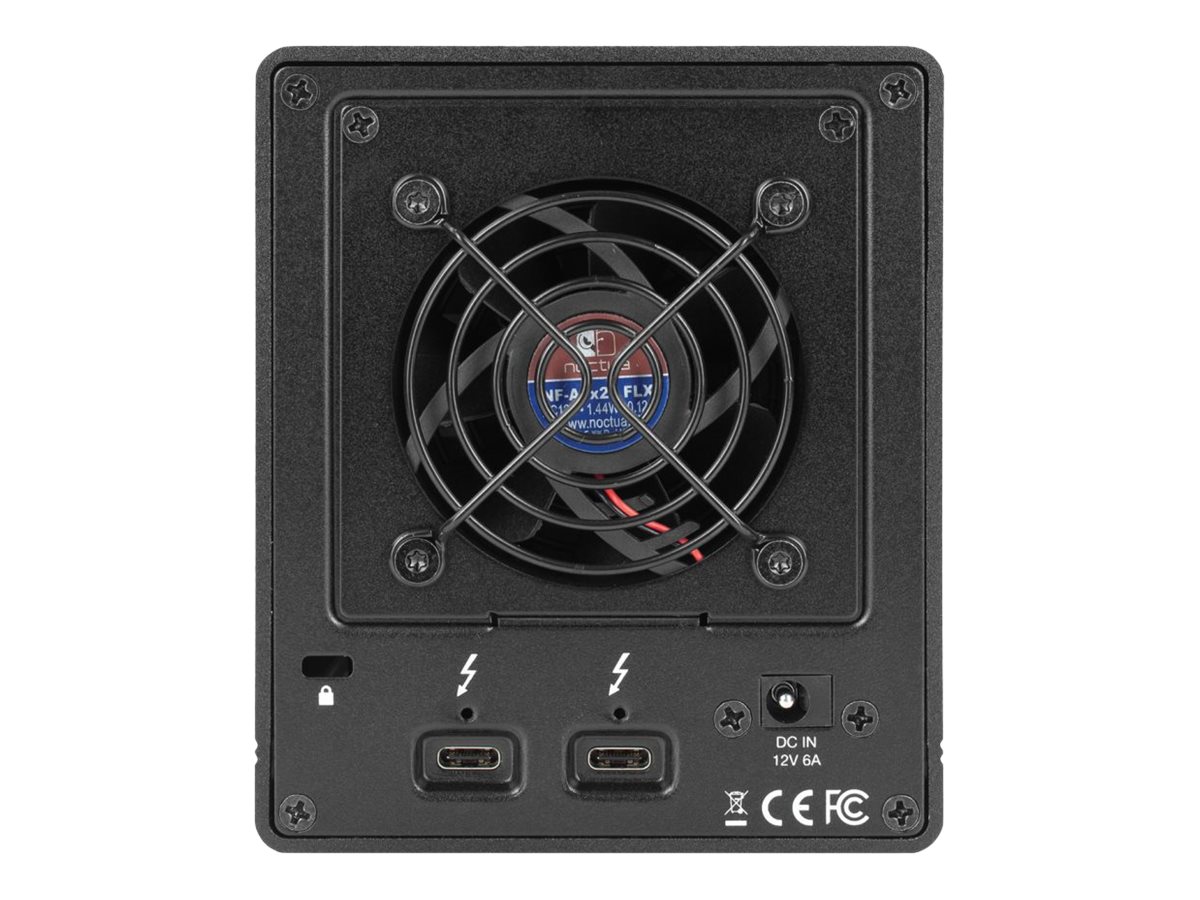

| Interfaces | 2 x Thunderbolt 3 - 24 pin USB-C |
| General | |
| Device Type | Solid state drive array |
| Enclosure Color | Black |
| Hard Drive | |
| Capacity | 4 x 4 TB |
| Features | RAID 5 - factory configured |
| Interface Type | SATA 6Gb/s |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 3 cable |
| Compliant Standards | UL, VCCI, BSMI, FCC, RCM |
| Features | Security lock slot (cable lock sold separately), key lock, aluminum enclosure, daisy chaining support, ventilation holes, bootable, Asmedia ASM1062, 60 mm cooling fan |
| Included Accessories | 2 x keys |
| Software Included | SoftRAID XT |
| Power | |
| Power Device | External power adapter |
| Power Provided | 72 Watt |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Processor | |
| CPU | Intel JHL6540 |
| Storage | |
| HDD Array External Interface | Thunderbolt 3 |
| Total Array Capacity | 16 TB |
| Storage Controller | |
| Channel Qty | 4 |
| Interface Type | SATA 6Gb/s |
| Max Storage Devices Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 4, RAID 5, RAID 10, JBOD |
| Type | RAID |
| System Requirements | |
| OS Required | Microsoft Windows Server 2016, Windows 10 64-bit Edition, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15 |
