Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

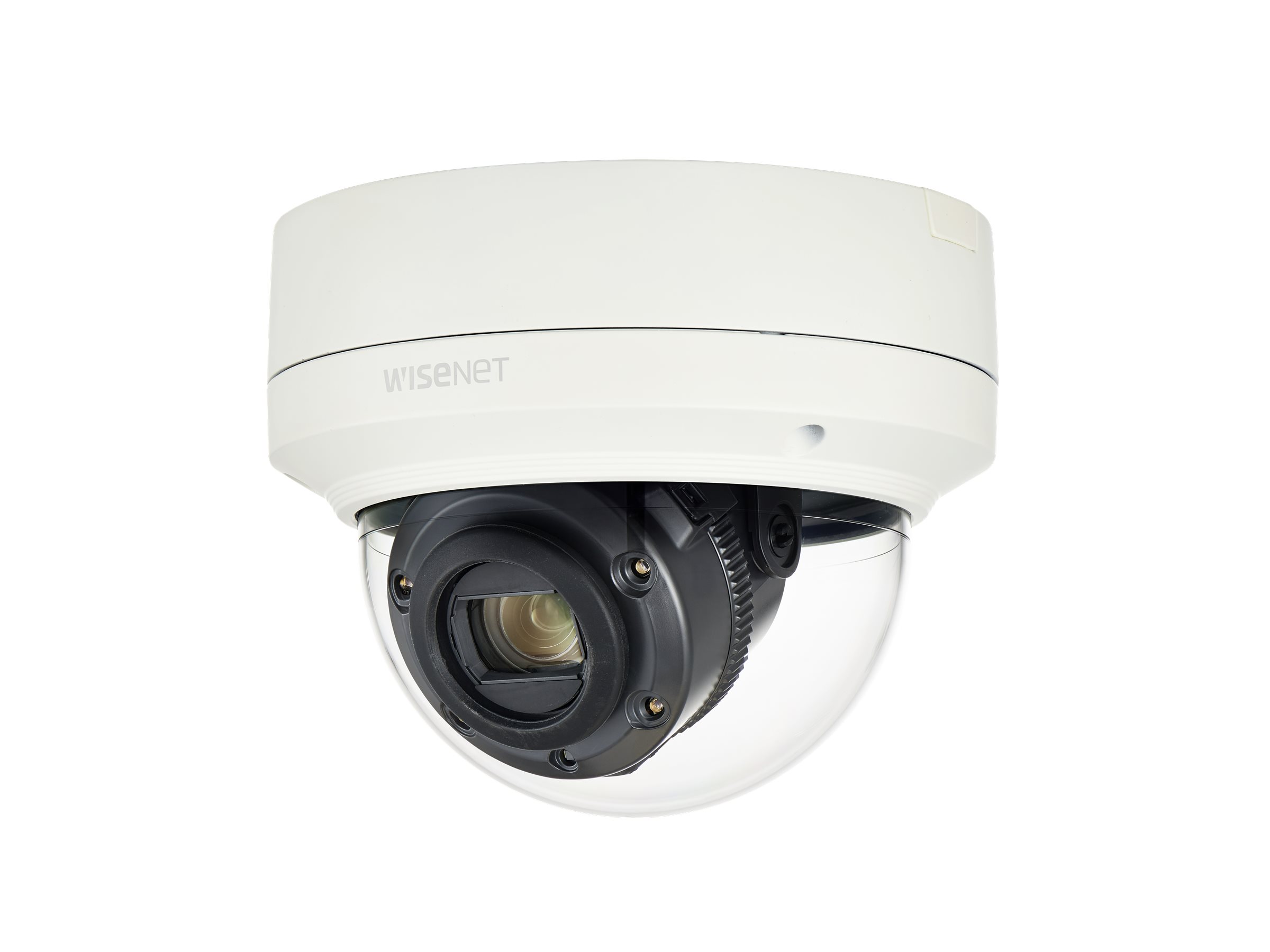

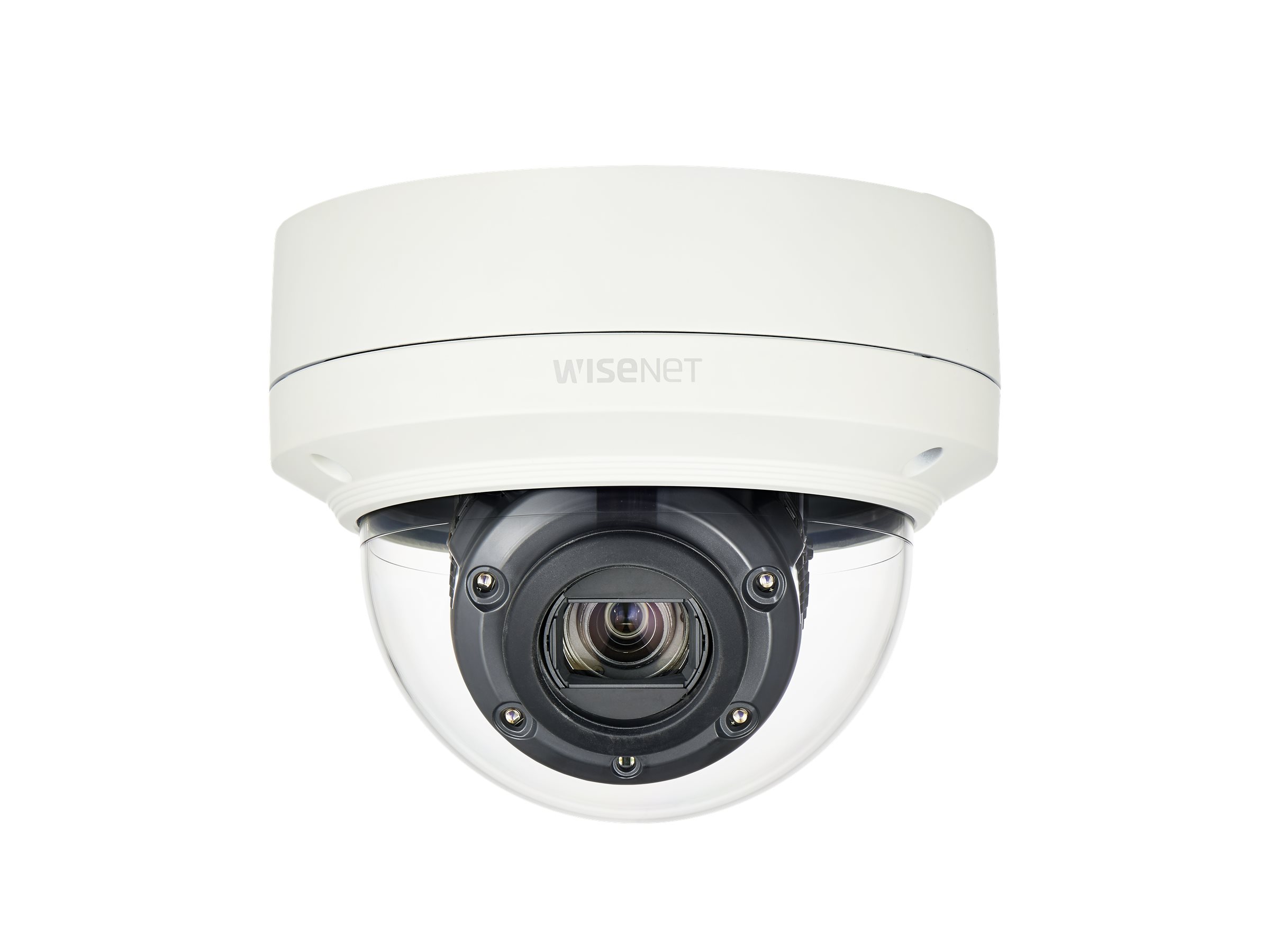

Hanwha Vision WiseNet X XNV-6120R/LPR

MSRP$2,000.00
$1,550.00
Hanwha Vision WiseNet X XNV-6120R/LPR
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • dome
  • outdoor
  • vandal-proof
  • color (Day&Night)
Hanwha Vision WiseNet X XNV-6120R/LPR
  • Network surveillance camera
  • dome
  • outdoor
  • vandal-proof
  • color (Day&Night)
  • 2.2 MP
  • 1920 x 1080
  • auto iris
  • motorized
  • audio
  • composite
  • LAN 10/100
  • MJPEG, H.264, H.265, MPEG-4 AVC
  • DC 12 V / AC 24 V / PoE Class 3
  Additional Details
Price: $1,550.00
MSRP: $2,000.00
Mfr Part #: XNV-6120R/LPR
SHI Part #: 43075619
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision WiseNet X XNV-6120R/LPR - Network surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 2.2 MP - 1920 x 1080 - auto iris - motorized - audio - composite - LAN 10/100 - MJPEG, H.264, H.265, MPEG-4 AVC - DC 12 V / AC 24 V / PoE Class 3
ManufacturerHANWHA VISION
MSRP$2,000.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth16 cm
Dimensions & Weight / Height12.845 cm
Dimensions & Weight / Weight995 g
Dimensions & Weight / Width16 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorBeige
Packaged Quantity1
Camera
Digital Video FormatMJPEG, H.264, H.265, MPEG-4 AVC
Digital Zoom24
Exposure Range2 sec - 1/12000 sec
FeaturesBacklight Compensation (BLC), white balance, progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, video analytics, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, digest authentication, License plate recognition (LPR), Samsung Super Noise Reduction (SSNRV), WiseStream II support, Unicast Streaming, Handover
Infrared Distance70 m
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.03 lux - color - F1.6
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
TypeColor - Day&Night - fixed - outdoor - vandal-proof
Video Capture1920 x 1080 @ 60 fps
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)0 - 90%
Expansion / Connectivity
Ports
  • Composite video
  • USB - Micro-USB Type B
  • LAN/power - RJ-45
  • Audio line-in/microphone
  • Audio line out
Supported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711, U-LAW
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth16 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height12.845 cm
Weight995 g
Width16 cm
Image Sensor
Effective Pixels1945 x 1097
Total Pixels1945 x 1109
Type2.2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, PIM-SM, LLDP
VideoComposite video
Lens Construction
Diagonal Field of View (degree)6.06 - 61.4
Focal Length5.2 mm - 62.4 mm
Focus AdjustmentAutomatic, manual
Horizontal Field of View (degree)5.3 - 54.58
Lens IrisF/1.6-3.0 auto iris (DC)
Min Focus Distance2.1 m
Optical Zoom12 x
TypeMotorized zoom
Vertical Field of View (degree)3 - 32.19
Miscellaneous
ColorIvory
Compliant StandardsIP67, IK10, IP66, IEEE 802.1x
Panning
Range (degree)0 to 354
Power
Power Device14 Watt
Power RequirementsDC 12 V / AC 24 V / PoE Class 3
Tilting
Range (degree)0 to 75
