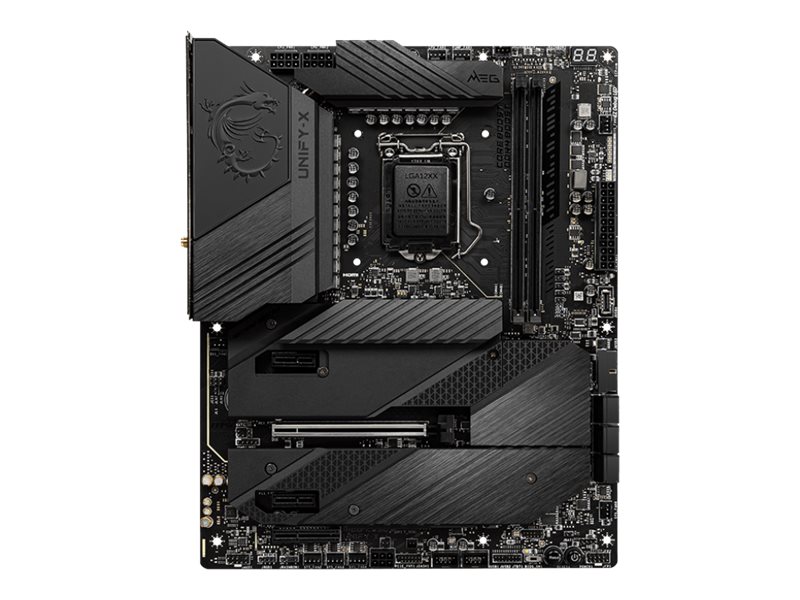

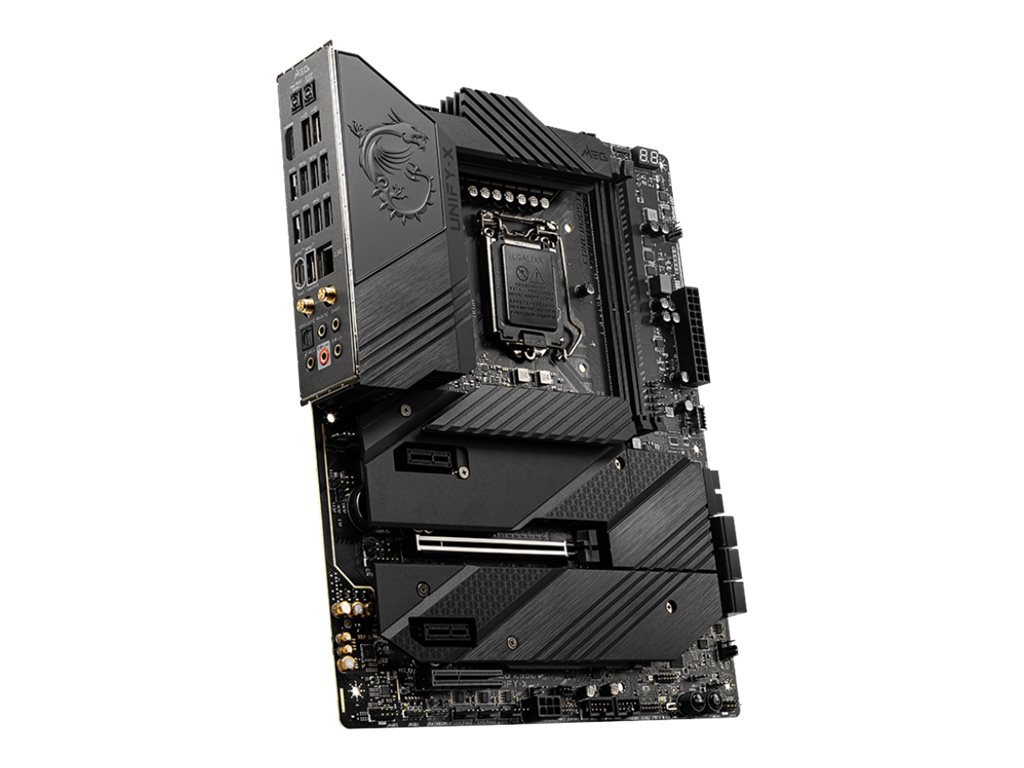

MSI MEG Z590 UNIFY-X
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MSI MEG Z590 UNIFY-X
- Motherboard
- ATX
- LGA1200 Socket
- Z590 Chipset
- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
- 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | Z590UNIFYX |
| SHI Part #: | 43138442 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MEG Z590 UNIFY-X - Motherboard - ATX - LGA1200 Socket - Z590 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| MSRP | $189.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | Intel Z590 |
| Mainboard / Processor Socket | LGA1200 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, 8 Layer PCB, MSI PCIe Steel Slot, 2oz Copper PCB, 16 Phase Power Design, M.2 Shield FROZR, MSI Core Boost, Game Boost, pre-mounted I/O shield, MSI Steel Armor, Double ESD Protection, 90A Smart Power Stage, Intel Optane Memory Ready, MSI Audio Boost 5, MSI Mystic Light |
| General | |
| Chipset Type | Intel Z590 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Intel I225-V / Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | FIPS, FISMA |
| Depth | 24.4 cm |
| Included Accessories | Wi-Fi antenna, Tuning controller, USB drive, case badge, MEG stickers, cable labels, 4 x M.2 screws, 4 x standoff for M.2 socket, screwdriver, cleaning brush, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4800 MHz (O.C.), 5600 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
