Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

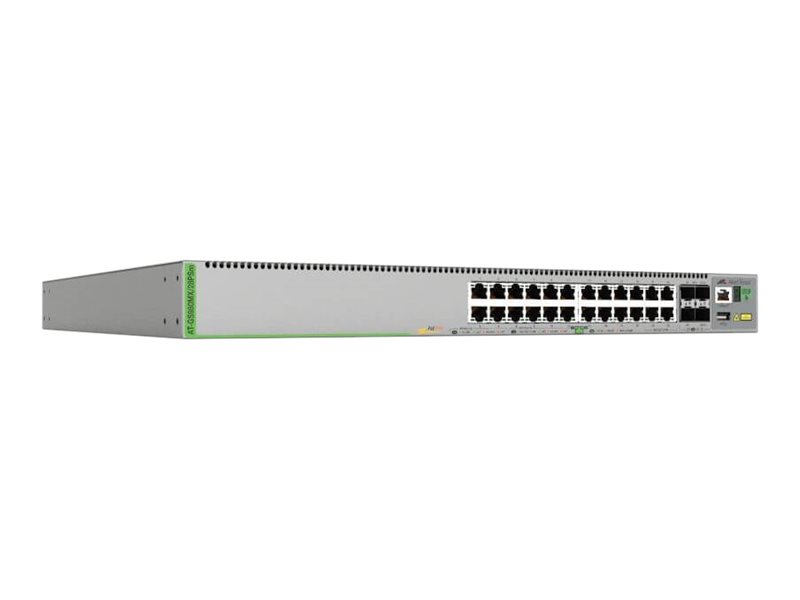

Allied Telesis CentreCOM AT-GS980MX/28PSm

MSRP$2,725.00
$2,127.00
Allied Telesis CentreCOM AT-GS980MX/28PSm
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 20 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
Allied Telesis CentreCOM AT-GS980MX/28PSm
  • Switch
  • L3
  • managed
  • 20 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • PoE+ (370 W)
  Additional Details
Price: $2,127.00
MSRP: $2,725.00
Mfr Part #: AT-GS980MX/28PSM-10
SHI Part #: 43521096
Category: Network switches
UNSPSC: 43222612
Manufacturer: Allied Telesis
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionAllied Telesis CentreCOM AT-GS980MX/28PSm - Switch - L3 - managed - 20 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE+ (370 W)
ManufacturerAllied Telesis
MSRP$2,725.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth42.1 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.6 kg
Dimensions & Weight / Width44.1 cm
Header / BrandAllied Telesis
Header / Country KitsUnited States
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth42.1 cm
Height4.4 cm
Weight5.6 kg
Width44.1 cm
Dimensions & Weight (Shipping)
Shipping Depth53.4 cm
Shipping Height12.8 cm
Shipping Weight7.6 kg
Shipping Width56.3 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 20 x 10/100/1000 Base-T (PoE+) RJ-45
  • 4 x 100/1000/2.5G/5G (PoE+) RJ-45
  • 4 x 1/10Gbit LAN SFP+
  • 1 x console RJ-45
  • 1 x USB Type A
General
Authentication MethodRADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Buffer capacity (MB): 1.5
  • Configurable VLANs: 4094
  • Priority queues: 8
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Device TypeSwitch - 28 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmDES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG
FeaturesFlow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP trap, DHCP client, MIB, MAC address lockout, GVRP, NAC, loop prevention, port isolation, SP, 802.1x authentication, VoIP support, IP source guard, EPSRing, VCStack, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC address authentication, NTP, Active Fiber Monitoring, AAA, IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, WRR, loopback detection, VLAN Tagging, BPDU Guard
Flash Memory256 MB
Jumbo Frame Support10KB
MAC Address Table Size16K entries
Max Units In A Stack4
Performance
  • Switching fabric bandwidth: 160 Gbps
  • Forwarding rate: 119 Mpps
  • Latency (10 Gbps): 1.63 µs
  • Latency (100 Mbps): 8.29 µs
  • Latency (1 Gbps): 7.63 µs
  • Latency (2.5 Gbps): 7.41 µs
  • Latency (5 Gbps): 4.97 µs
PoE Budget370 W
Ports20 x 10/100/1000 (PoE+) + 4 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
RAM1 GB DDR3 SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP
Routing ProtocolRIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR
Status IndicatorsPoE, link/activity, SFP+
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Cables Included1 x RJ-45 to DB-9 cable - 2 m
Compliant StandardsFCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A
Included Accessories4 bumper feet, power cord retention clip
LocalizationUnited States
Rack Mounting KitIncluded
Power
Installed Qty1
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
Software IncludedAlliedware Plus
