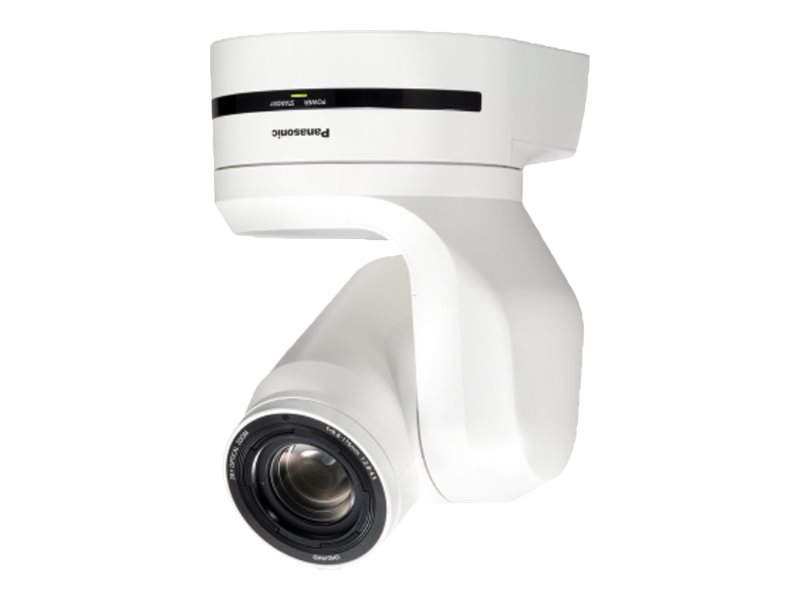

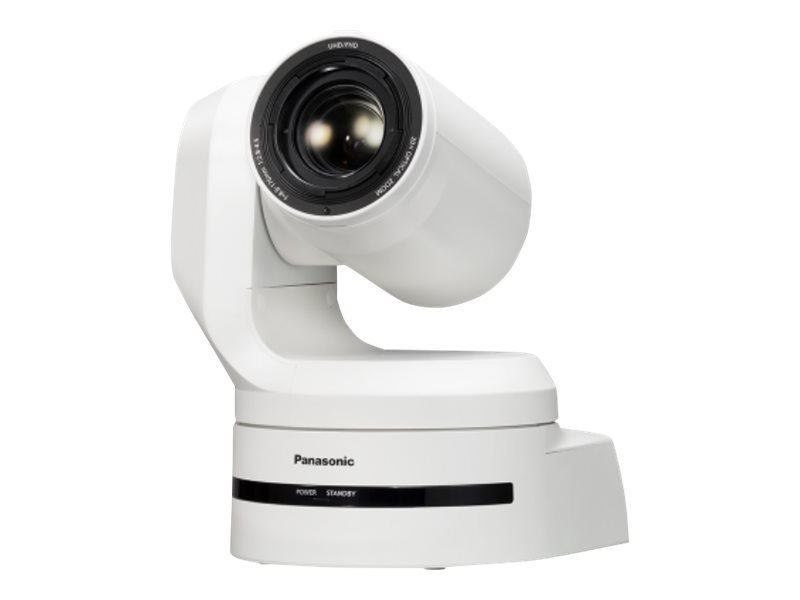

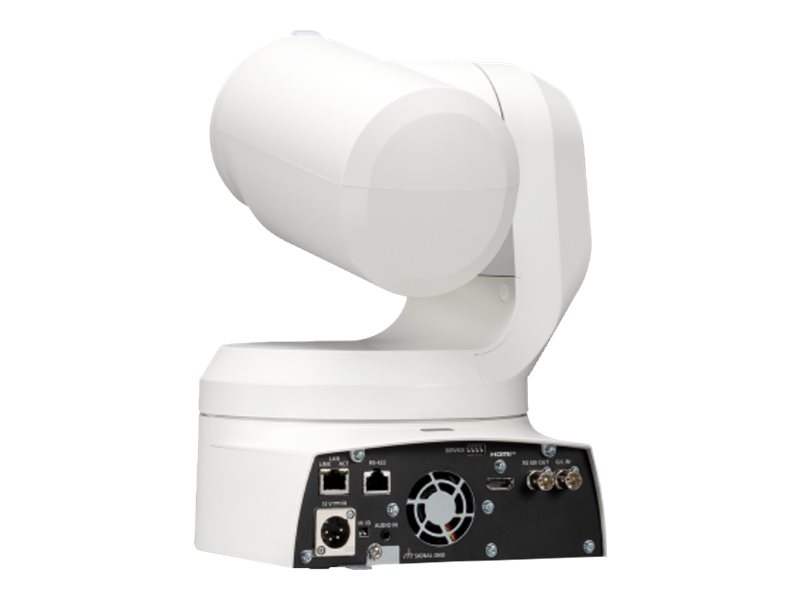

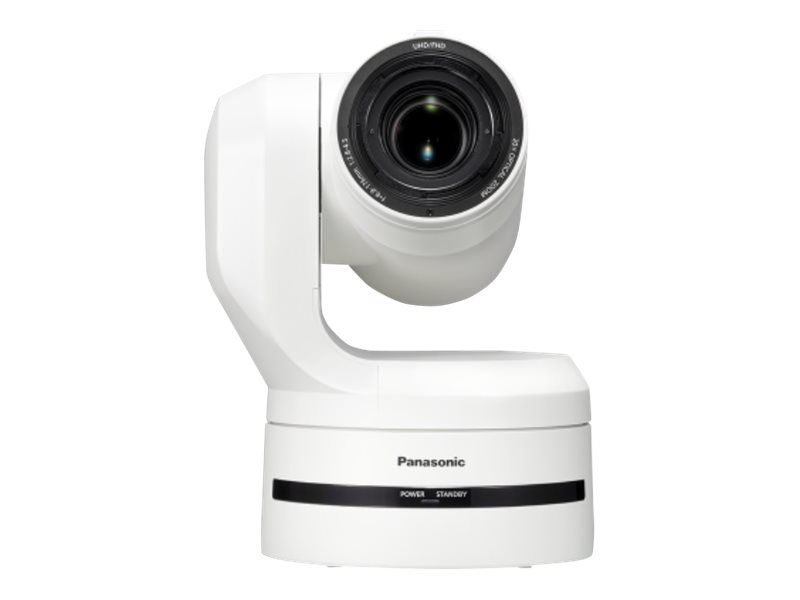

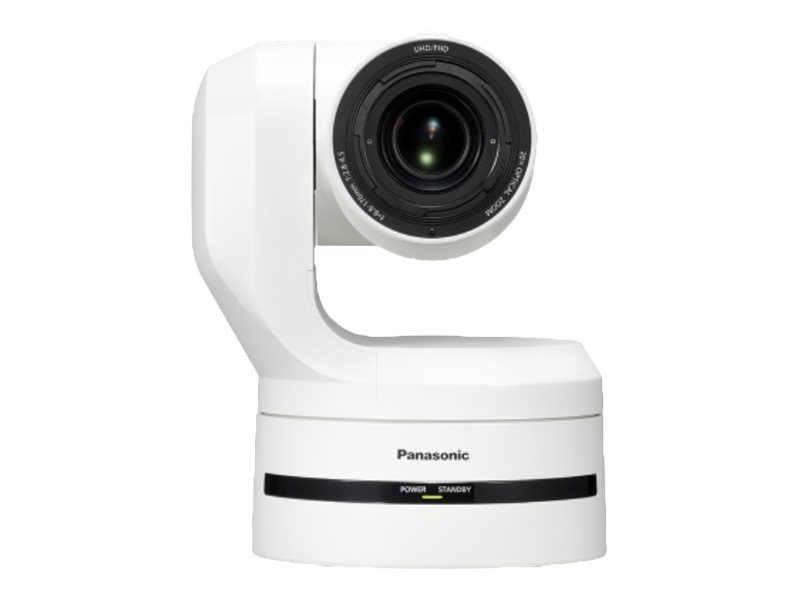

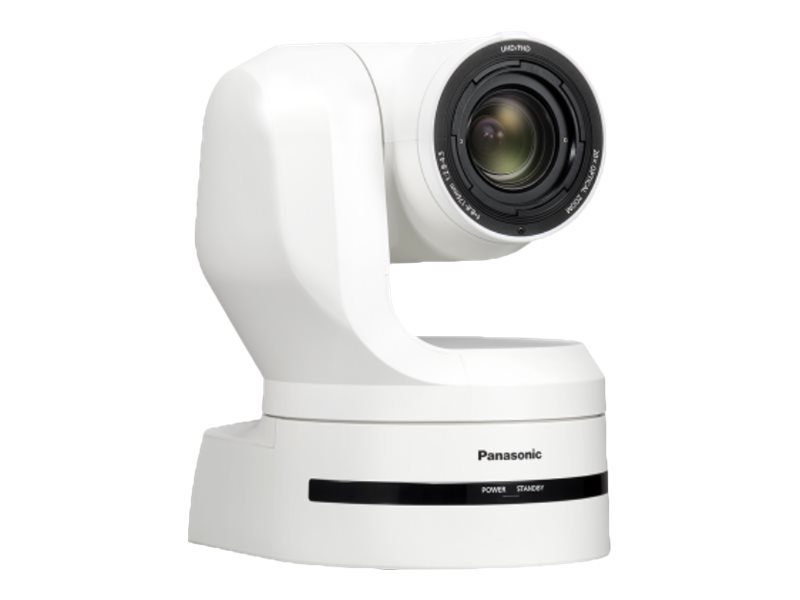

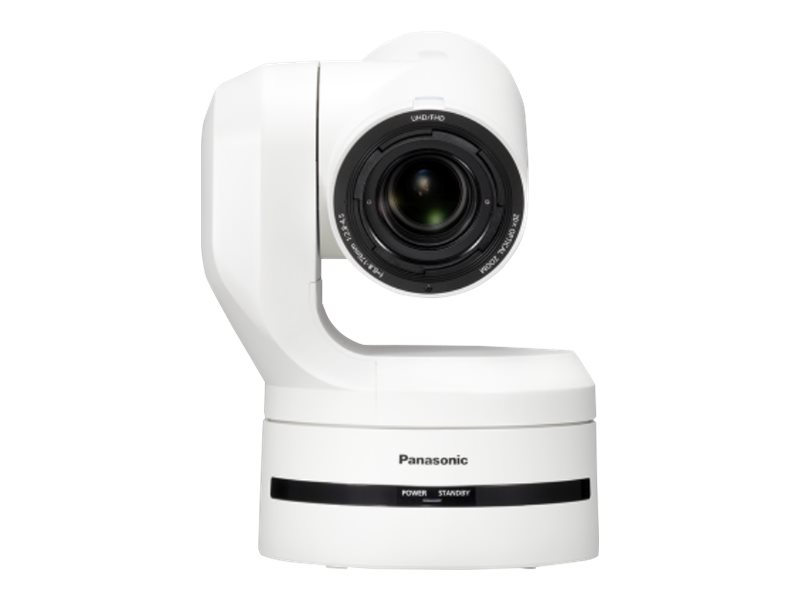

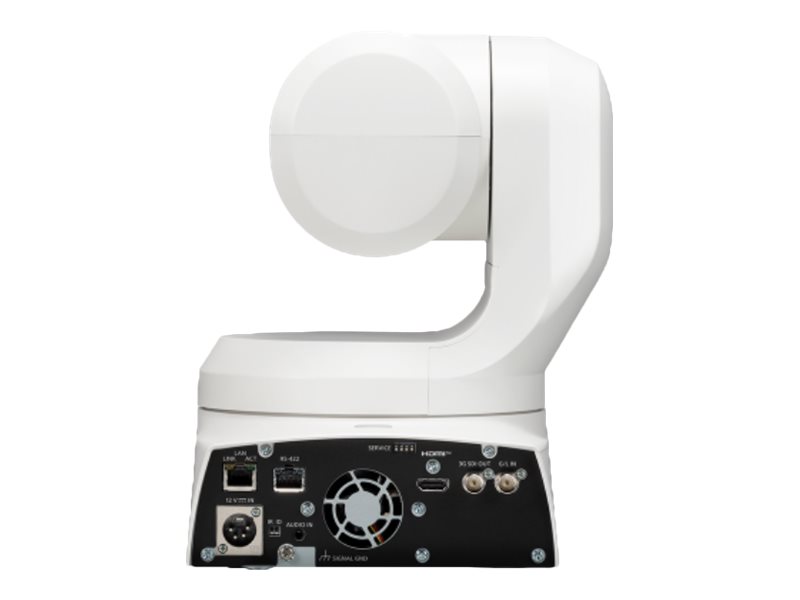

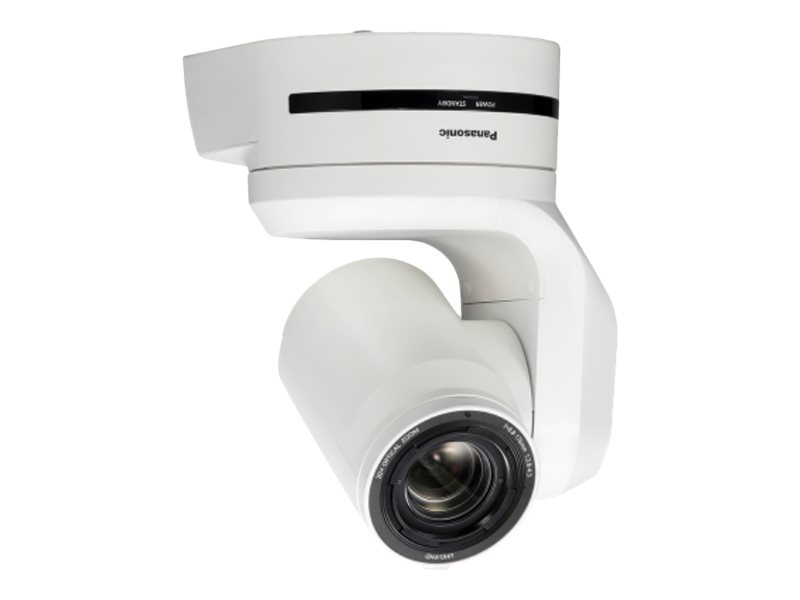

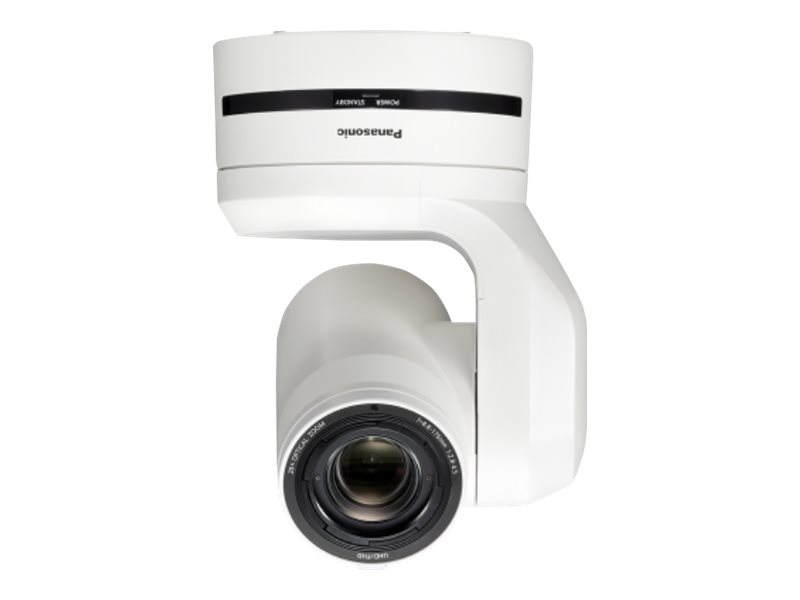

HD / 60P INTEGRATED PTZ W/ 20X ZOOM IN WHITE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HD / 60P INTEGRATED PTZ W/ 20X ZOOM IN WHITE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | AW-HE145WPJ |
| SHI Part #: | 43537542 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | HD / 60P INTEGRATED PTZ W/ 20X ZOOM IN WHITE |
| Manufacturer | Panasonic |
| MSRP | $7,998.82 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.9 cm |
| Dimensions & Weight / Height | 26.7 cm |
| Dimensions & Weight / Weight | 4.1 kg |
| Dimensions & Weight / Width | 21.3 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 10 |
| Exposure Range | 1/24 sec - 1/10000 sec |
| Features | Auto gain control, auto white balance |
| Frame Rate (max) | 60 frames per second |
| Horizontal Resolution (TV Lines) | 1000 |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Supported Image Formats | JPEG |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC, AAC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 21.9 cm |
| Device Type | Conference camera |
| Height | 26.7 cm |
| Weight | 4.1 kg |
| Width | 21.3 cm |
| Image Sensor | |
| Type | Full-HD MOS 1" |

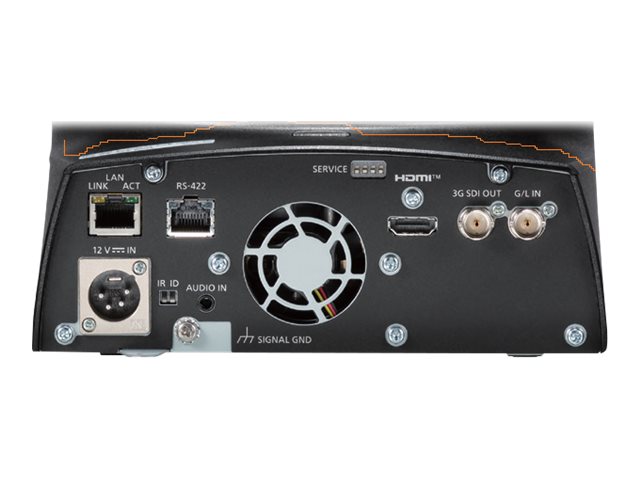

| Interfaces | |
| Control Interface | RS-422A |
| Network Interface | LAN |
| Network Protocols | NDI HX, RTMP, RTMPS, IPv4, IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, NTP, DHCP, MLD, ICMP, ARP, RTP, RTSP, RTCP, DNS, DDNS, IGMP, SRT |
| Video | HDMI, 3G-SDI |
| Lens Construction | |
| Diagonal Field of View (degree) | 4.6 - 82.8 |
| Focal Length | 8.8 mm - 176 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 4 - 75.1 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 10 cm |
| Optical Zoom | 20 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 2.3 - 46.7 |
| Miscellaneous | |
| Color | Pearl white |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Software / System Requirements | |
| OS Required | Windows 10, Apple macOS 11.0.1, Apple macOS 10.15, Apple macOS 10.14, Android, Apple iOS, Apple iPadOS |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
