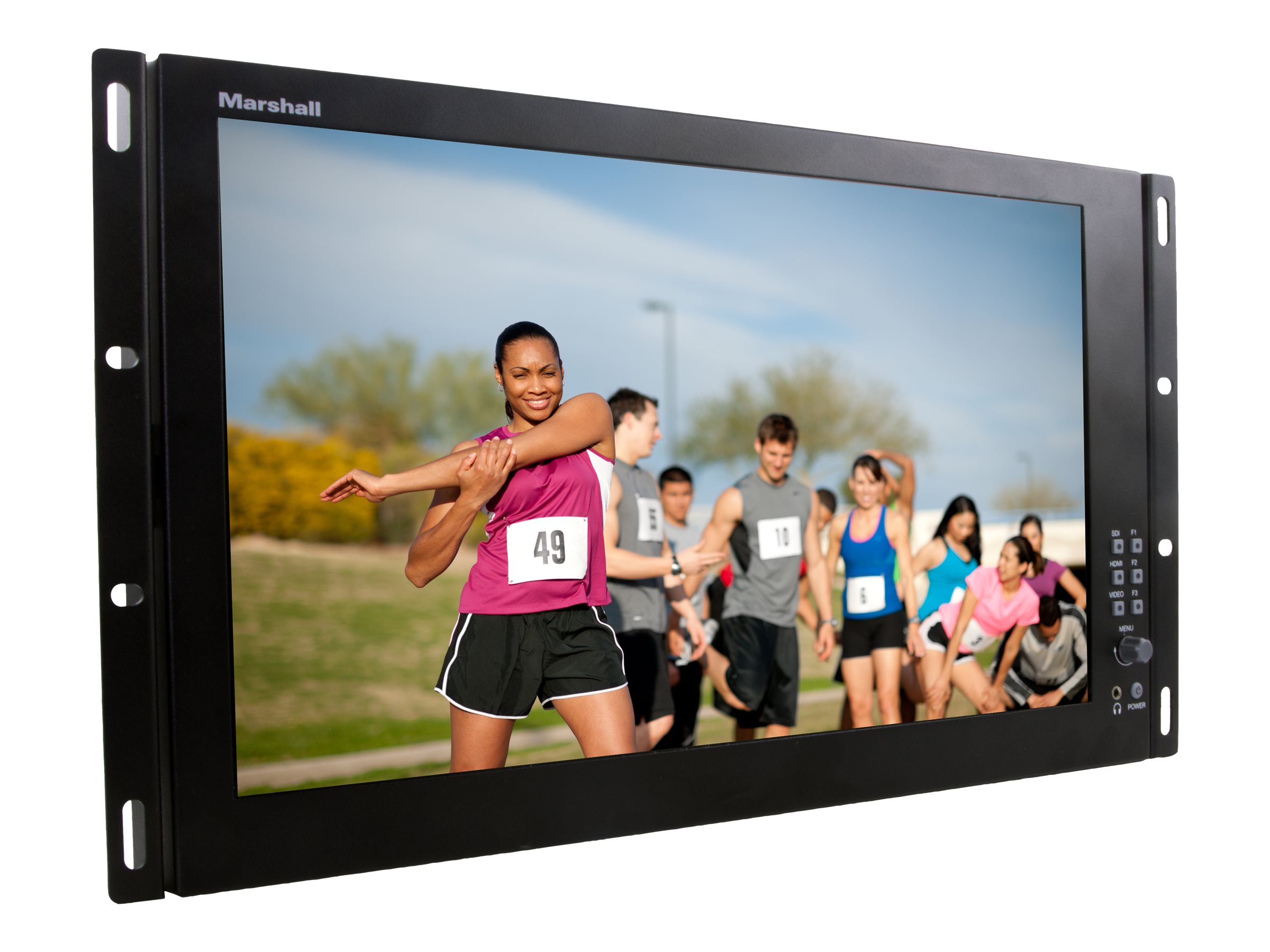

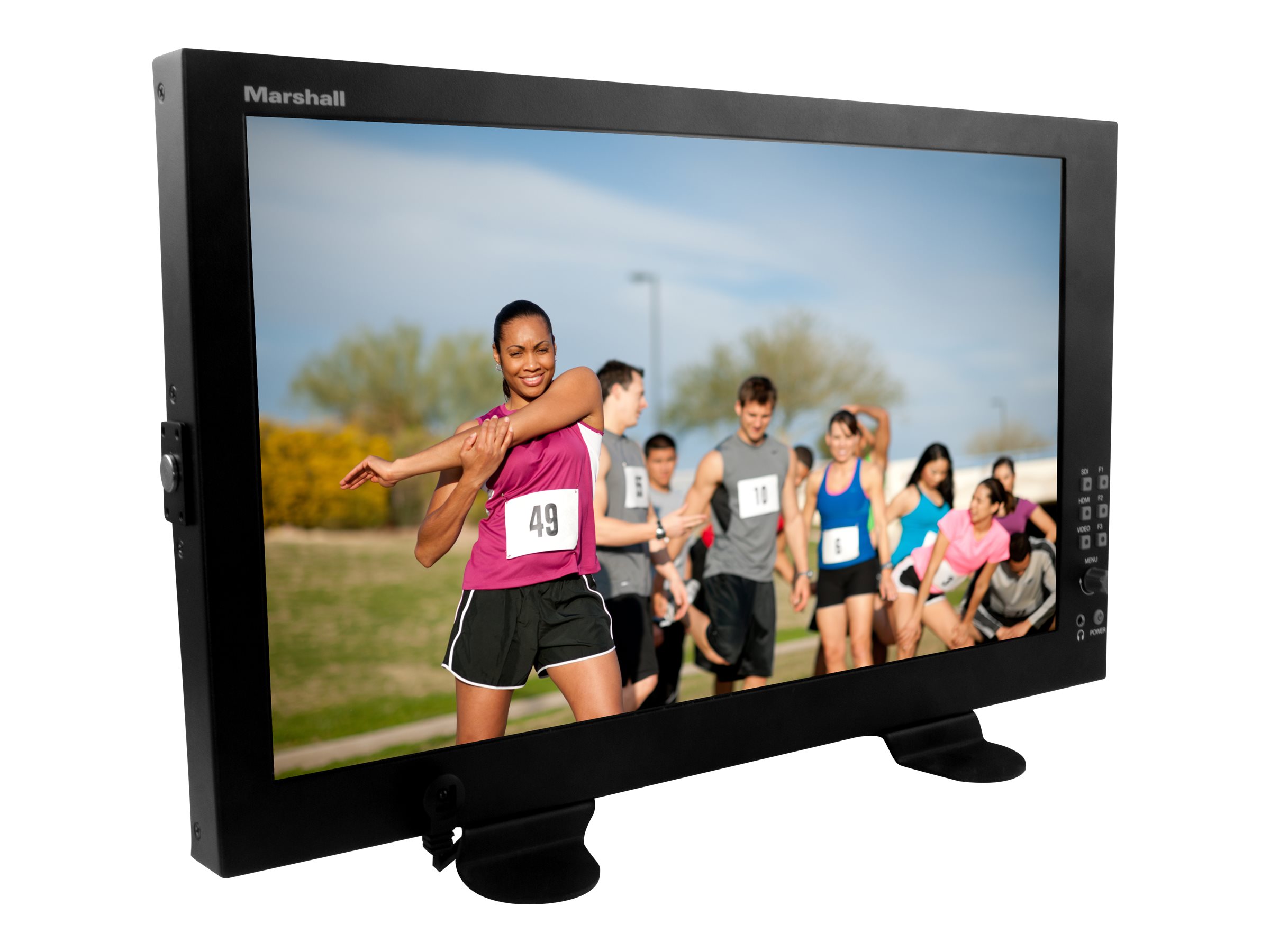

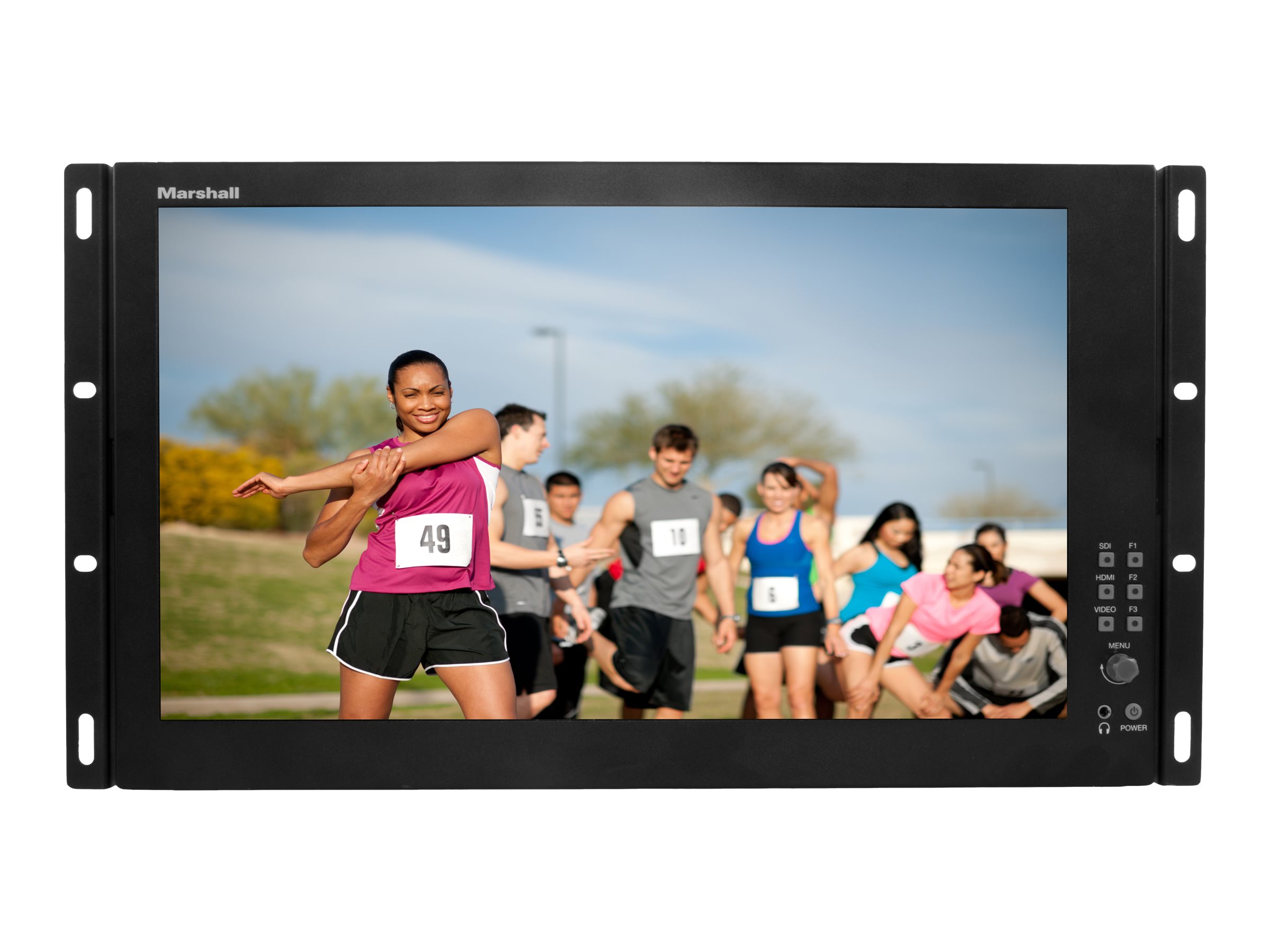

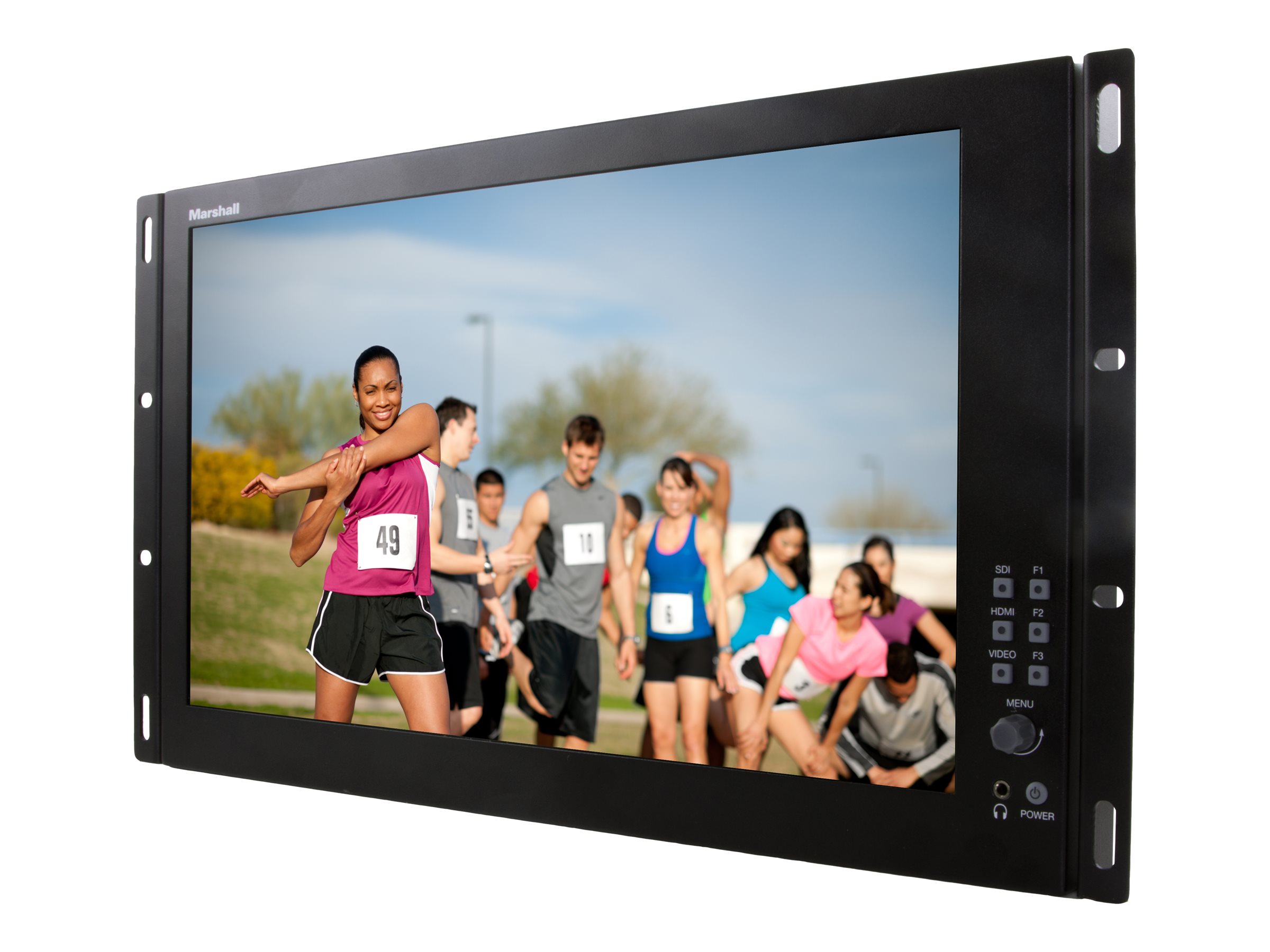

Marshall V-LCD173HR - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Marshall V-LCD173HR - LED monitor
- 17.3"
- rack-mountable / desktop
- 1920 x 1080 Full HD (1080p)
- 300 cd/m²
- 700:1

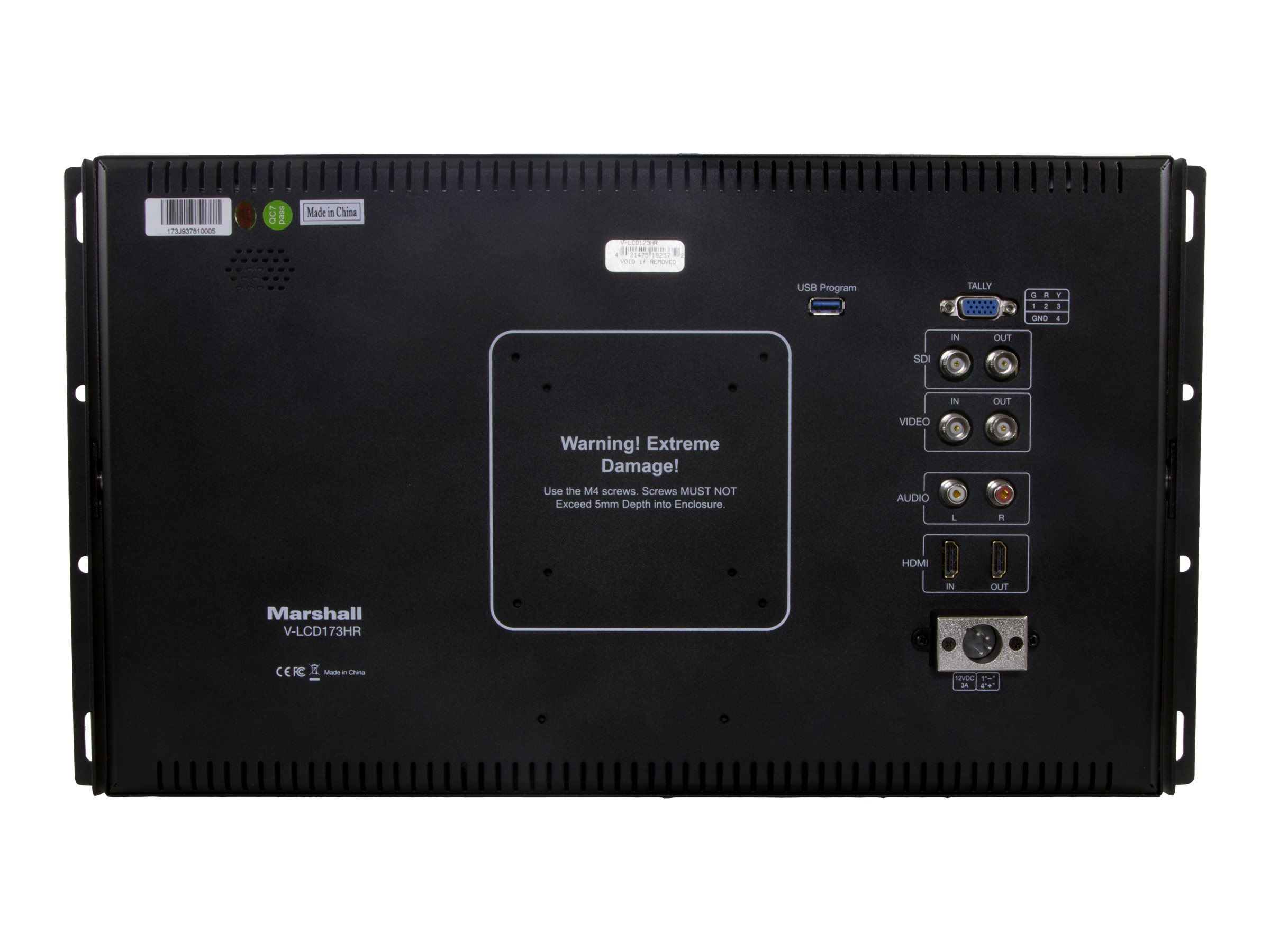

- HDMI, BNC (3G/HD/SD-SDI), BNC (composite)
- 6U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | V-LCD173HR |
| SHI Part #: | 43776962 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Marshall Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Marshall V-LCD173HR - LED monitor - 17.3" - rack-mountable / desktop - 1920 x 1080 Full HD (1080p) - 300 cd/m² - 700:1 - HDMI, BNC (3G/HD/SD-SDI), BNC (composite) - 6U |
| Manufacturer | Marshall Electronics |
| MSRP | $1,256.55 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.28 cm |
| Dimensions & Weight / Height | 26.7 cm |
| Dimensions & Weight / Weight | 3.6 kg |
| Dimensions & Weight / Width | 45 cm |
| Display / Diagonal Size | 17.3 in |
| Display / Diagonal Size (metric) | 43.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Marshall |
| Image Brightness | 300 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Backlight Technology | LED backlight |
| Brightness | 300 cd/m² |
| Color Support | 16 million colors |
| Contrast Ratio | 700:1 |
| Diagonal Size | 17.3" |
| Dimensions (WxDxH) | 45 cm x 3.28 cm x 26.7 cm |
| Display Type | LED-backlit LCD monitor |
| Features | Rec 709 color gamut, LED Tally lights, Image Flip, Pixel to Pixel, Histogram mode, Peaking Mode, False Color mode, Exposure Level mode |
| Height (Rack Units) | 6U |
| Horizontal Viewing Angle | 178 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Vertical Viewing Angle | 178 |
| Weight | 3.6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm, 100 x 100 mm |
| Miscellaneous | |
| Compliant Standards | FCC, WEEE |
| Features | For 19" server cabinets |
| Included Accessories | TALLY Connector |
| Power | |
| Power Consumption (Max) | 32 watt |
