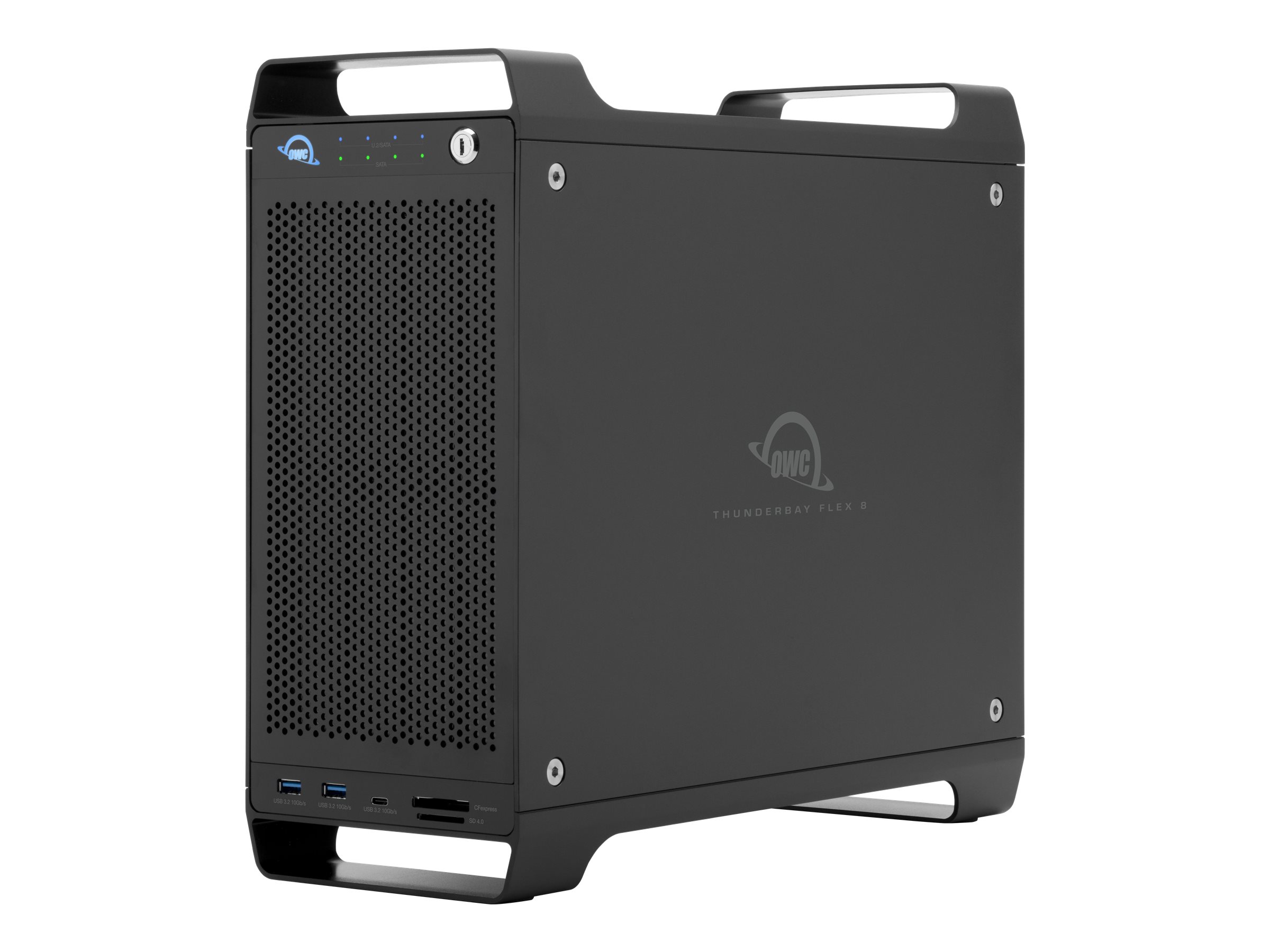

OWC ThunderBay Flex 8
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
OWC ThunderBay Flex 8
- Solid state / hard drive array
- 60 TB
- 8 bays (SATA-600)
- HDD 8 TB x 7 + SSD 4 TB x 1
- Thunderbolt 3 (external)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | OWCTB3F81N060 |
| SHI Part #: | 43856154 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Other World Computing |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | OWC ThunderBay Flex 8 - Solid state / hard drive array - 60 TB - 8 bays (SATA-600) - HDD 8 TB x 7 + SSD 4 TB x 1 - Thunderbolt 3 (external) |
| Manufacturer | Other World Computing |
| MSRP | $4,729.99 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 39 cm |
| Dimensions & Weight / Height | 34.9 cm |
| Dimensions & Weight / Width | 14.9 cm |
| Hard Drive / Capacity | 8 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | OWC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / HDD Array External Interface | Thunderbolt 3 |
| Storage / HDD Array External Interface Class | Thunderbolt |
| Storage / Total Array Capacity | 60 TB |
| Storage / Type | Solid state / hard drive array |
| Chassis | |
| Built-in Devices | Memory card reader, LED panel |
| Installed Devices / Modules Qty | 8 |
| Supported Devices / Modules Qty | 8 |
| Supported Drives | SATA-600 |
| Dimensions & Weight | |
| Depth | 39 cm |
| Height | 34.9 cm |
| Width | 14.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 0 (free) x hot-swap - 2.5" / 3.5" shared |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Color | Black |
| Hard Drive | |
| Capacity | 7 x 8 TB |
| Features | RAID 5 - factory configured, Enterprise |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Type | HDD - hot-swap |
| Hard Drive (2nd) | |
| Capacity | 1 x 4 TB |
| Interface Type | SATA 6Gb/s |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 3 cable |
| Compliant Standards | DisplayPort 1.4, FCC, VCCI, RCM, BSMI, UL |
| Features | Security lock slot (cable lock sold separately), key lock, aluminum enclosure, 120mm cooling fan, on/off switch |
| Included Accessories | 2 x keys, hex tool |
| Software Included | SoftRAID |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Storage | |
| HDD Array External Interface | Thunderbolt 3 |
| Total Array Capacity | 60 TB |
| Storage Controller | |
| Data Transfer Rate | 600 MBps |
| Interface Type | SATA 6Gb/s |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 4, RAID 5, RAID 0+1, JBOD |
| Type | RAID |
| System Requirements | |
| OS Required | Apple macOS Catalina 10.15.1 or later |
