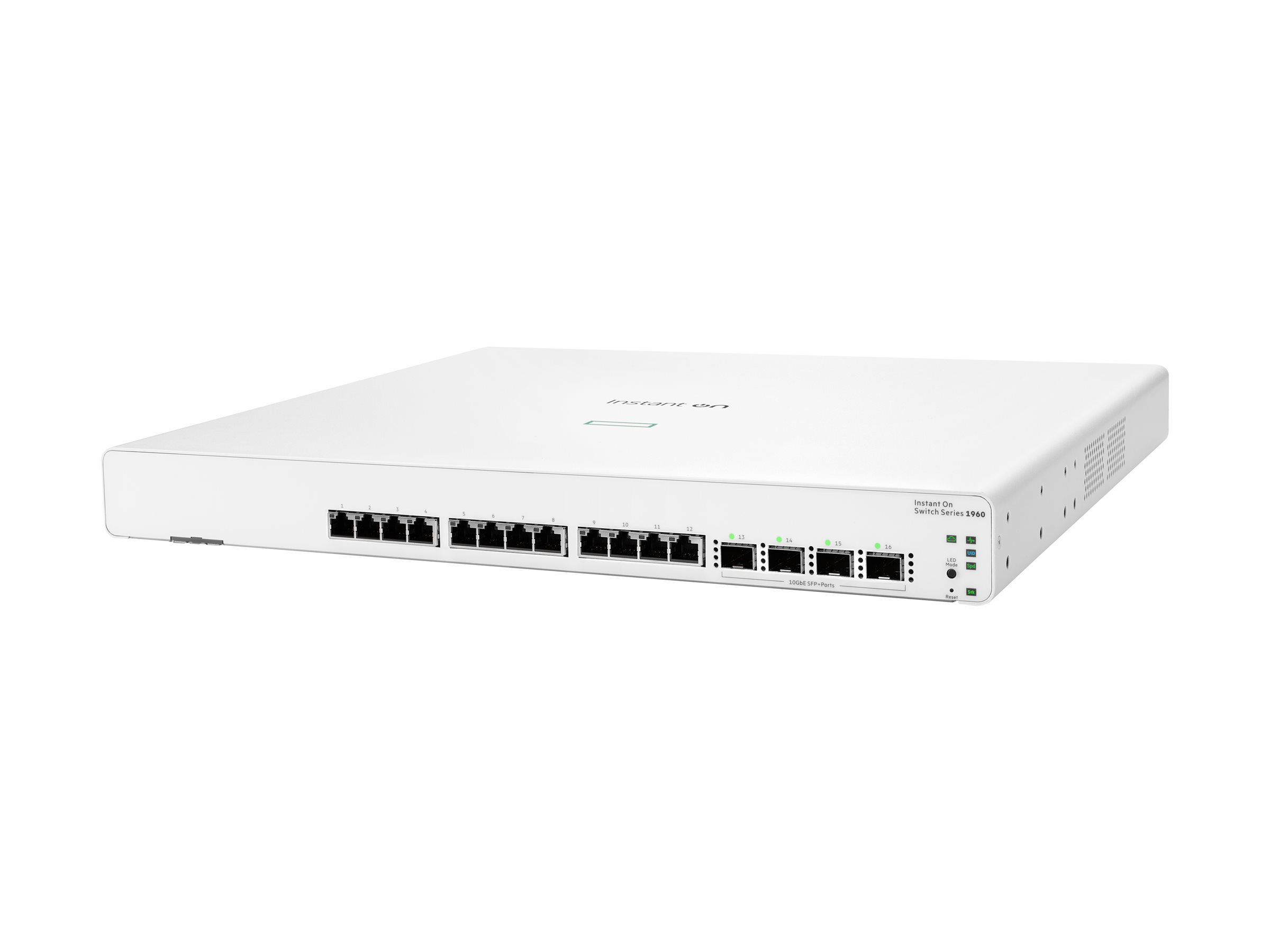

HPE Networking Instant On 1960 12XGT 4SFP+ Switch
MSRP$2,265.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Networking Instant On 1960 12XGT 4SFP+ Switch
- Switch
- L2+
- smart
- 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,265.00 |
| Mfr Part #: | JL805A#B2E |
| SHI Part #: | 44056122 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Network Cables
- 10GBase direct attach cable
- SFP+ (M) to SFP+ (M)
- 3 m
- twinaxial
- passive
- for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP $215.00
$171.00
- 10GBase direct attach cable
- SFP+ to SFP+
- 1 m
- for P/N: JL684B#ACC, JL686B#ACC
MSRP $72.00
$63.00
- 10GBase direct attach cable
- SFP+ to SFP+
- 3 m
- for P/N: JL684B#ACC, JL686B#ACC
MSRP $98.00
$83.00
Warranties
- Extended service agreement
- replacement (for complicated network devices)
- 3 years
- shipment
- 9x5
- response time: NBD
- Extended service agreement
- replacement (for complicated network devices)
- 5 years
- shipment
- 9x5
- response time: NBD
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Networking Instant On 1960 12XGT 4SFP+ Switch - Switch - L2+ - smart - 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $2,265.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35.05 cm |
| Dimensions & Weight / Height | 4.395 cm |
| Dimensions & Weight / Weight | 4.3 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Form Factor |
|
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 35.05 cm |
| Height | 4.395 cm |
| Weight | 4.3 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac |
| Device Type | Switch - 12 ports - L2+ - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | SSL |
| Features | Cloud managed, ACL support, VLAN support, DoS attack prevention, DHCP client, firmware upgradable, SNTP support, QoS, DSCP prioritization, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, flow control, MSTP support, RSTP support, STP support, auto voice VLAN, port mirroring, BPDU Filter, loop protection, IGMP snooping, MLD snooping, TPM, LLDP-MED, port based access control, Port Security, DHCP snooping, IP source guard, ARP filtering, Unicast Storm Control, Broadcast Storm Control, Multicast Storm Control, Energy Efficient Ethernet, DHCP relay, DHCP server, IPv6 support, ingress rate limiting, DNS client, protected ports, dual image support, ICMP, Cable Diagnostics Function |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Performance |
|
| Ports | 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ |
| Processor | 1: 2 GHz |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RADIUS, SCP, TFTP, RMON |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing |
| Status Indicators | Port status |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | Plug and Play, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, EN 60825-1 Class 1, IEC 60825-1 Class 1, EN 55032/CISPR 32 Class A, FCC CFR47 Part 15 A, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, CISPR 35, EN 55035, KN35, EN 61000-3-2, IEC 61000-3-2, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3, IEC 61000-3-3 |
| MTBF | 88.8 years |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 60 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
