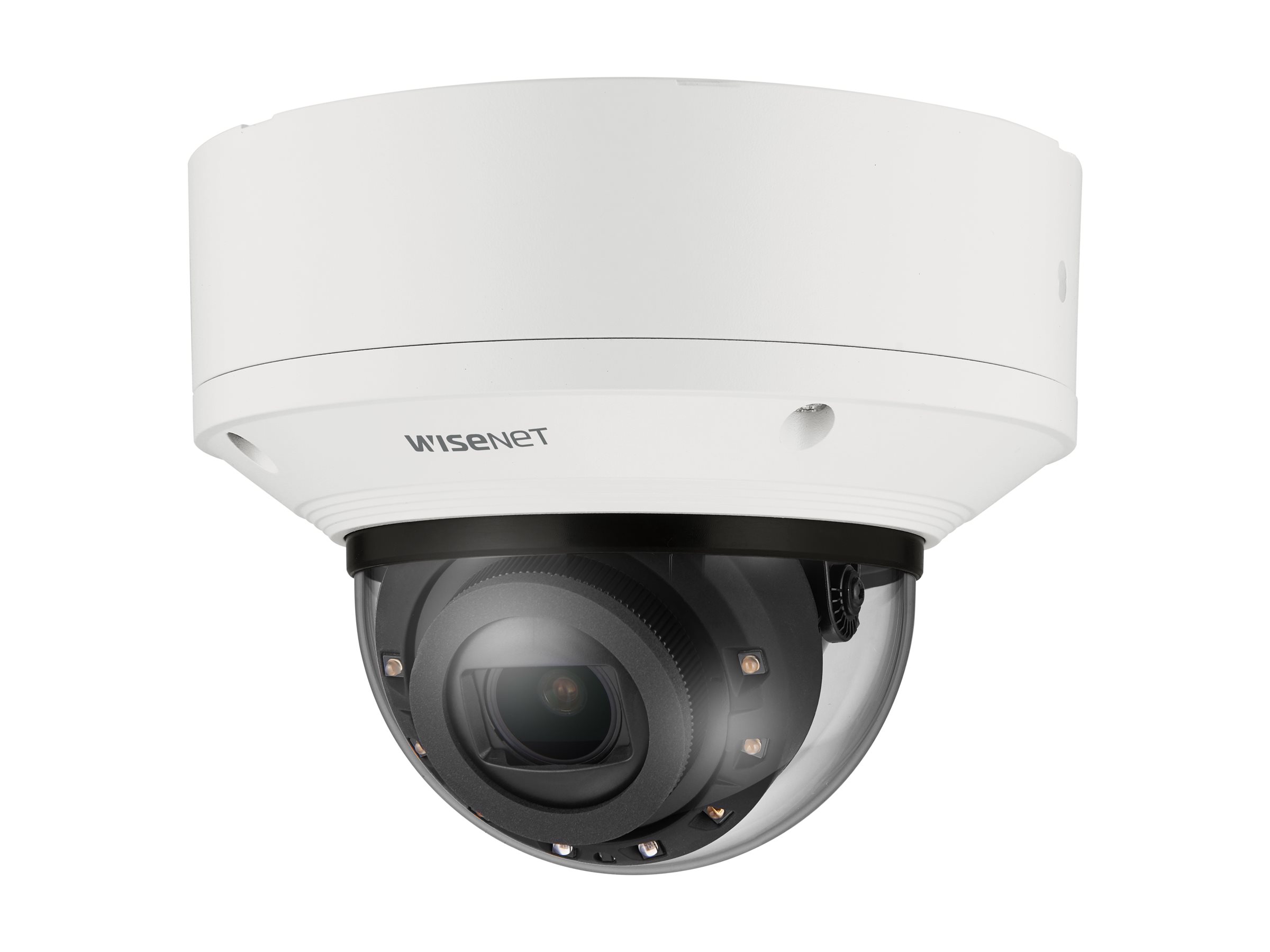

Hanwha Vision WiseNet X XND-C6083RV

MSRP$1,050.00
$814.00
Hanwha Vision WiseNet X XND-C6083RV
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • dome
  • indoor
  • vandal-proof
  • color (Day&Night)
Hanwha Vision WiseNet X XND-C6083RV
  • Network surveillance camera
  • dome
  • indoor
  • vandal-proof
  • color (Day&Night)
  • 2 MP
  • 1920 x 1080
  • auto iris
  • motorized
  • audio
  • LAN 10/100
  • MJPEG, H.264, H.265
  • DC 12 V / PoE Class 3
  Additional Details
Price: $814.00
MSRP: $1,050.00
Mfr Part #: XND-C6083RV
SHI Part #: 44236920
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision WiseNet X XND-C6083RV - Network surveillance camera - dome - indoor - vandal-proof - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3
ManufacturerHANWHA VISION
MSRP$1,050.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth16 cm
Dimensions & Weight / Height11.8 cm
Dimensions & Weight / Weight1.35 kg
Dimensions & Weight / Width16 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video FormatMJPEG, H.264, H.265
Exposure Range2 sec - 1/12000 sec
FeaturesBacklight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), tamper-detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Heat Map, Samsung Super Noise Reduction (SSNRV), WiseStream II support, DORI coverage, Vehicle Detection, Hallway View, built-in gyroscope, fog detection, motion detection, Unicast Streaming, Person Detection, ONVIF (Profile T) support, Virtual Line detection, Gain Control, WiseStream III support, WiseNR II, WiseIR
Flash Memory512 MB
Infrared Distance40 m
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.01 lux - color - F1.4 - shutter 1/30 sec
  • 0.001 lux - B&W - F1.4 - shutter 1/30 sec
  • 0 lux - B&W - infrared LEDs on
  • 0.02 lux - color - F1.4 - shutter 1/60 sec
  • 0.002 lux - B&W - F1.4 - shutter 1/60 sec
Motion DetectionYes
RAM2 GB
TypeColor - Day&Night - fixed - indoor - vandal-proof
Video Capture1920 x 1080 @ 60 fps
Environmental Parameters
Max Operating Temperature50 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)0 - 95% (non-condensing)
Expansion / Connectivity
Ports
  • LAN/power - RJ-45
  • USB - Micro-USB Type B
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711, U-LAW
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth16 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height11.8 cm
Weight1.35 kg
Width16 cm
Image Sensor
Type2 MP CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP
Lens Construction
Diagonal Field of View (degree)32 - 142.1
Focal Length2.8 mm - 12 mm
Focus AdjustmentAutomatic, manual
Horizontal Field of View (degree)27.9 - 119.5
Lens IrisF/1.4-3.6 auto iris (DC)
Min Focus Distance50 cm
Optical Zoom4.3 x
TypeMotorized zoom
Vertical Field of View (degree)15.7 - 62.8
Miscellaneous
ColorWhite, RAL 9003
Compliant StandardsNEMA Type 4X, IP67, IK10, IP52, IP66, IEC 62262 IK08, IEEE 802.3af, IEEE 802.1x, UL 2900-1
Panning
Range (degree)0 to 360
Power
Power Device12.95 Watt
Power RequirementsDC 12 V / PoE Class 3
Tilting
Range (degree)-45 to +75
