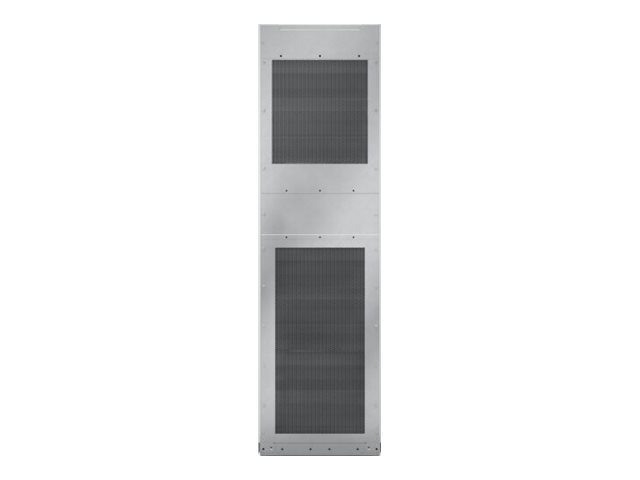

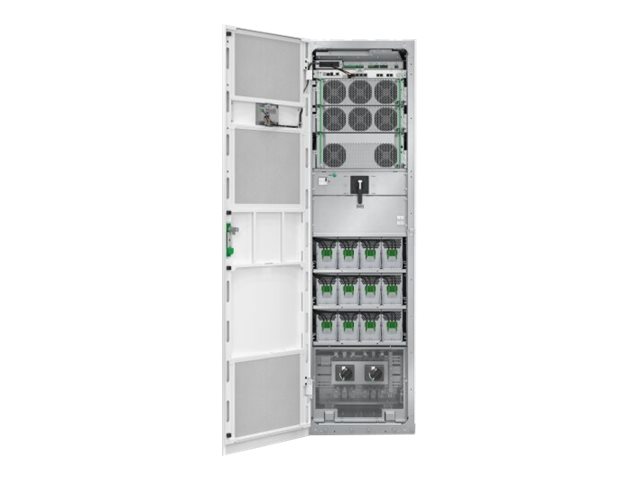

Schneider Electric Galaxy VS GVSUPS20K100B3H
MSRP$100,970.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Schneider Electric Galaxy VS GVSUPS20K100B3H
- UPS
- AC 480 V
- 20 kW
- 20000 VA
- 3-phase
- white
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $100,970.00 |
| Mfr Part #: | GVSUPS20K100B3H |
| SHI Part #: | 44274651 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Schneider Electric Galaxy VS GVSUPS20K100B3H - UPS - AC 480 V - 20 kW - 20000 VA - 3-phase - white |
| Manufacturer | APC by Schneider Electric |
| MSRP | $100,970.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 84.7 cm |
| Dimensions & Weight / Height | 197 cm |
| Dimensions & Weight / Weight | 877 kg |
| Dimensions & Weight / Width | 55 cm |
| Header / Brand | Schneider |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 20000 VA |
| Power Device / Voltage Required | AC 480 V |
| Product Type | UPS |
| Battery | |
| Quantity | 2 battery strings (installed) / 3 (supported) |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 84.7 cm |
| Height | 197 cm |
| Weight | 877 kg |
| Width | 55 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 90 cm |
| Shipping Height | 200 cm |
| Shipping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 65 dBA |
| General | |
| Color | White |
| Device Type | UPS - external |
| Miscellaneous | |
| Compliant Standards | IP20 |
| Features | Built-in static bypass, touch screen LCD display, audible alarm, visible alarm |
| Included Accessories | Dust filter |
| Power Device | |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Voltage | AC 480 V |
| Input Voltage Range | AC 432 - 528 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 400 V ± 1% - 60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 20 kW / 20000 VA |
| Power Factor (PF) | 0.7 |
| Total Harmonic Distortion (THD) | 1 % |
