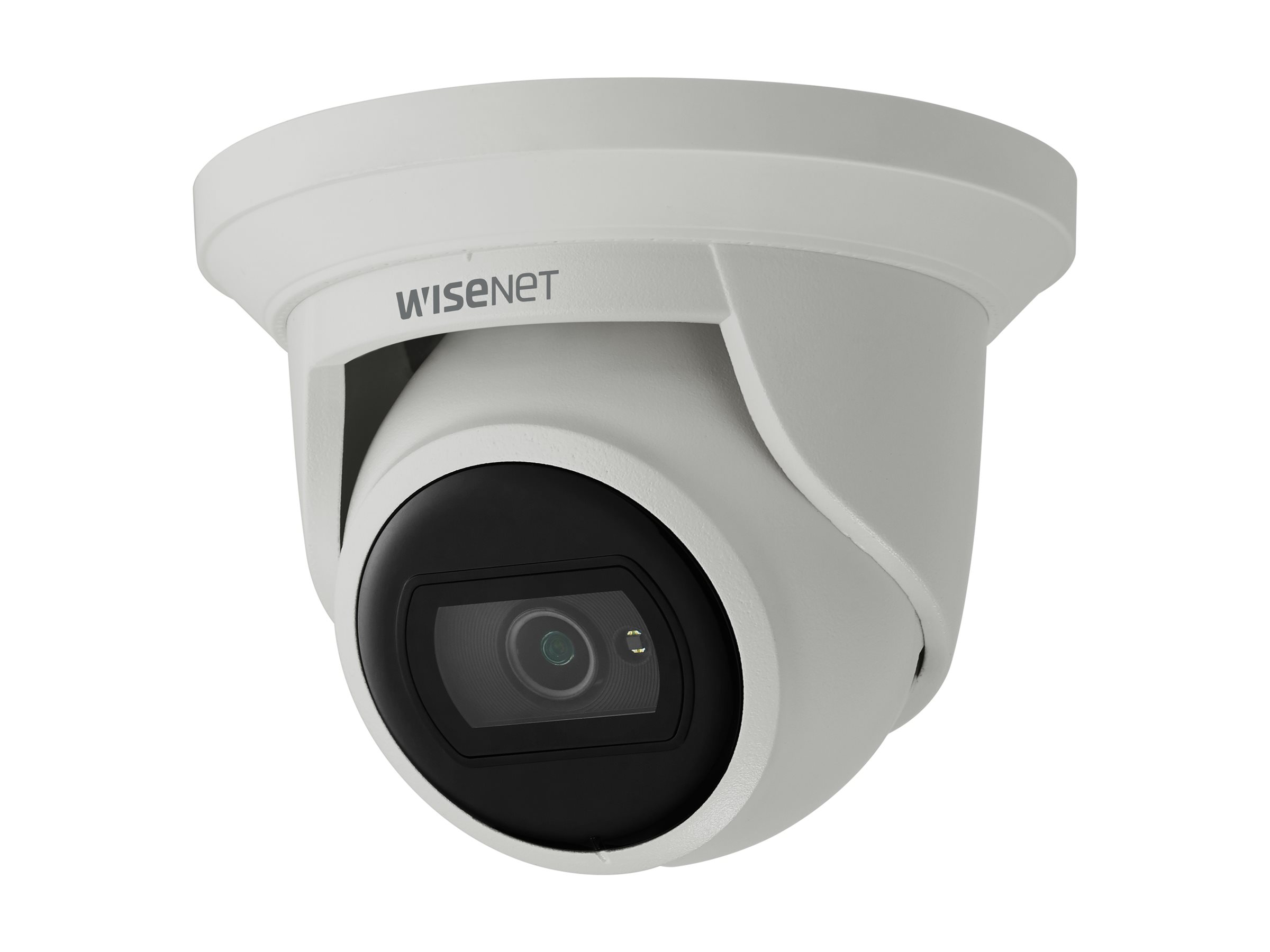

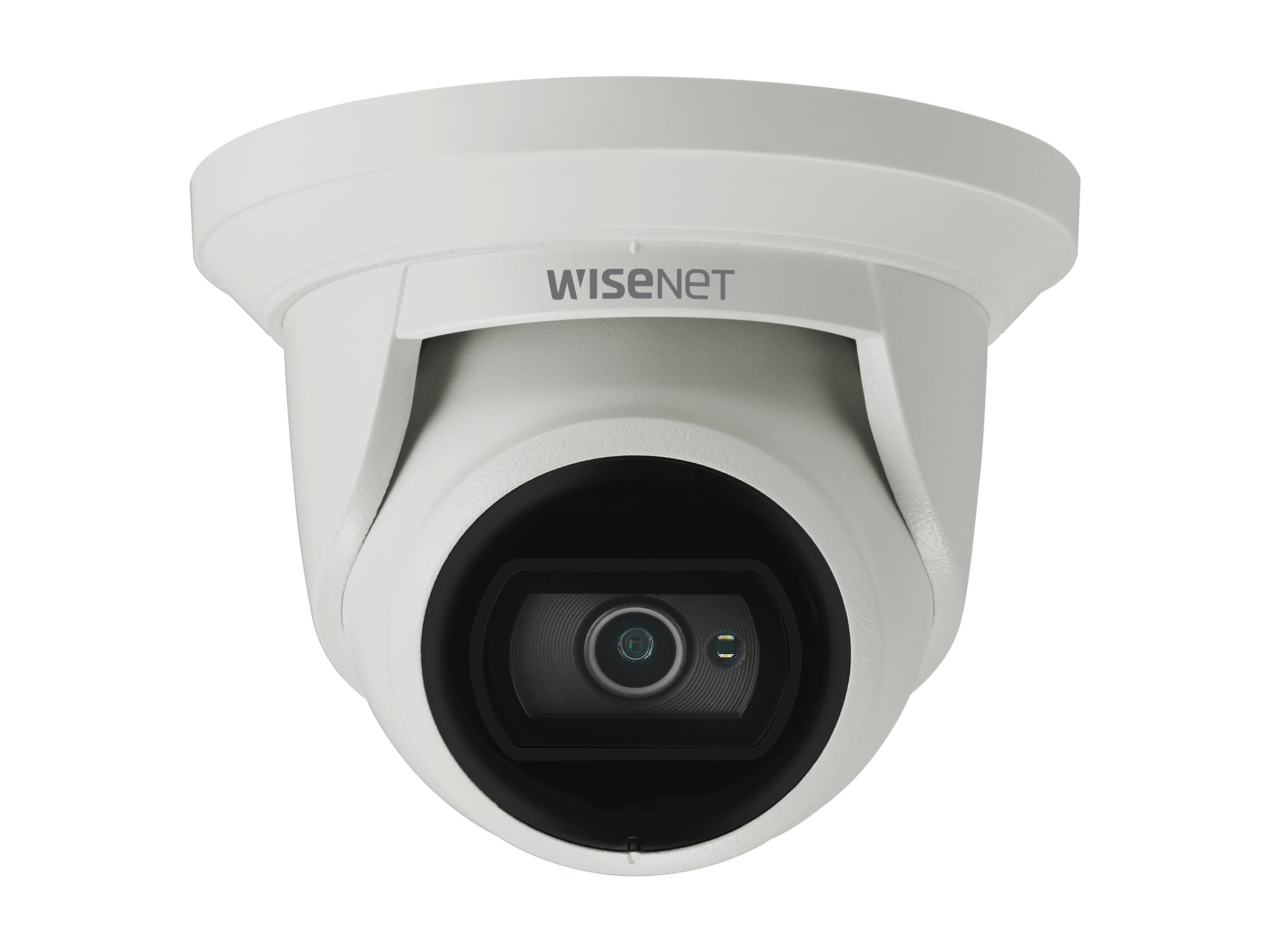

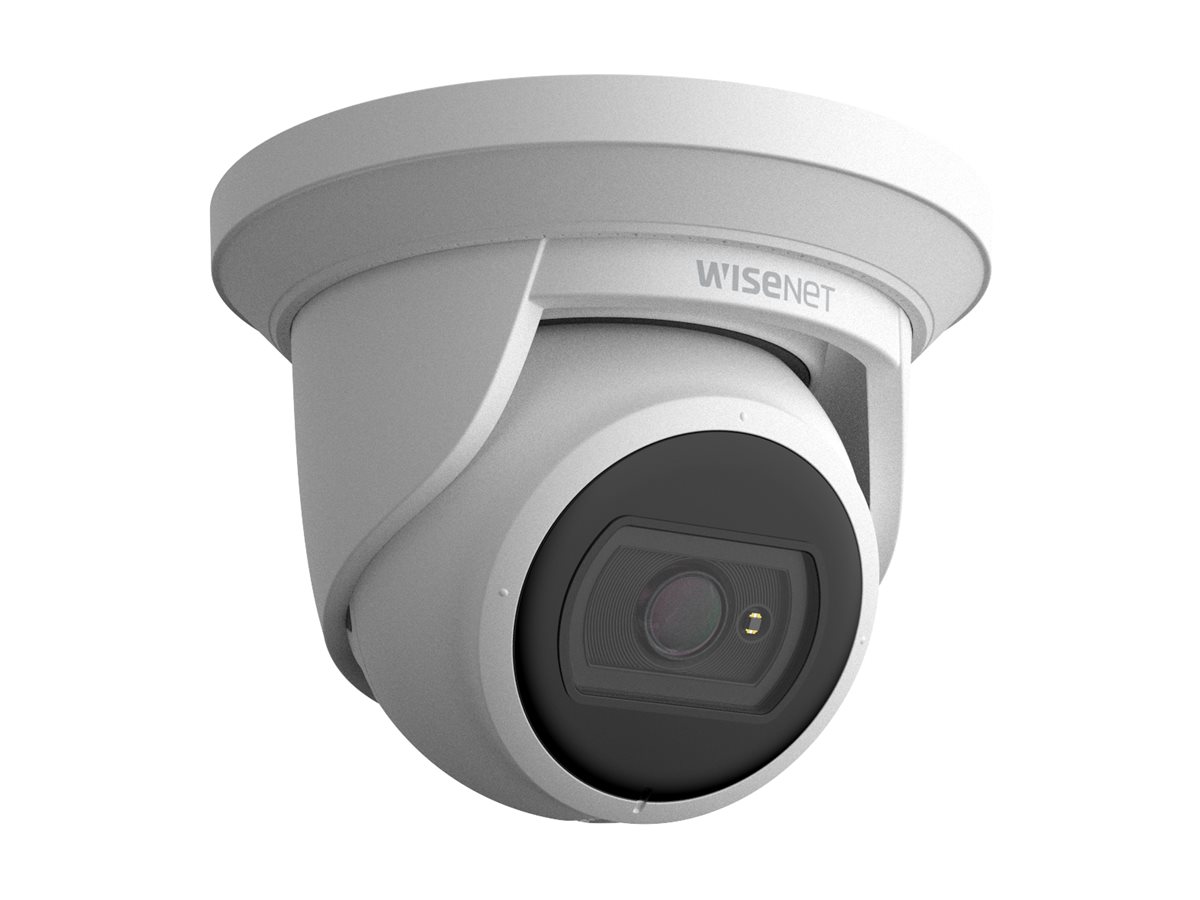

Hanwha Vision WiseNet ANE-L6012R
MSRP$287.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet ANE-L6012R
- Network surveillance camera
- pan / tilt
- turret
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- LAN 10/100
- H.264, H.265, MJPEG
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $287.00 |
| Mfr Part #: | ANE-L6012R |
| SHI Part #: | 44889471 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet ANE-L6012R - Network surveillance camera - pan / tilt - turret - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - LAN 10/100 - H.264, H.265, MJPEG - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $287.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.5 cm |
| Dimensions & Weight / Height | 8.74 cm |
| Dimensions & Weight / Weight | 630 g |
| Dimensions & Weight / Width | 12.5 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | H.264, H.265, MJPEG |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Wide Dynamic Range (WDR), auto ICR, Privacy Mask Function, Motion Detection Technology, Lens Distortion Compensation (LDC), image flip, image mirror, auto gain control, auto white balance, tamper-detection, Hallway View, anti-flicker, Virtual Line detection, notification picture to FTP, notification picture to E-mail, trigger recording, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, IP address filtering, Unicast Streaming, Multicast Streaming, direction detection, entrance / exit detection, cross line detection, WiseStream II support |
| Flash Memory | 256 MB |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - pan / tilt |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 12.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Turret |
| Height | 8.74 cm |
| Weight | 630 g |
| Width | 12.5 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 126.7 |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 107.7 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 1.1 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 59 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IP67, IK10, IEEE 802.3af |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 4.8 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
