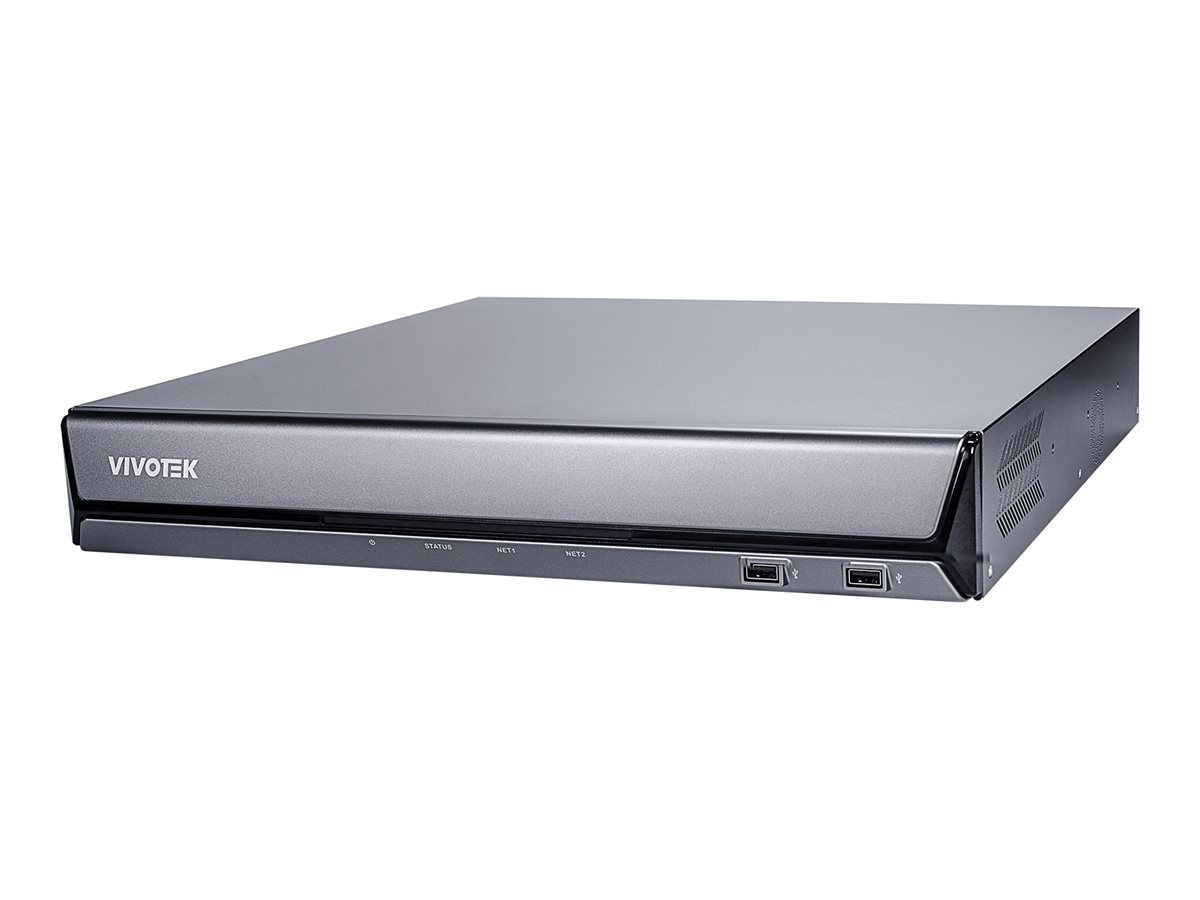

Vivotek V Series ND9542P
MSRP$1,866.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek V Series ND9542P
- NVR
- 32 channels
- networked
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,866.00 |
| Mfr Part #: | ND9542P |
| SHI Part #: | 45682643 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Vivotek V Series ND9542P - NVR - 32 channels - networked |
| Manufacturer | Vivotek |
| MSRP | $1,866.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 42.1 cm |
| Dimensions & Weight / Height | 6.6 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm input x 16, alarm output x 8 |
| Audio Input Ports | Mini-phone 3.5 mm x 1 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 1 |
| Video Input Ports | RJ-45 x 2 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Dimensions & Weight | |
| Comments | Without HDD |
| Depth | 42.1 cm |
| Height | 6.6 cm |
| Weight | 4.6 kg |
| Width | 43.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| General | |
| Compliant Standards | NDAA, IEEE 802.3at, IEEE 802.3af, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726 |
| Device Type | NVR |
| Image Resolution | 3840x2160, 1920x1080, 1280x720 |
| OS Provided | Linux |
| Software Included (Y) | VIVOCloud App |
| Video Channels | 32 |
| Warranty | 3 years |
| Hard Drive | |
| Interface | Serial ATA |
| Quantity Supported | 4 |
| Networking | |
| DDNS Support | Yes |
| Features | Hardware watchdog, Disk S.M.A.R.T. Scan, ONVIF Profile S |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | FTP, IPv4, IPv6, TCP/IP, HTTPS, HTTP, UPnP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, NTP |
| Power | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | Full screen, 2 split screens, 4 split screens, 9 split screens, 5 split screens, 6 split screens, 7 split screens, 13 split screens, 16 split screens, 32 split screens |
| Features | Power over Ethernet (PoE), RAID 0 support, RAID 1 support, RAID 5 support, Pan/Tilt/Zoom support, Fisheye Dewarp function, Cybersecurity Management, e-mail alarm notifications, motion detection, camera tampering, video loss detection, vehicle detection, human detection, Line Crossing Detection, intrusion detection, loitering detection, VCA Counting Solution support, Smart VCA Event Search, Smart Search II, Trend Micro IoT Security |
| Frame Rate (Record) | 360 fps, 90 fps |
| Networked | Yes |
| Playback Search | Alarm, date/time, event |
| Record Events | Motion detection, tamper detection, video loss |
| Video Recording Resolution | 1920x1080, 20 Megapixels, 3840x2160 |
- Panoramic camera
- outdoor, indoor
- water resistant / vandal resistant
- color (Day&Night)
- 8 MP
- 4864 x 1632
