Fortinet FortiSwitch 2048F
MSRP$25,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

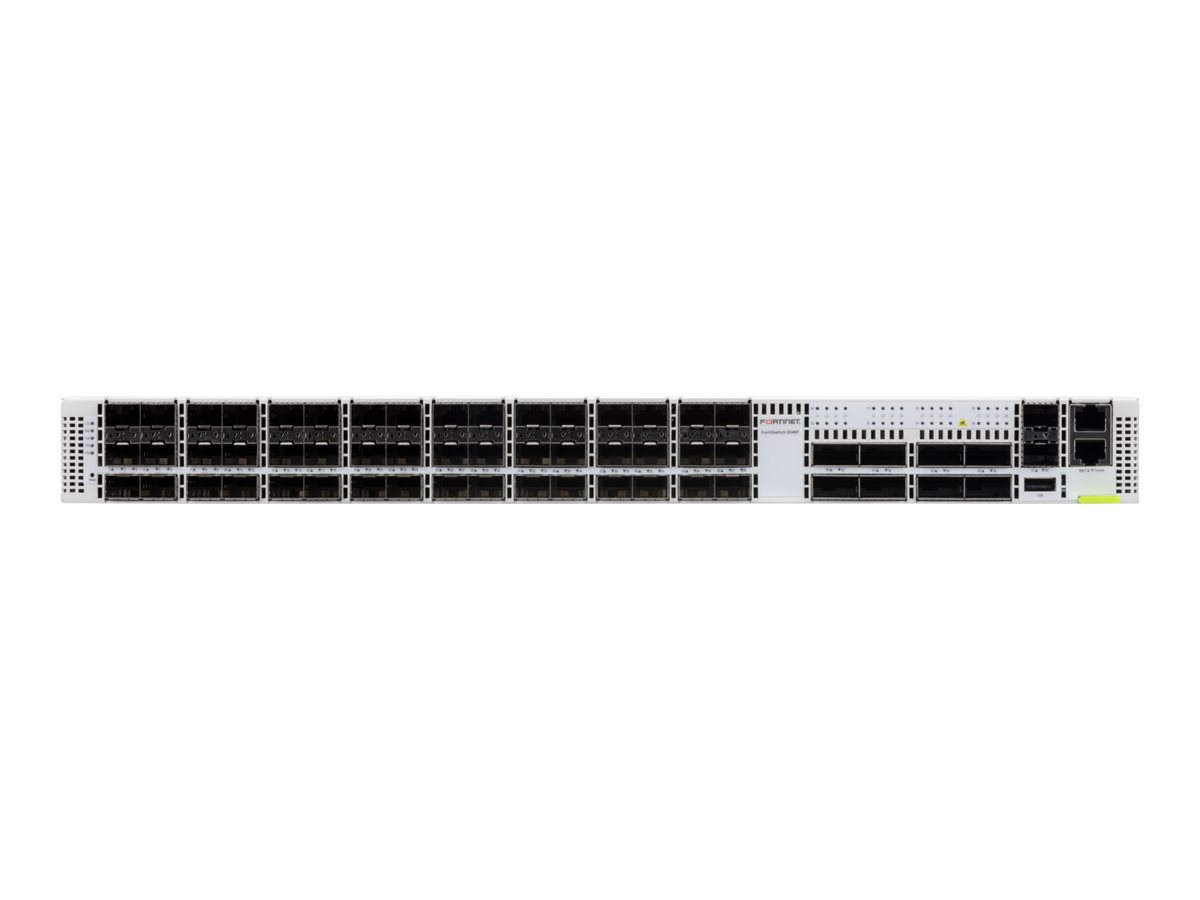

Fortinet FortiSwitch 2048F
- Switch
- managed
- 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $25,500.00 |
| Mfr Part #: | FS-2048F |
| SHI Part #: | 45898260 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Fortinet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | Fortinet FortiSwitch 2048F - Switch - managed - 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 - front to back airflow - rack-mountable |
| Manufacturer | Fortinet |
| MSRP | $25,500.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 46 cm |
| Dimensions & Weight / Height | 4.35 cm |
| Dimensions & Weight / Weight | 9.88 kg |
| Dimensions & Weight / Width | 43.85 cm |
| Header / Brand | Fortinet |
| Miscellaneous / Product Color | White |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 46 cm |
| Height | 4.35 cm |
| Weight | 9.88 kg |
| Width | 43.85 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Features | ALERT notification, load balancing, WOL, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, SNTP support, sFlow, DHCP snooping, RADIUS support, DHCP server, MLD snooping, DAI, ECMP, BFD, URPF, LLDP support, DHCP relay, RSPAN, IP-MAC binding, VRF, static routing, IGMP proxy, MACsec support, MLD proxy, IP source guard, ECN, VXLAN, policy based routing, IGMP querier, MLAG, LLDP-MED, RA guard, ERSPAN, MAB, SPAN mode, MLD querier, LLDP Neighbor Discovery, ACL support, Ingress ACL, dynamic packet capture, sticky MAC |
| Flash Memory | 8 GB |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 128K entries |
| Performance |
|
| Ports | 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 |
| RAM | 8 GB DDR4 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, MIB |
| Routing Protocol | OSPF, RIP, IS-IS, BGP, VRRP, static IP routing, PIM-SSM, VXLAN |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| MTBF | >10 years |
| Power | |
| Installed Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
