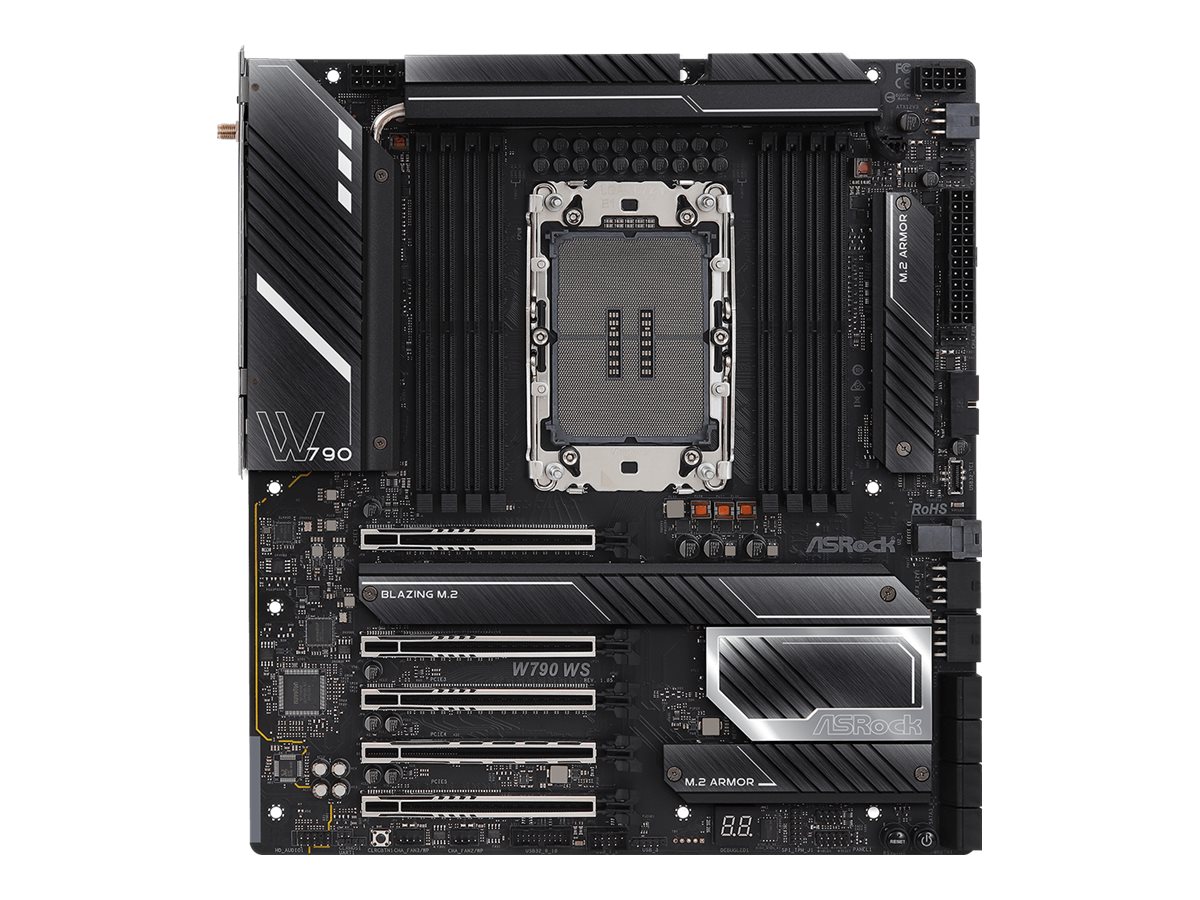

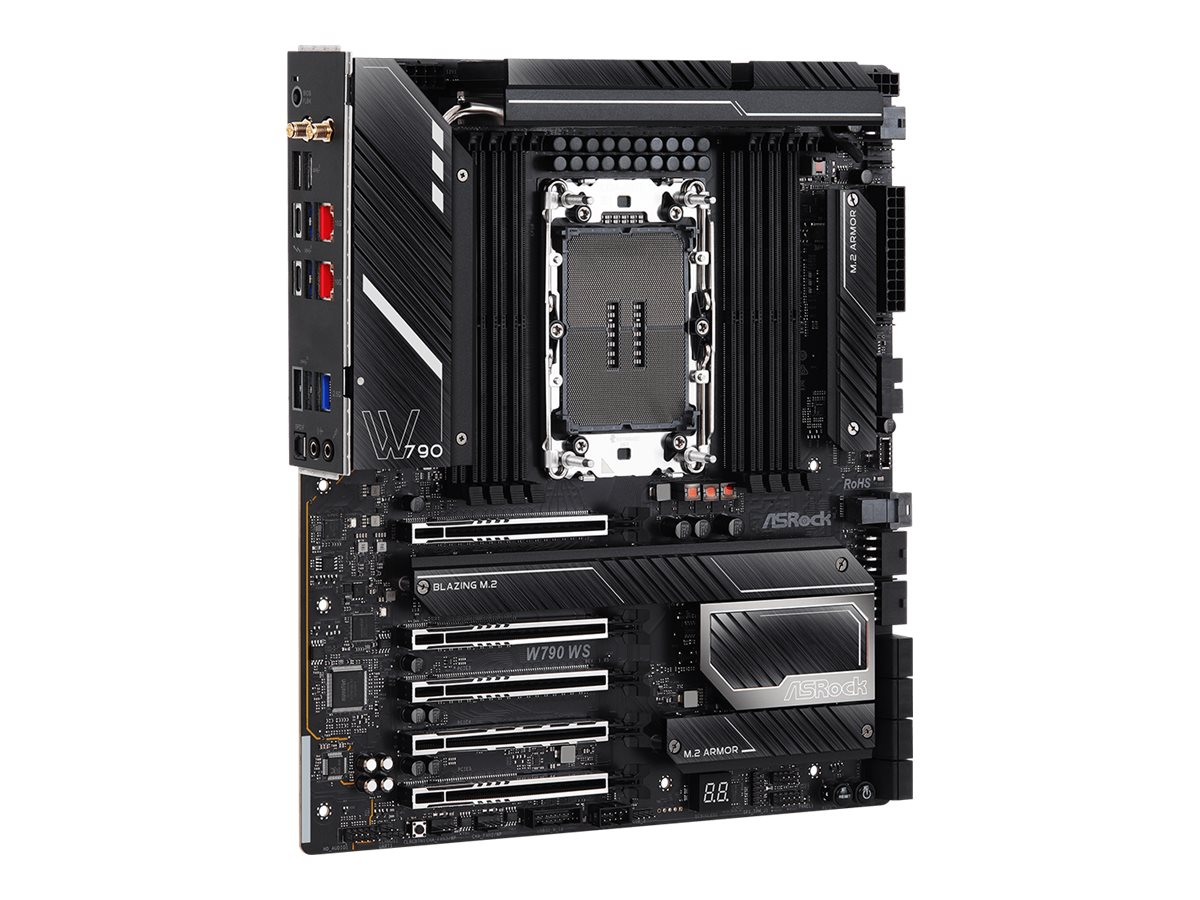

ASRock W790 WS - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASRock W790 WS - Motherboard
- extended ATX
- LGA4677 Socket-E
- W790 Chipset
- USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4
- 2 x 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | W790 WS |
| SHI Part #: | 45976911 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock W790 WS - Motherboard - extended ATX - LGA4677 Socket-E - W790 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4 - 2 x 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - HD Audio (8-channel) |
| Manufacturer | ASRock |
| MSRP | $879.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 27.7 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | Intel W790 |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | LGA4677 Socket-E |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin ATX12V connector, 2 x 8-pin PCI Express power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Hyper BCLK Engine, Intel Turbo Boost Technology, Intel Active Management Technology (Intel AMT), Preboot eXecution Environment (PXE), Water Pump Header, Hi-Density Power Connectors, BIOS FlashBack button, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer, 14 Layer PCB, 20+2 Phase Power Design, Server-Grade Ultra-Low-Loss PCB, pre-mounted I/O shield, ASRock Steel Slots, Surface Mount Technology (SMT), 90A Smart Power Stage, Nichicon 12K Black Caps, XXL Aluminum Alloy Heatsink, Dr.MOS MOSFET, built-in VRM fans, Digital PWM |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Chipset Type | Intel W790 |
| Compatibility | Intel vPro |
| Compatible Processors | Xeon |
| Max Processors Qty | 1 |
| Processor Socket | LGA4677 Socket-E |
| Product Type | Motherboard - extended ATX |
| LAN | |
| Network Controller | Marvell AQC113CS / Intel I225LM |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | FCC, ErP Ready, EuP Ready, CEC Tier II |
| Depth | 27.7 cm |
| Included Accessories | ASRock WiFi 2.4/5/6 GHz antenna, 4 x M.2 screws, 2 x standoff for M.2 socket |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 6800 MHz (O.C.), 4800 MHz, 4400 MHz |
| Features | Quad channel memory architecture |
| Max Size | 2 TB |
| Registered or Buffered | Buffered, registered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR5 |
