Hanwha Vision WiseNet X XNB-H6280B
MSRP$1,315.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

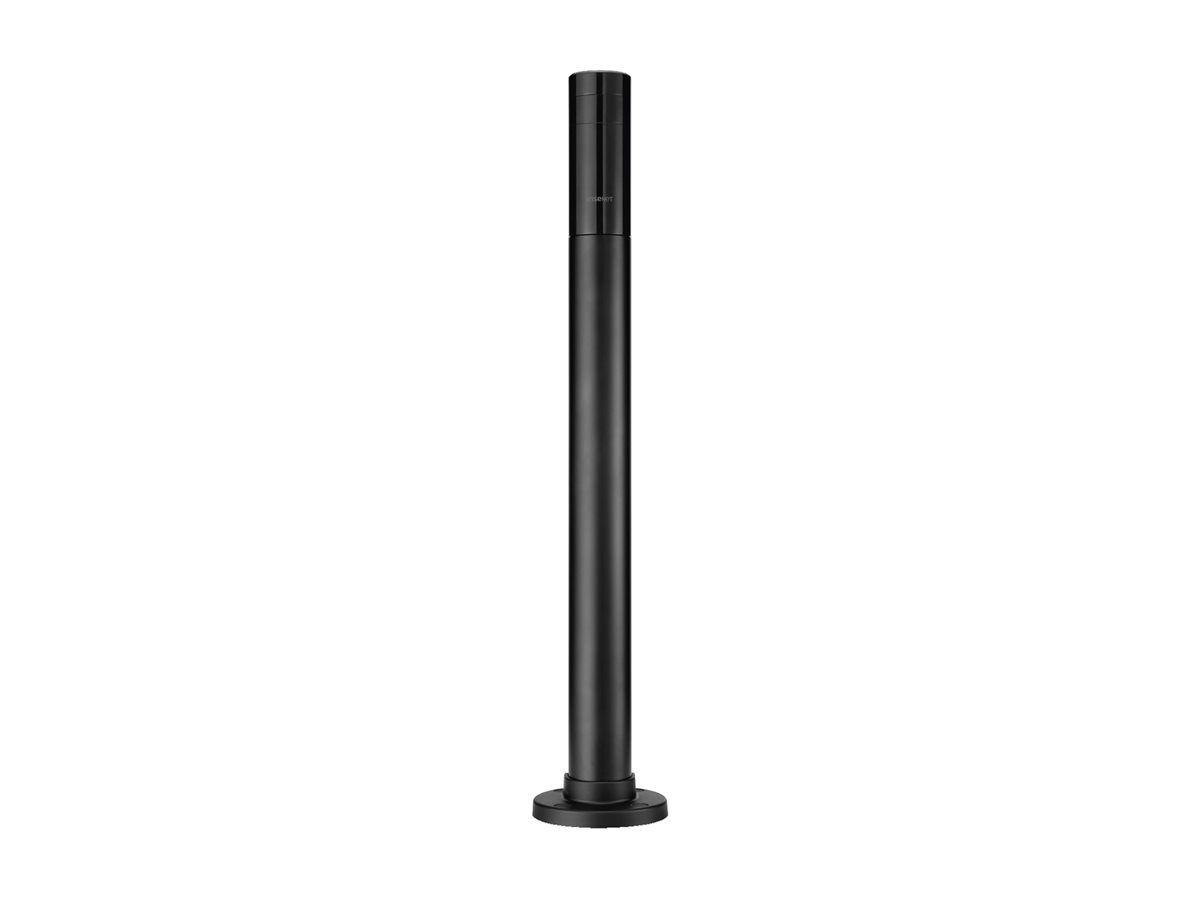

Hanwha Vision WiseNet X XNB-H6280B
- 2MP Network Bandit Barrier Camera Kit
- network surveillance camera
- tower
- color (Day&Night)
- 2.2 MP
- 1920 x 1080
- RJ12 mount
- fixed focal
- audio
- composite, USB
- LAN 10/100
- MJPEG, H.264, H.265, MPEG-4, AVC
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,315.00 |
| Mfr Part #: | XNB-H6280B |
| SHI Part #: | 45977685 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNB-H6280B - 2MP Network Bandit Barrier Camera Kit - network surveillance camera - tower - color (Day&Night) - 2.2 MP - 1920 x 1080 - RJ12 mount - fixed focal - audio - composite, USB - LAN 10/100 - MJPEG, H.264, H.265, MPEG-4, AVC - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,315.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.6 cm |
| Dimensions & Weight / Width | 6.65 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-4, AVC |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Progressive scanning, Wide Dynamic Range (WDR), Defog, Digital Image Stabilization (DIS), Backlight Compensation (BLC), Highlight Compensation (HLC), masking, dimmable, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), 2D Noise Reduction Technology, 3D Noise Reduction Technology, Motion Detection Technology, Handover, Gain Control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Correction, anti-flicker, digital PTZ function, image flip, image mirror, video tampering detection, loitering detection, Directional Detection, Virtual Line detection, Defocus Detection, fog detection, enter area detection, exit detection, Audio Detection, face detection, digital auto tracking, sound classification, people counting, Heat Map, queue management, network disconnection trigger, alarm event, Pixel Counter Support, WiseStream II support, Constant Bitrate (CBR), Variable Bitrate (VBR), digest authentication, IP address filtering, user access log, 802.1x authentication, Unicast Streaming, Multicast Streaming, ONVIF support |
| Flash Memory | 256 GB |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.03 lux - color - F1.6 - shutter 1/30 sec |
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 60 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, EAP-LEAP |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 4.6 cm |
| Device Type | Network surveillance camera |
| Form Factor | Tower |
| Width | 6.65 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Total Pixels | 1945 x 1109 |
| Type | 2.2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, SUNAPI |
| Video | Composite video, USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 122 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 107.4 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 50 cm |
| Type | RJ12 mount - fixed focal |
| Vertical Field of View (degree) | 62.2 |
| Miscellaneous | |
| Cables Included | 1 x RJ-12 cable - 1.5 m |
| Color | Black, ivory |
| Compliant Standards | NDAA, FCC, cULus |
| Included Accessories | Main unit |
| Power | |
| Power Device | 6.5 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple MacOS X 10.10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Software Included | Wisenet WAVE, SmartViewer, Supermicro Server Manager (SSM) |
