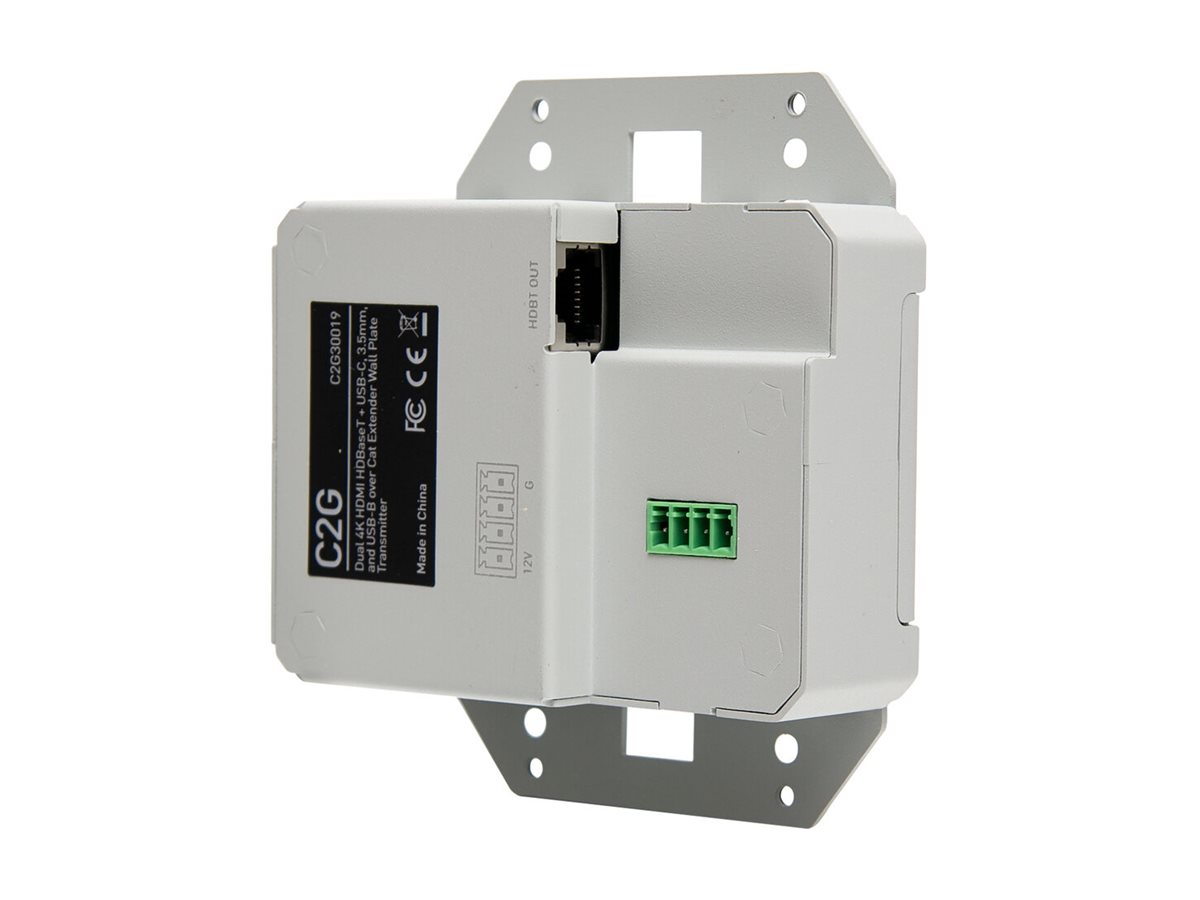

C2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver

$821.99
C2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 4K 60Hz
  • Video/audio/USB/serial extender
  • transmitter
  • HDMI, HDBaseT 2.0
  • over CAT 5e/6/6a/7
C2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver
  • 4K 60Hz
  • Video/audio/USB/serial extender
  • transmitter
  • HDMI, HDBaseT 2.0
  • over CAT 5e/6/6a/7
  • up to 70 m
  Additional Details
Price: $821.99
Mfr Part #: C2G31020
SHI Part #: 46039419
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: C2G
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionC2G Dual 4K HDMI HDBaseT + USB-C, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Audio De-Embedding Box Receiver - 4K 60Hz - Video/audio/USB/serial extender - transmitter - HDMI, HDBaseT 2.0 - over CAT 5e/6/6a/7 - up to 70 m
ManufacturerC2G
MSRP$821.99
UNSPSC43201559
Main Specifications
Header / BrandC2G
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • HDBaseT 2.0
  • HDMI
Networking / Data Transfer Rate10.2 Gbps
Networking / Form FactorExternal
Networking / TypeVideo/audio/USB/serial extender
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
  • Transmitter: 8.9 cm x 10.56 cm x 3.84 cm / 300 g
  • Receiver: 21 cm x 9.02 cm x 2.5 cm / 460 g
Environmental Parameters
Humidity Range Operating10 - 90% RH (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 2 x HDMI (input) - 19 pin HDMI Type A female
  • 1 x USB 3.1 Gen 2 - Type C female
  • 1 x HDBaseT (output) - RJ-45 female
  • 1 x audio (input) - phone 3.5 mm female
  • 1 x USB 2.0 (pass-through) - Type B female
  • 1 x micro-USB (firmware update) - Type B female
  • 1 x HDBaseT (input) - RJ-45 female
  • 1 x RS-232 - 3 pin Phoenix female
  • 1 x HDMI (output) - 19 pin HDMI Type A female
  • 1 x audio (output) - mini jack
  • 1 x audio (pass-through) - mini jack
  • 4 x USB - Type A female
General
ColorBlack
Device TypeVideo/audio/USB/serial extender (transmitter)
Form FactorExternal
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsEMI, TSCA, RoHS, REACH, NDAA Section 889
Networking
Compliant StandardsHDCP 2.2, USB 2.0
Connectivity TechnologyWired
Data Link ProtocolHDMI, HDBaseT 2.0
Data Transfer Rate10.2 Gbps
FeaturesAudio de-embedding, power over HDBaseT (PoH), auto-switching, firmware upgradable, HDR 4K60 8-bit 4:2:0 compatible, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Dolby Atmos support, Dolby TrueHD support, DTS:X support, DTS-HD Master Audio support, DisplayPort Alternate mode, YUV 4:2:0, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), VS210 chipset
Max Resolution4K @ 60 Hz
Max Transfer Distance70 m
Status IndicatorsHDMI, USB, HDCP, link, power, status
Power
Power Consumption Operational8 Watt
Power DeviceExternal power adapter
Power Over Ethernet (PoE)PoH
Voltage RequiredDC 12 V
