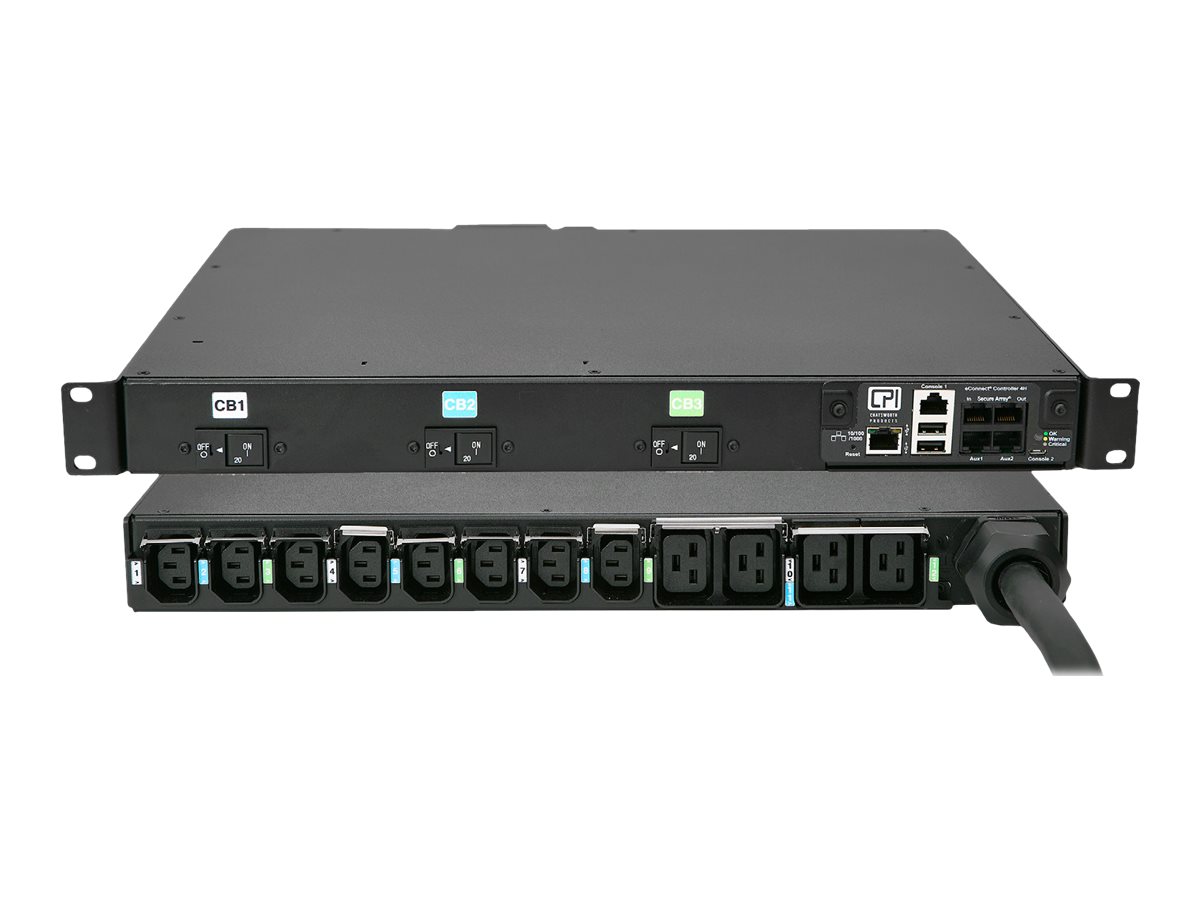

CPI Switched Pro eConnect PDU EA-6294-C
MSRP$1,921.54
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CPI Switched Pro eConnect PDU EA-6294-C
- Power distribution unit (rack-mountable)
- horizontal
- AC 208 V
- 5 kW
- 1-phase
- USB, Ethernet 10/100/1000, serial
- input: NEMA L6-30P
- output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 C19)
- 1U
- 19"
- 3 m cord
- North America
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,921.54 |
| Mfr Part #: | EA-6294-C |
| SHI Part #: | 46202033 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched Pro eConnect PDU EA-6294-C - Power distribution unit (rack-mountable) - horizontal - AC 208 V - 5 kW - 1-phase - USB, Ethernet 10/100/1000, serial - input: NEMA L6-30P - output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 C19) - 1U - 19" - 3 m cord - North America - black - TAA Compliant |
| Manufacturer | Chatsworth |
| MSRP | $1,921.54 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.48 cm |
| Dimensions & Weight / Height | 4.369 cm |
| Dimensions & Weight / Weight | 8.2 kg |
| Dimensions & Weight / Width | 43.18 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 30.48 cm |
| Height | 4.369 cm |
| Weight | 8.2 kg |
| Width | 43.18 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | North America |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | EN55022, FCC Part 15, RoHS, FCC Part 15 A, cULus, IEC 62368, UL 62368 |
| Features | Password security, low-profile, heat-resistant, for indoor use, reset button, current meter, LED indicators, firmware upgradable, horizontal orientation, energy meter, power factor meter, metering per branch circuit breaker, Secure Array technology, monitored per outlet, switched per outlet, locking outlets, Hydraulic-Magnetic breakers, voltage meter, Power IQ technology, bistable latching relays, electronic lock integration, outlet grouping, field-replaceable module, SD-card transfers PDU identity, color-coded labels, 5kAIC breaker, Zero Touch Provisioning (ZTP) |
| Included Accessories | Rack mount brackets, grounding kit |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI, DHCP, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Power Output Connectors Details |
|
