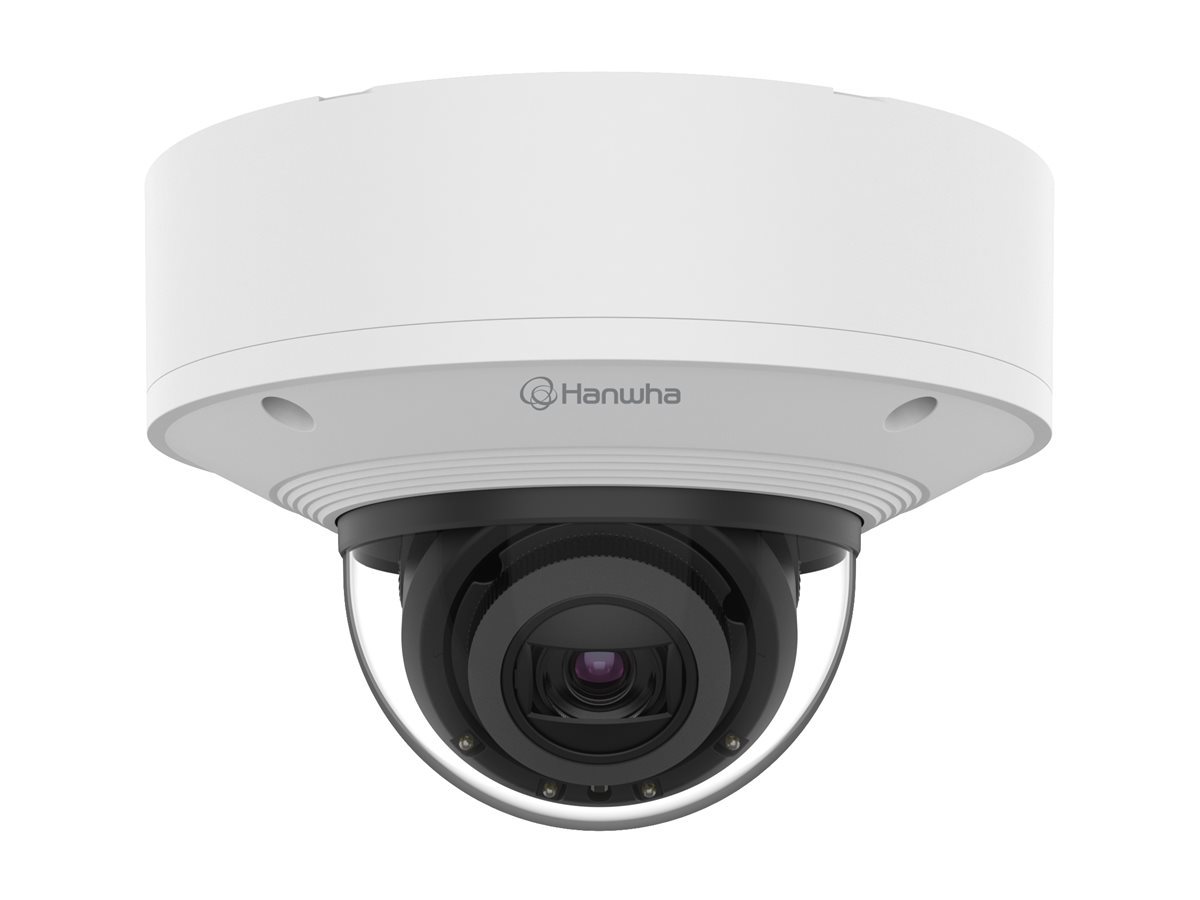

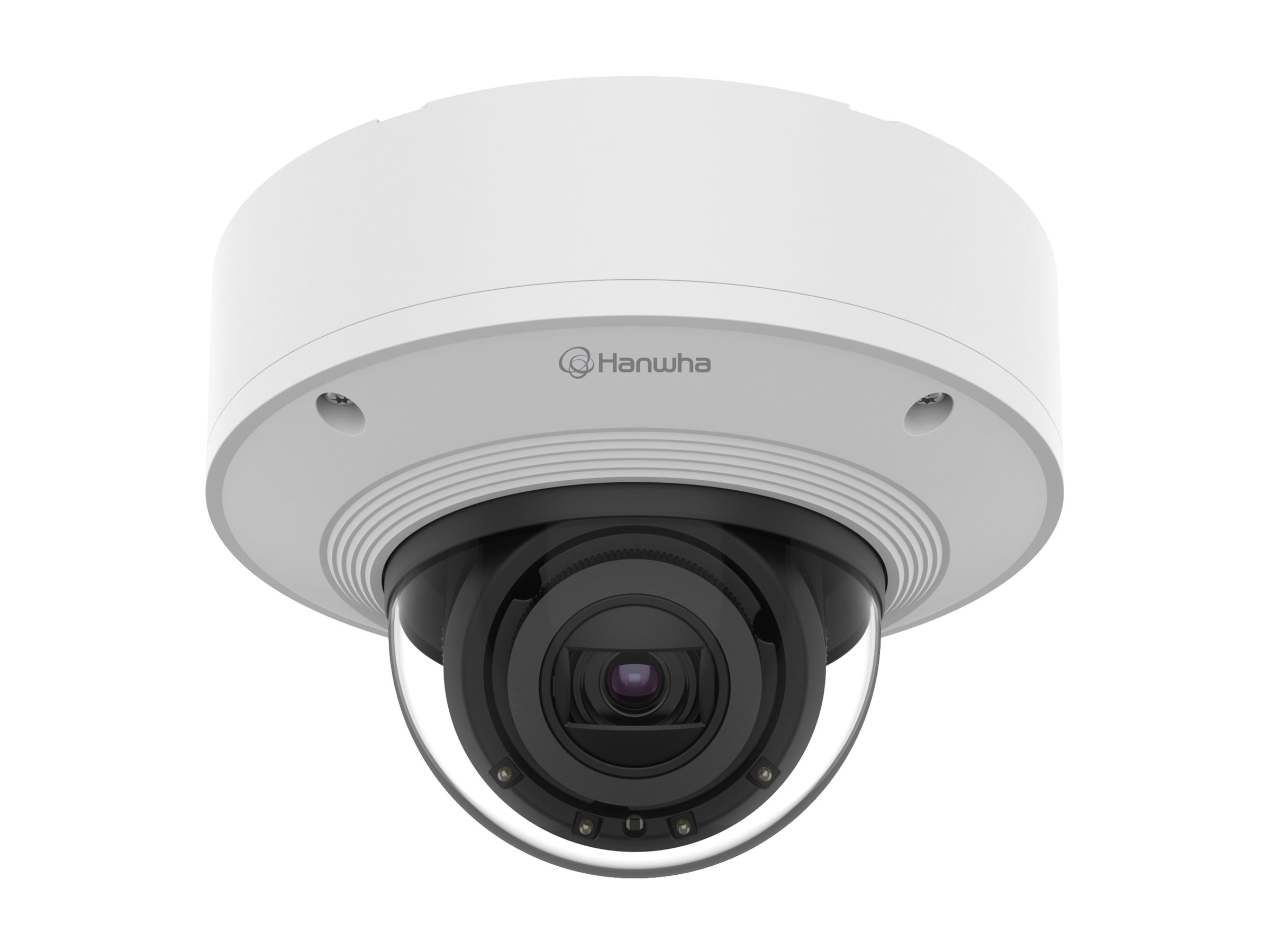

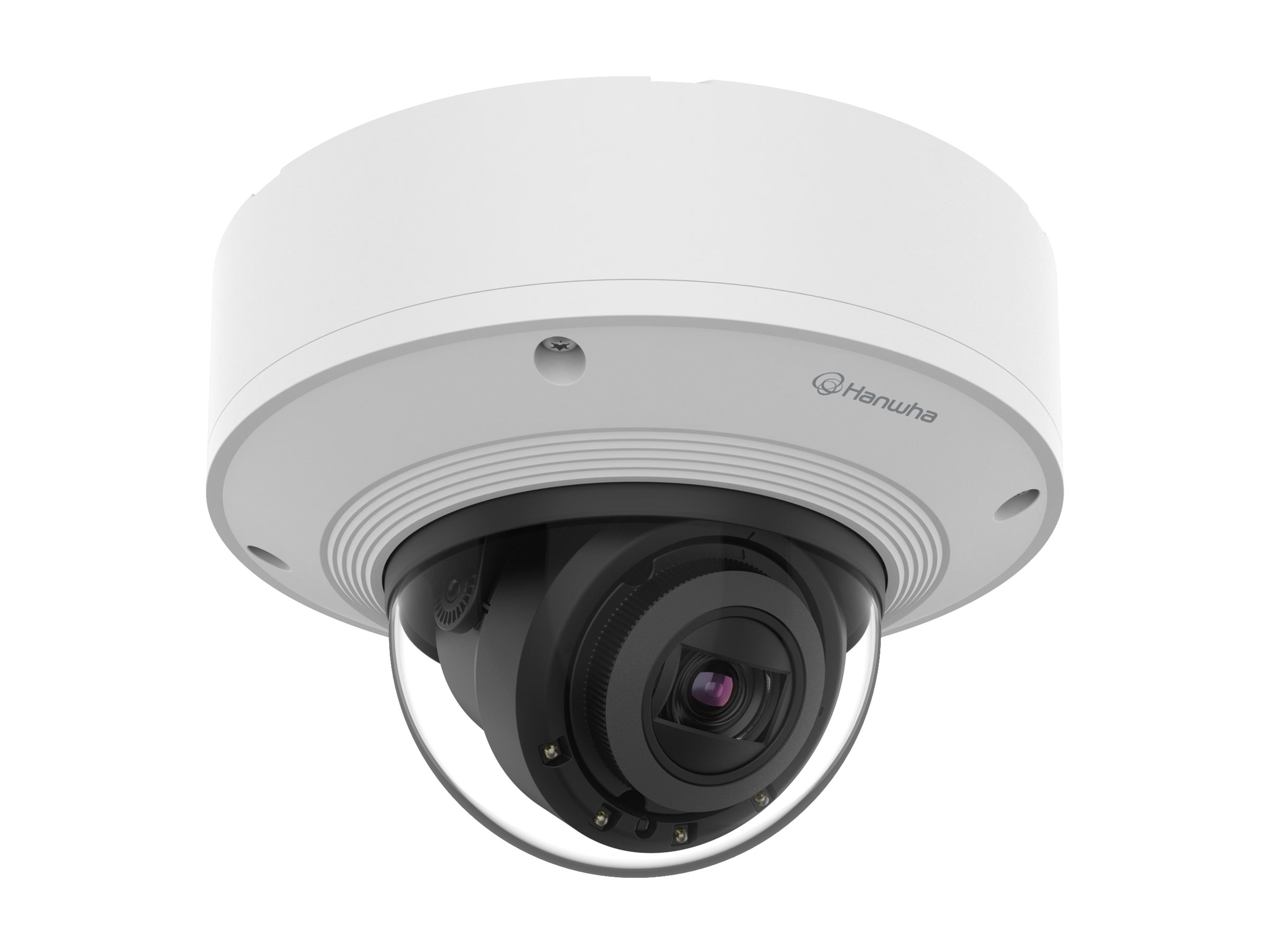

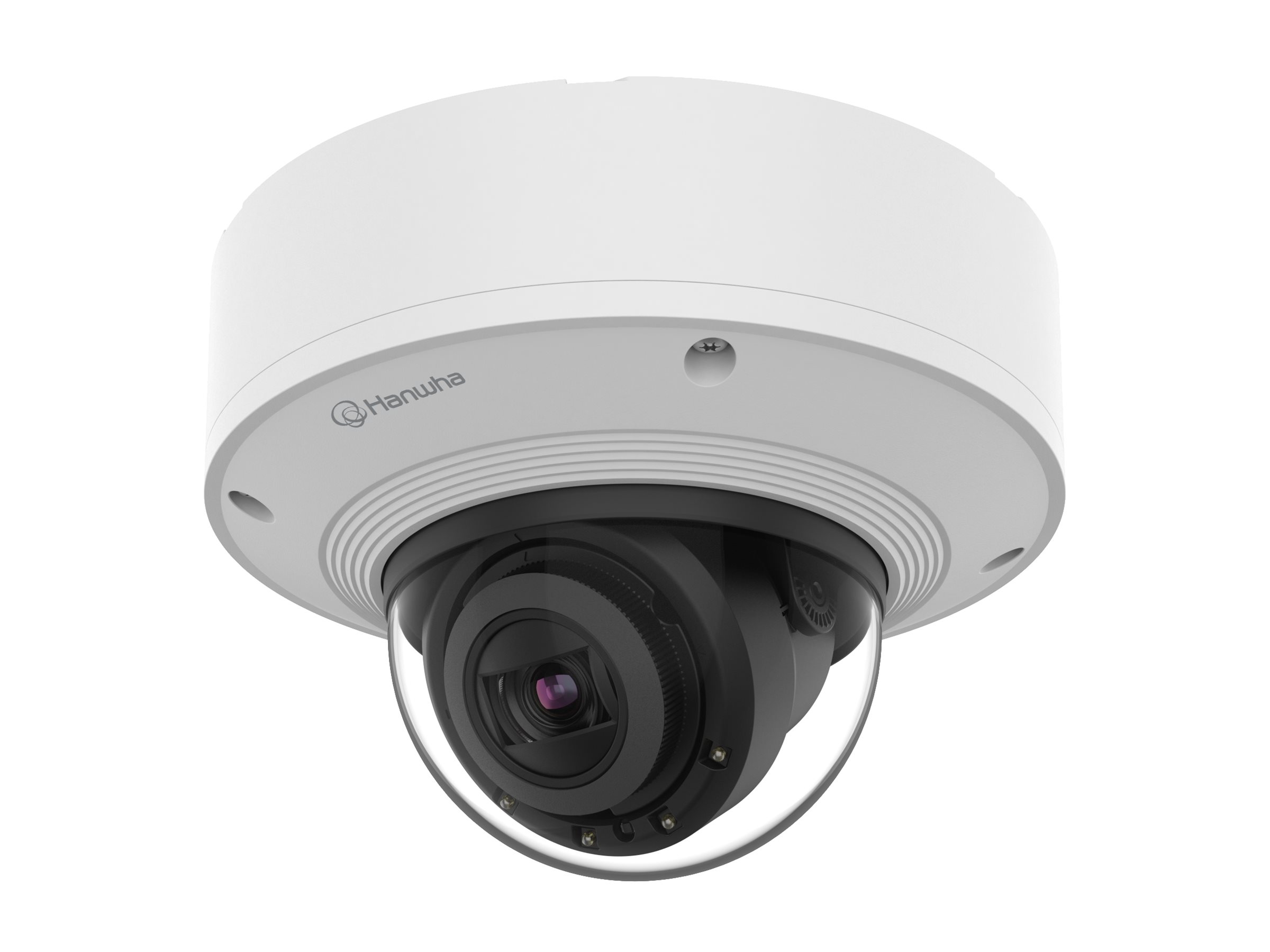

Hanwha Vision WiseNet X XNV-6081R
MSRP$1,300.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNV-6081R
- Network surveillance camera
- dome
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,300.00 |
| Mfr Part #: | XNV-6081R |
| SHI Part #: | 46400171 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNV-6081R - Network surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,300.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18 cm |
| Dimensions & Weight / Height | 12.5 cm |
| Dimensions & Weight / Weight | 1.75 kg |
| Dimensions & Weight / Width | 18 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | White balance, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), digital PTZ function, Camera Tampering Detection, auto tracking, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, appearing / disappearing detection, people counting, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, fog detection, motion detection, Unicast Streaming, Heatmap, Handover |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 18 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.5 cm |
| Weight | 1.75 kg |
| Width | 18 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, PIM-SM, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Focal Length | 2.8 mm - 12 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Lens Iris | F/1.4-3.6 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 4.3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IP67, IP66, IK10+, IEEE 802.1x |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 12.95 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | -45 to +85 |
