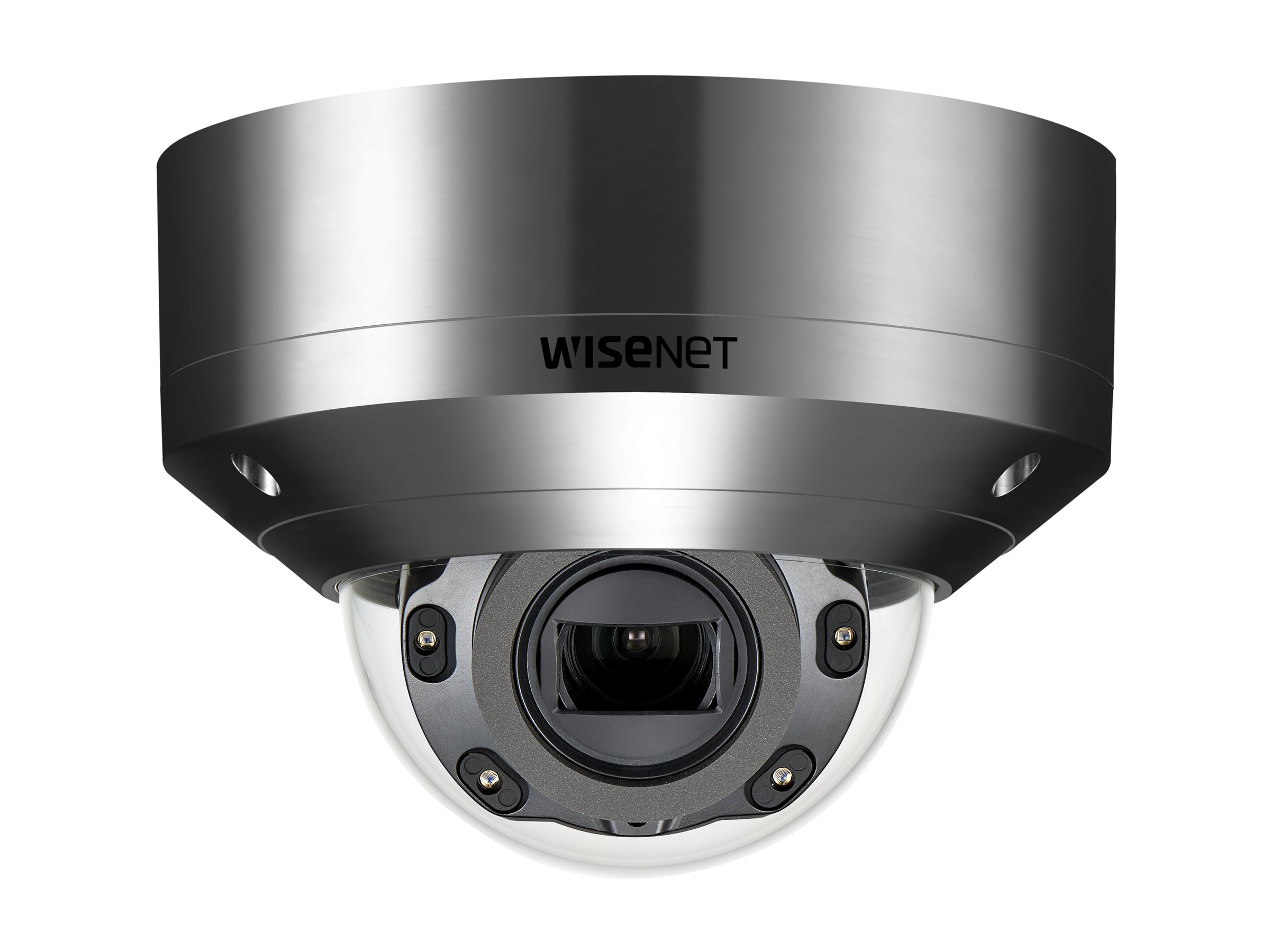

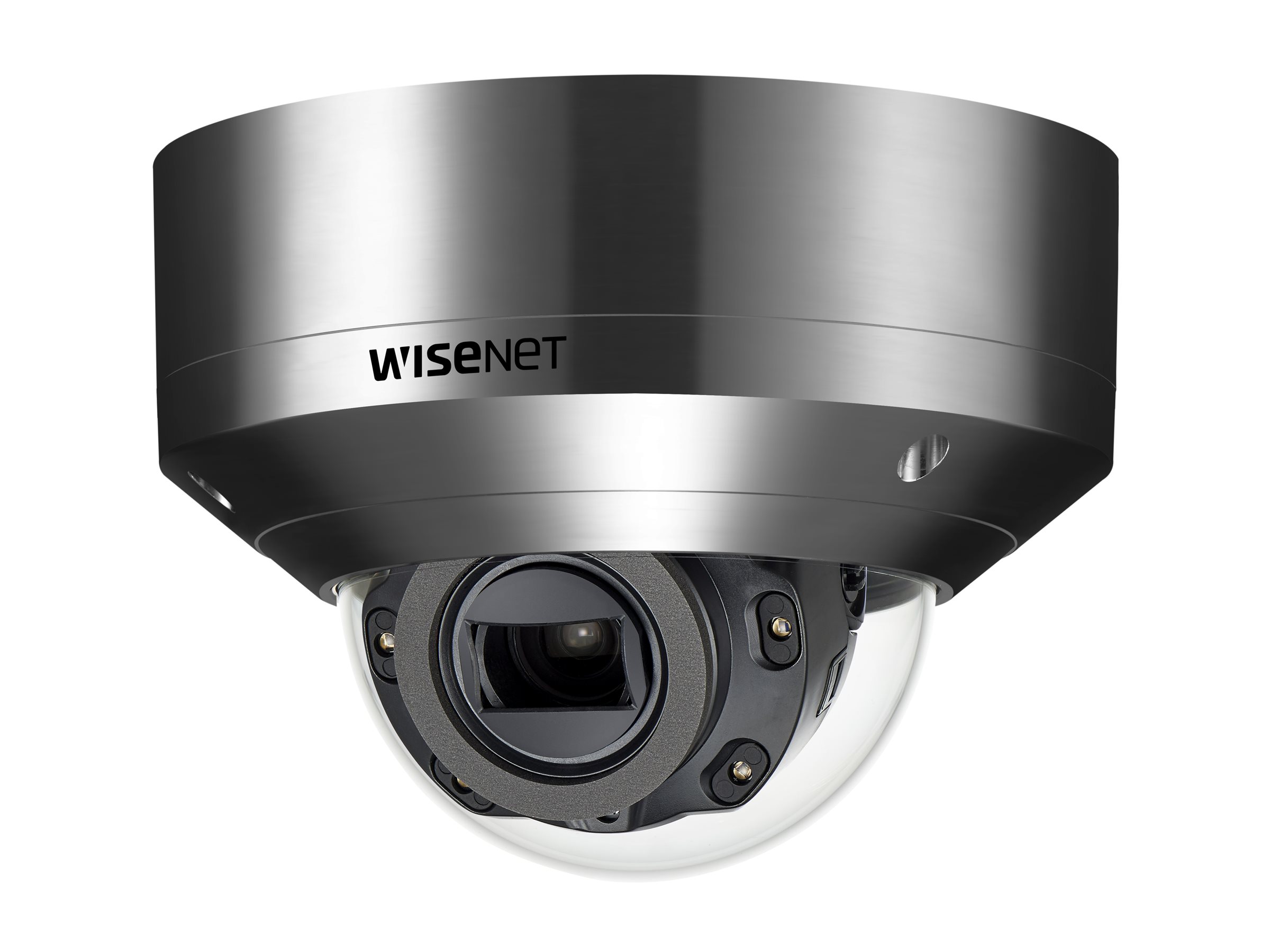

Hanwha Vision WiseNet X XNV-6080RSA
MSRP$1,620.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNV-6080RSA
- Network surveillance camera
- dome
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- composite
- LAN 10/100
- MPEG-4, MJPEG, H.264, AVC, H.265
- DC 12 V / AC 24 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,620.00 |
| Mfr Part #: | XNV-6080RSA |
| SHI Part #: | 46400218 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNV-6080RSA - Network surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - composite - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, H.265 - DC 12 V / AC 24 V / PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $1,620.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.2 cm |
| Dimensions & Weight / Height | 12.05 cm |
| Dimensions & Weight / Weight | 2.8 kg |
| Dimensions & Weight / Width | 16.2 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, auto tracking, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, Hallway View, fog detection, stainless steel housing |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 60 fps |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, AAC-LC, G.711, U-LAW |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16.2 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.05 cm |
| Weight | 2.8 kg |
| Width | 16.2 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Lens Iris | F/1.4-3.6 auto iris (DC, P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 4.3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Miscellaneous | |
| Color | Silver |
| Compliant Standards | NEMA Type 4X, IP66, IK10+, IEEE 802.3af, IEEE 802.1x, IP6K9K |
| Panning | |
| Range (degree) | 0 to 354 |
| Power | |
| Power Device | 14 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 67 |
