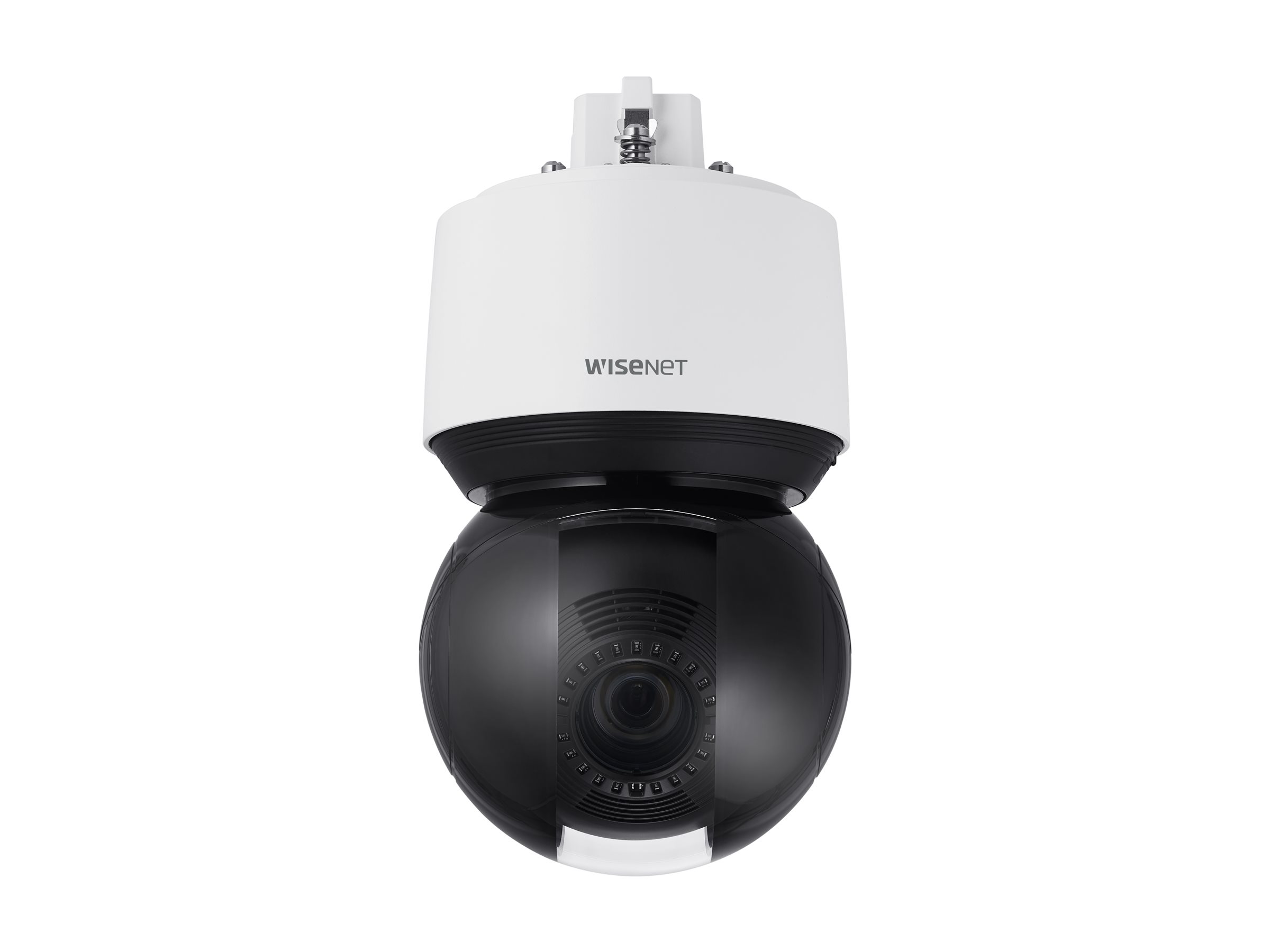

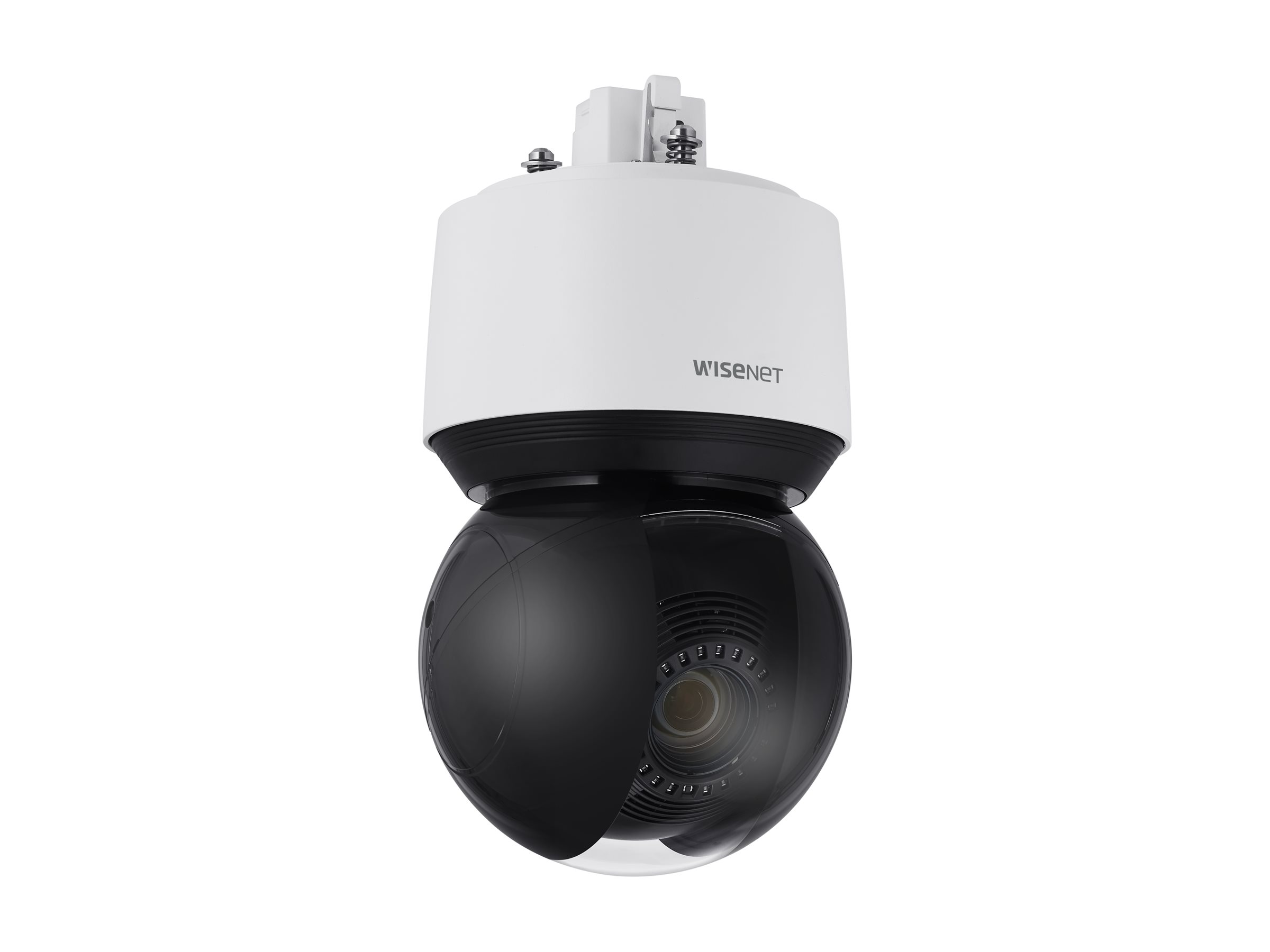

Hanwha Vision WiseNet X Plus XNP-6400
MSRP$3,650.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X Plus XNP-6400
- Network surveillance camera
- PTZ
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,650.00 |
| Mfr Part #: | XNP-6400 |
| SHI Part #: | 46400270 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X Plus XNP-6400 - Network surveillance camera - PTZ - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - LAN 10/100 - MJPEG, H.264, H.265 - PoE Plus Class 4 |
| Manufacturer | HANWHA VISION |
| MSRP | $3,650.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.8 cm |
| Dimensions & Weight / Height | 29.33 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 15.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 800 x 448 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), white balance, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), adjustable gain control, Highlight Compensation (HLC), Digital Image Stabilization (DIS), Camera Tampering Detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, Smart Codec, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Object Tracking, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Extreme WDR, fog detection, motion detection, Unicast Streaming, aluminum housing, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, polycarbonate housing, Target lock tracking |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 15.8 cm |
| Device Type | Network surveillance camera |
| Height | 29.33 cm |
| Weight | 3.2 kg |
| Width | 15.8 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, PIM-SM, LLDP |
| Lens Construction | |
| Focal Length | 4.25 mm - 170 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 1.88 - 65.66 |
| Lens Iris | F/1.6-4.95 auto iris (DC) |
| Min Focus Distance | 3 m |
| Optical Zoom | 40 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.09 - 39.4 |
| Miscellaneous | |
| Color | Black, white |
| Compliant Standards | NEMA Type 4X, IK10, IP66, IEEE 802.3at, IEEE 802.1x |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 250 |
| Power | |
| Power Device | 25 Watt |
| Power Requirements | PoE Plus Class 4 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 250 |
