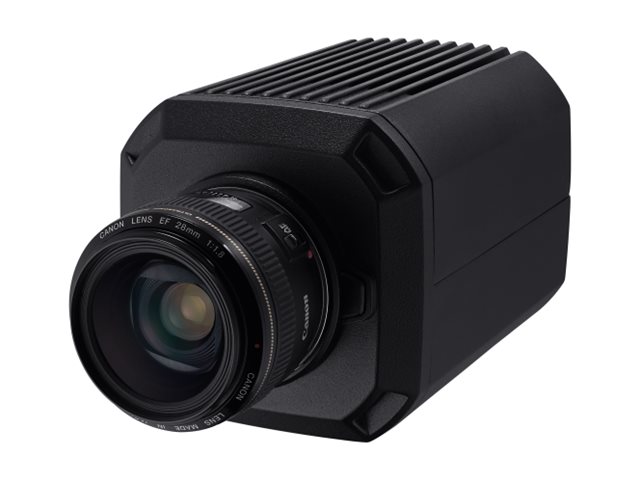

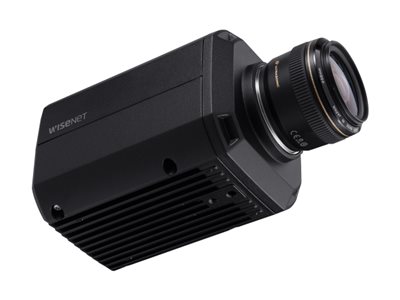

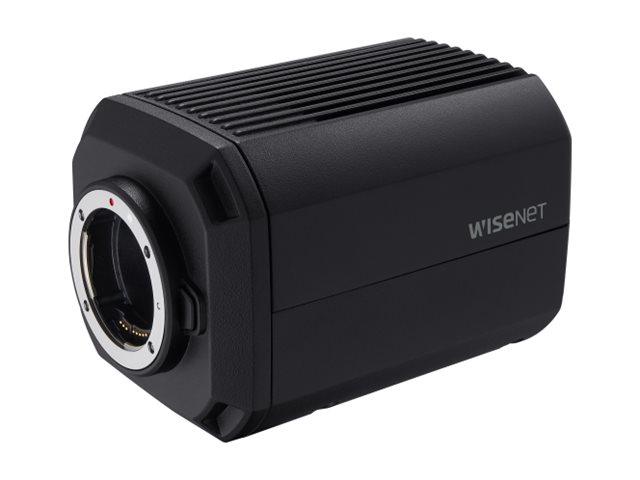

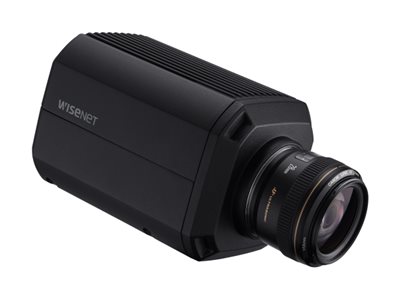

Hanwha Vision WiseNet T TNB-9000
MSRP$12,000.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet T TNB-9000
- Network surveillance camera (no lens)
- box
- color (Day&Night)
- 7680 x 4320
- EF-mount
- audio
- HDMI
- GbE
- MJPEG, H.264, H.265
- DC 12 V / High PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $12,000.00 |
| Mfr Part #: | TNB-9000 |
| SHI Part #: | 46400275 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Hanwha Vision WiseNet T TNB-9000 - Network surveillance camera (no lens) - box - color (Day&Night) - 7680 x 4320 - EF-mount - audio - HDMI - GbE - MJPEG, H.264, H.265 - DC 12 V / High PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $12,000.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.9 cm |
| Dimensions & Weight / Height | 11.81 cm |
| Dimensions & Weight / Weight | 2.1 kg |
| Dimensions & Weight / Width | 12 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 3840 x 2160, 4608 x 2592, 800 x 448, 5472 x 3648, 6016 x 3384, 7680 x 4320, 6016 x 4008, 7360 x 4128, 4768 x 3184 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Object Detection, face detection, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Vehicle Detection, IP address filtering, motion detection, Unicast Streaming, Person Detection, aluminum housing, Handover, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, sound classification, Gain Control |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 7680 x 4320 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4096 MB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 17.9 cm |
| Device Type | Network surveillance camera (no lens) |
| Form Factor | Box |
| Height | 11.81 cm |
| Weight | 2.1 kg |
| Width | 12 cm |
| Image Sensor | |
| Type | CMOS |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Video | HDMI |
| Lens Construction | |
| Type | EF-mount |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, ICES-003 Class A, UL 60950-1, EN 61000-6-3, FCC Part 15 B Class A, KC, EN 55032 Class A, IEEE 802.1x, IEEE 802.3bt, EN 50130-4 |
| Power | |
| Power Device | 30 Watt |
| Power Requirements | DC 12 V / High PoE |
