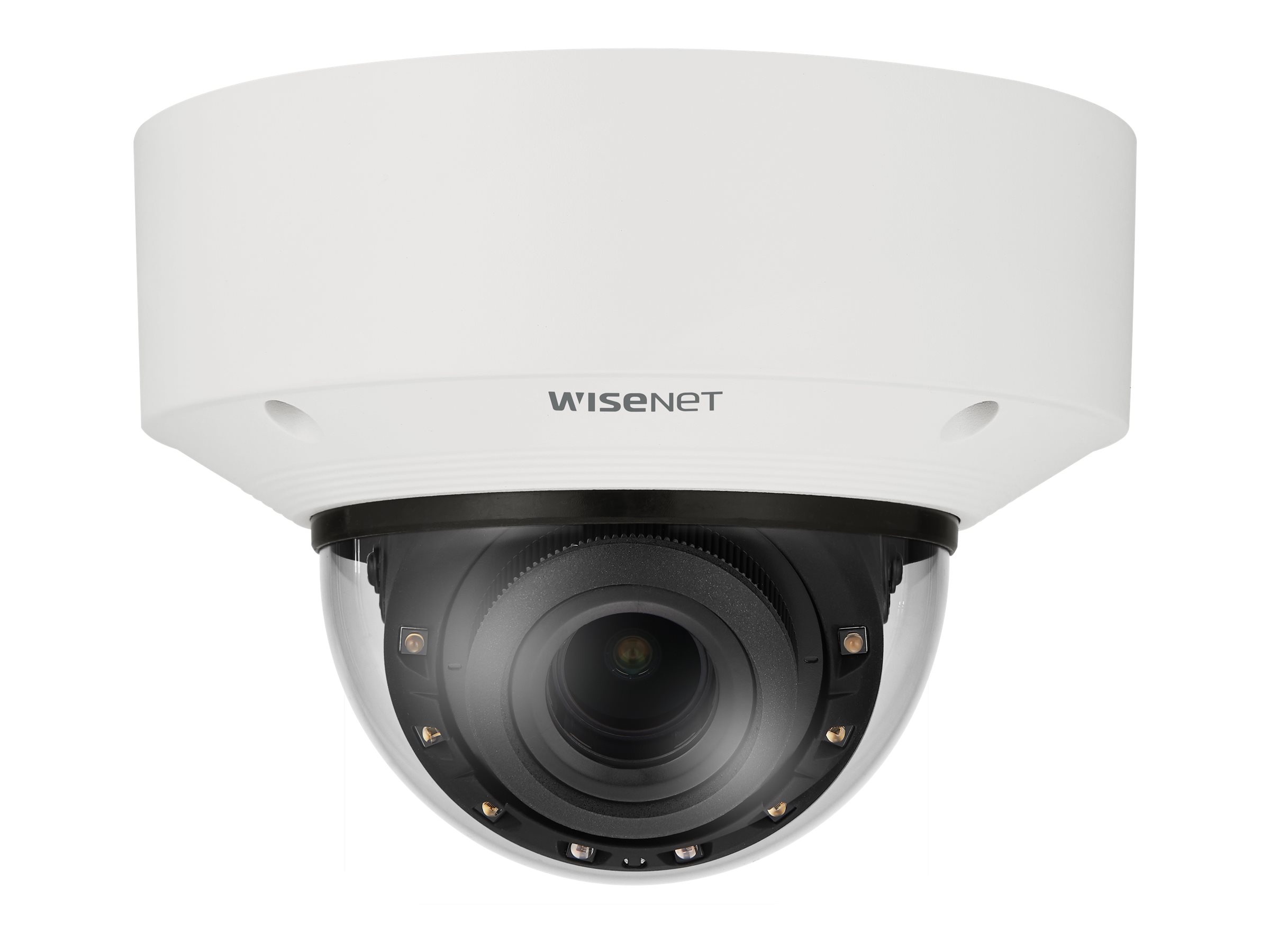

Hanwha Vision WiseNet X XNV-C6083R
MSRP$1,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNV-C6083R
- Network surveillance camera
- dome
- outdoor
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,200.00 |
| Mfr Part #: | XNV-C6083R |
| SHI Part #: | 46400330 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNV-C6083R - Network surveillance camera - dome - outdoor - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,200.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 11.8 cm |
| Dimensions & Weight / Weight | 1.45 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, people counting, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Vehicle Detection, IP address filtering, Extreme WDR, Hallway View, fog detection, Unicast Streaming, Person Detection, Handover, ONVIF (Profile T) support, direction detection, Virtual Line detection, sound classification, Gain Control, queue management, WiseStream III support |
| Flash Memory | 512 MB |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Video Capture | 1920 x 1080 @ 60 fps |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.8 cm |
| Weight | 1.45 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, LLDP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 32 - 142.1 |
| Focal Length | 2.8 mm - 12 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 27.9 - 119.5 |
| Lens Iris | F/1.4-3.6 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 4.3 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 15.7 - 62.8 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | 12.95 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | -45 to +75 |
