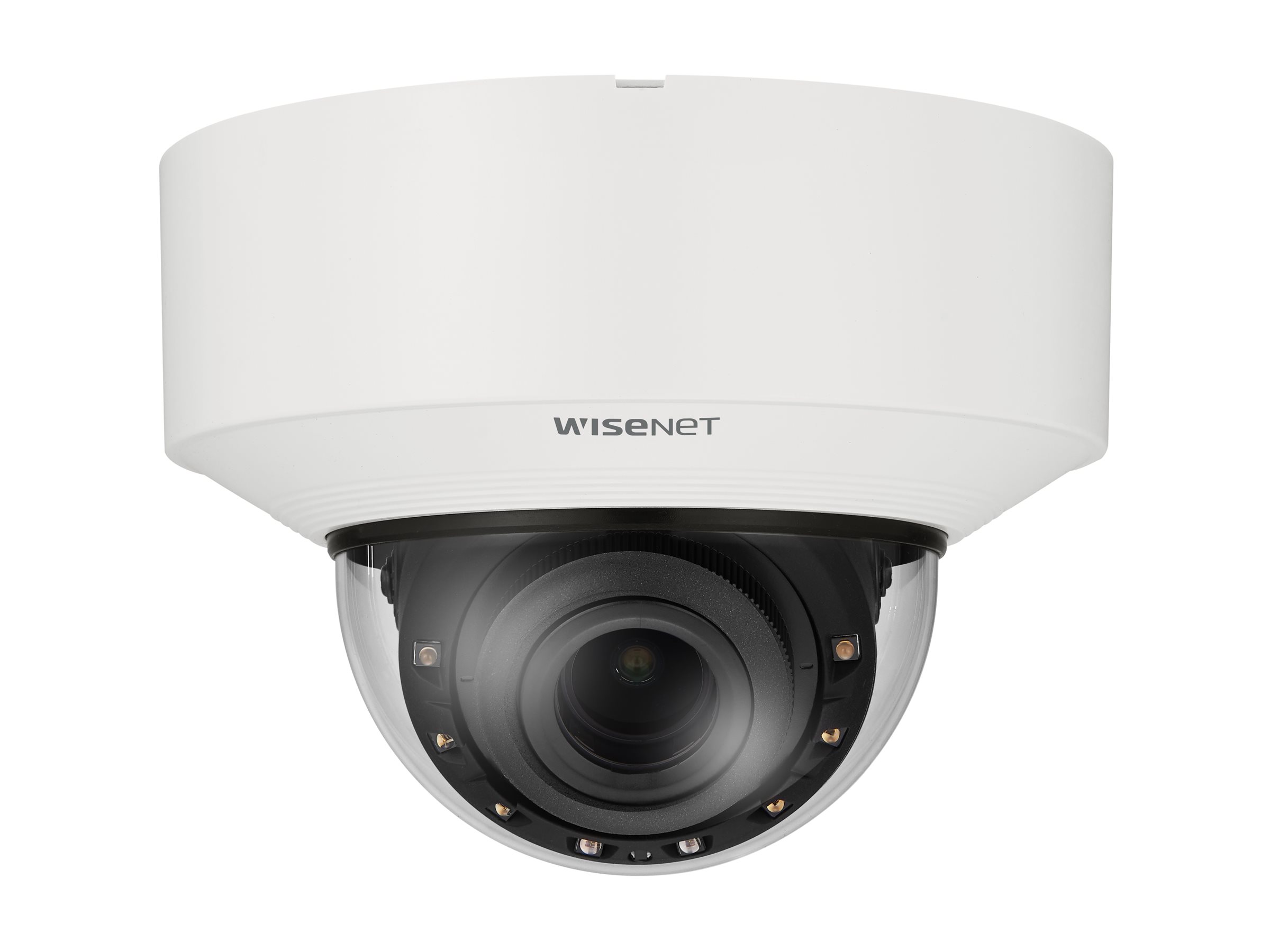

Hanwha Vision WiseNet X XNV-C7083R
MSRP$1,400.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNV-C7083R
- Network surveillance camera
- dome
- outdoor
- dust resistant / water resistant / shock resistant / corrosion resistant / vandal-proof
- color (Day&Night)
- 4 MP
- 2592 x 1520
- auto iris
- motorized
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,400.00 |
| Mfr Part #: | XNV-C7083R |
| SHI Part #: | 46400331 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Hanwha Vision WiseNet X XNV-C7083R - Network surveillance camera - dome - outdoor - dust resistant / water resistant / shock resistant / corrosion resistant / vandal-proof - color (Day&Night) - 4 MP - 2592 x 1520 - auto iris - motorized - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,400.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 11.8 cm |
| Dimensions & Weight / Weight | 1.45 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), image flip, image mirror, Hallway View, Object Detection, face detection, Vehicle Detection, license plate detection, Intelligent Video Analysis (IVA), Virtual Line detection, loitering detection, entrance / exit detection, appearing / disappearing detection, direction detection, intrusion detection, Defocus Detection, Motion Detection Technology, tamper-detection, fog detection, Audio Detection, sound classification, shock detection, people counting, queue management, Heat Map, progressive scanning, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, Smart Codec, video analytics, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, WiseNR II, Samsung Super Noise Reduction (SSNRV), WiseStream II support, WiseStream III support, IP address filtering, Extreme WDR, Unicast Streaming, Person Detection, Handover, Gain Control, DORI coverage |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - dust resistant / water resistant / shock resistant / corrosion resistant / vandal-proof |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, G.711u |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.8 cm |
| Weight | 1.45 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, LLDP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 35.3 - 131.3 |
| Focal Length | 2.8 mm - 10 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 30.4 - 109.7 |
| Lens Iris | F/1.4-3.0 auto iris (DC) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 3.6 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 17.8 - 60.8 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IP66, IP67, NEMA Type 4X, IK10, IEEE 802.3af, IEEE 802.1x, EN 62676-4 |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | -45 to +75 |
