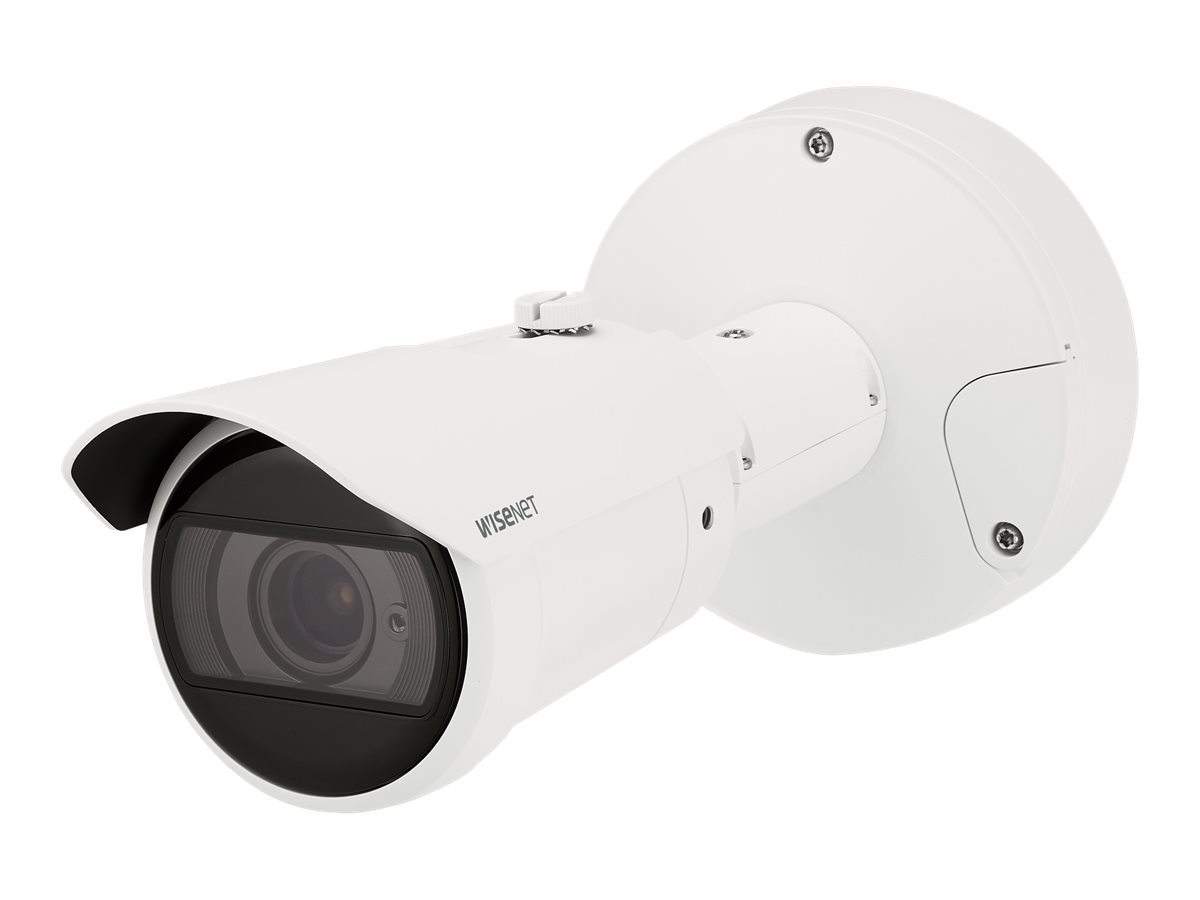

Hanwha Vision WiseNet X XNO-C7083R
MSRP$1,400.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNO-C7083R
- Network surveillance camera
- bullet
- outdoor
- color (Day&Night)
- 4 MP
- 2688 x 1520
- auto iris
- motorized
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,400.00 |
| Mfr Part #: | XNO-C7083R |
| SHI Part #: | 46400378 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNO-C7083R - Network surveillance camera - bullet - outdoor - color (Day&Night) - 4 MP - 2688 x 1520 - auto iris - motorized - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,400.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 27.66 cm |
| Dimensions & Weight / Height | 9.34 cm |
| Dimensions & Weight / Weight | 1.64 kg |
| Dimensions & Weight / Width | 9.34 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme Wide Dynamic Range (E-WDR), WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), Defog, motion detection, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), anti-flicker, Hallway View, Object Detection, Intelligent Video Analysis (IVA), Defocus Detection, tamper-detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, direction detection, loitering detection, entrance / exit detection, Virtual Line detection, people counting, queue management, Heat Map, notification picture to FTP, notification picture to E-mail, trigger recording, Unicast Streaming, Multicast Streaming, digest authentication, user access log, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, WiseStream III support, WiseStream II support, auto ICR |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 27.66 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 9.34 cm |
| Weight | 1.64 kg |
| Width | 9.34 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 35.3 - 131.3 |
| Focal Length | 2.8 mm - 10 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 30.4 - 109.7 |
| Lens Iris | F/1.4-3.0 auto iris (DC) |
| Optical Zoom | 3.6 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 17.8 - 60.8 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 10 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
