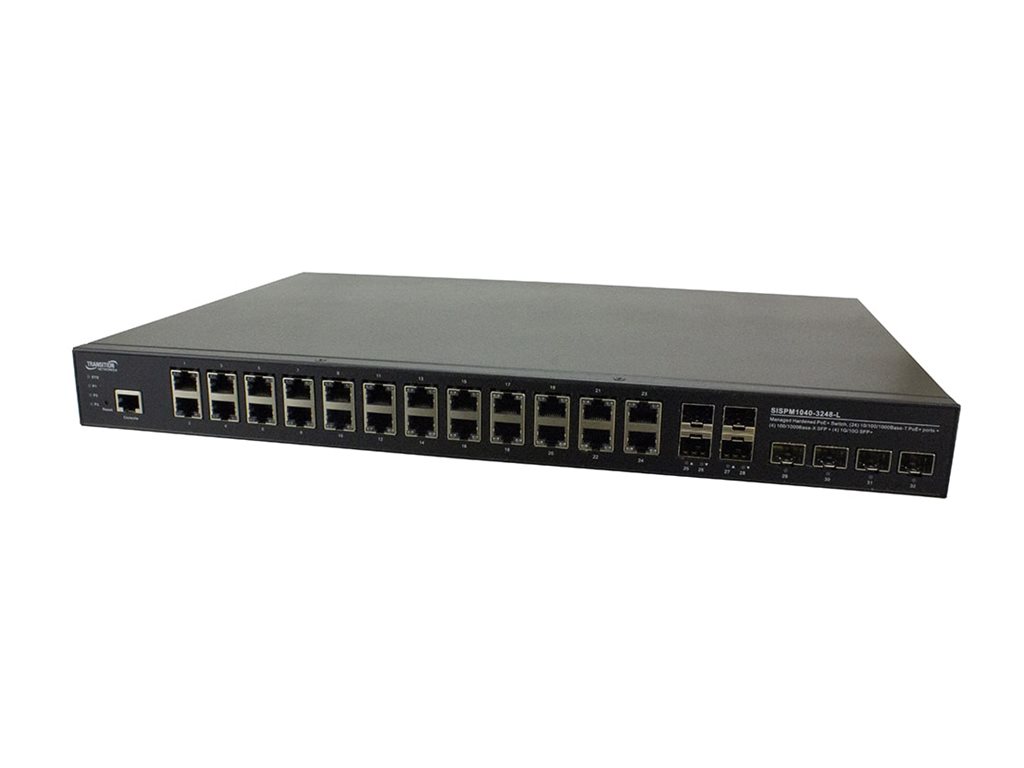

Lantronix SISPM1040-3248-L
MSRP$2,491.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Lantronix SISPM1040-3248-L
- Switch
- managed
- 24 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP + 4 x 10Gb Ethernet SFP+
- rack-mountable
- PoE+ (370 W)
- AC 120/230 V / DC 52
- 57 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,491.00 |
| Mfr Part #: | SISPM1040-3248-L-NA |
| SHI Part #: | 46411954 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Lantronix SISPM1040-3248-L - Switch - managed - 24 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE+ (370 W) - AC 120/230 V / DC 52 - 57 V |
| Manufacturer | Lantronix |
| MSRP | $2,491.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 44.2 cm |
| Header / Brand | Lantronix |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 30 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | ITU-T G.8031, ITU-T G.8032, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731, ITU-T Y.1564, IEEE 1588v2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1ad |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable |
| Features | Hardened, IPv4 support, IPv6 support, DHCP relay, DHCP snooping, DHCP server, ACL support, VLAN support, LLDP support, MRP, Energy Efficient Ethernet, IP source guard, Port Security, port mirroring, Syslog support, fanless, LLDP-MED, PoE scheduling, LACP, IGMP snooping, MLD snooping, MVR, QoS, SP, WRR, MSTP support, RSTP support, STP support, port-based VLAN, tagged VLAN, Q-in-Q tunneling, MAC based VLAN, Private VLAN, Voice VLAN, firmware upgradable, PTP, CSMA/CD, store and forward |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 32K entries |
| Performance | Switching capacity: 136 Gbps |
| PoE Budget | 370 W |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1000Base-X SFP + 4 x 10Gb Ethernet SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, SSH, CLI, TFTP, HTTP, HTTPS |
| Routing Protocol | Static IP routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEC 62439-2, IP30, FCC Class A certified, NEMA TS-2, UL, LVD, IEC 61850-3 |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Voltage Required | AC 100-250/ DC 52-57 V |
