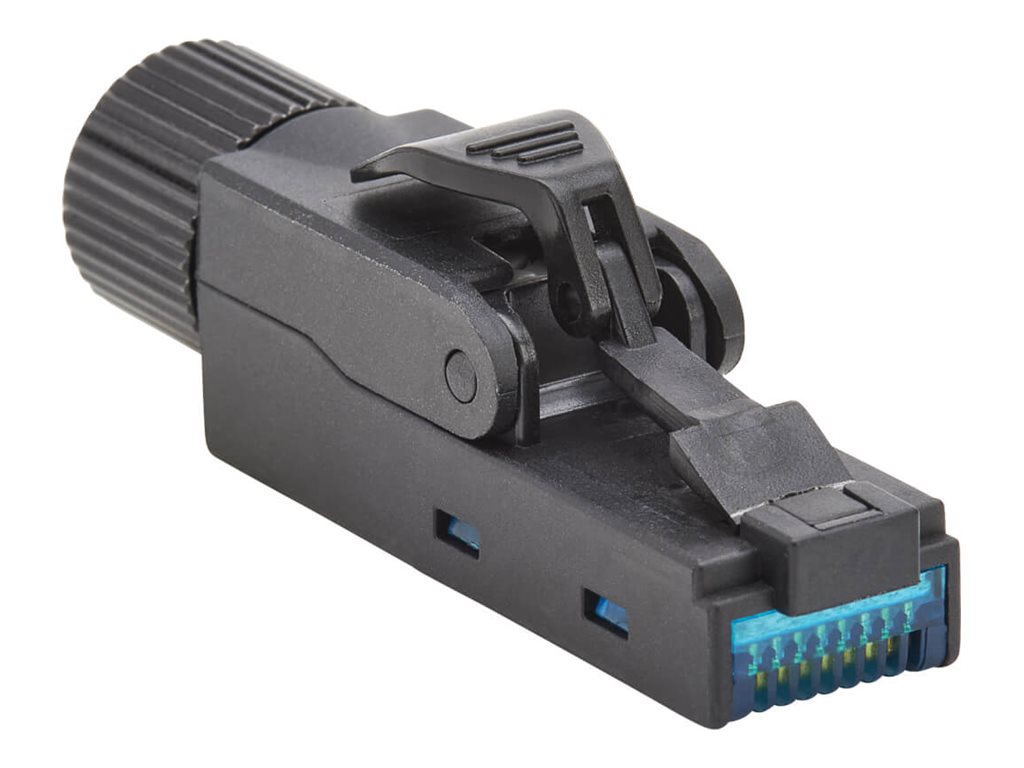

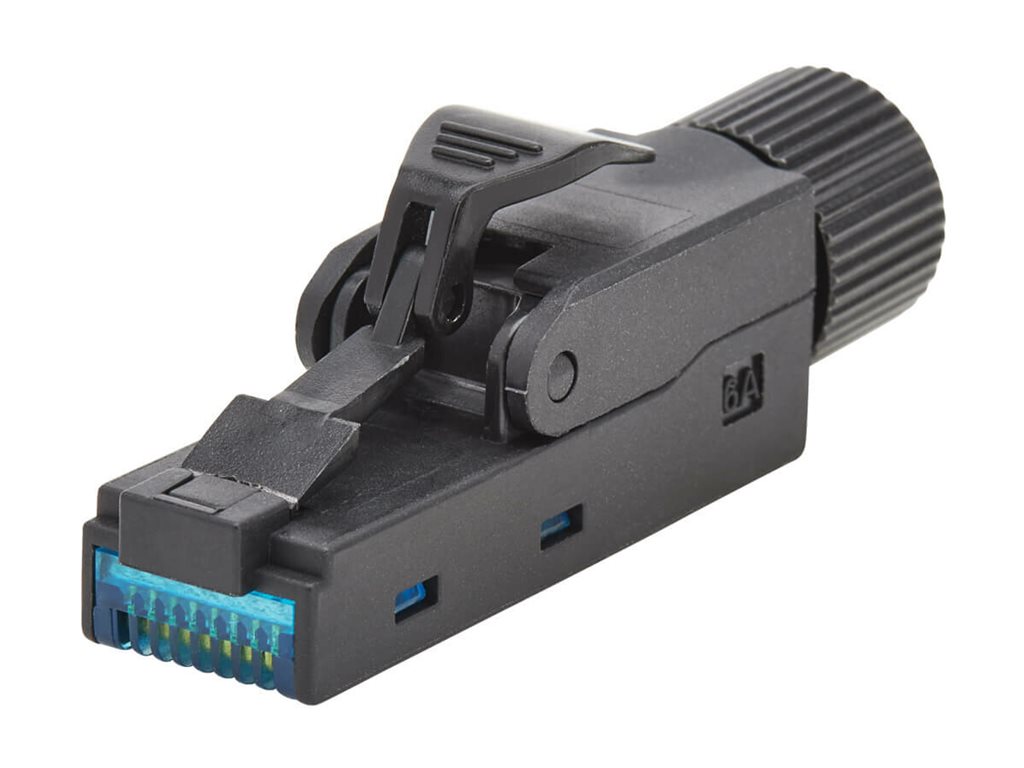

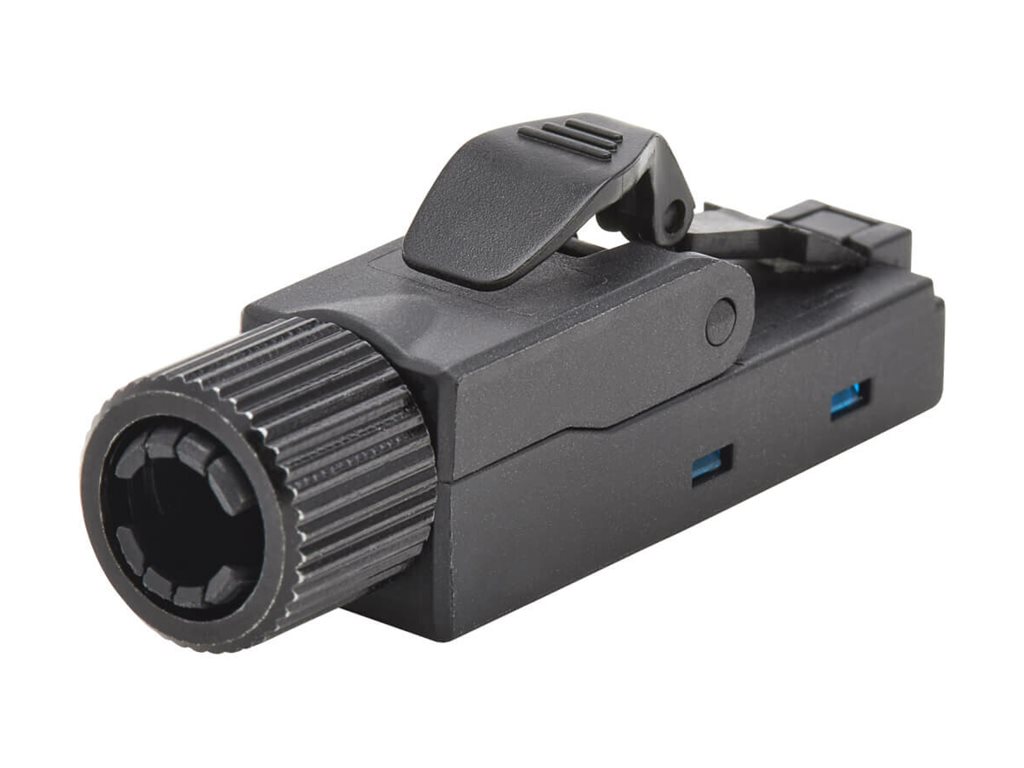

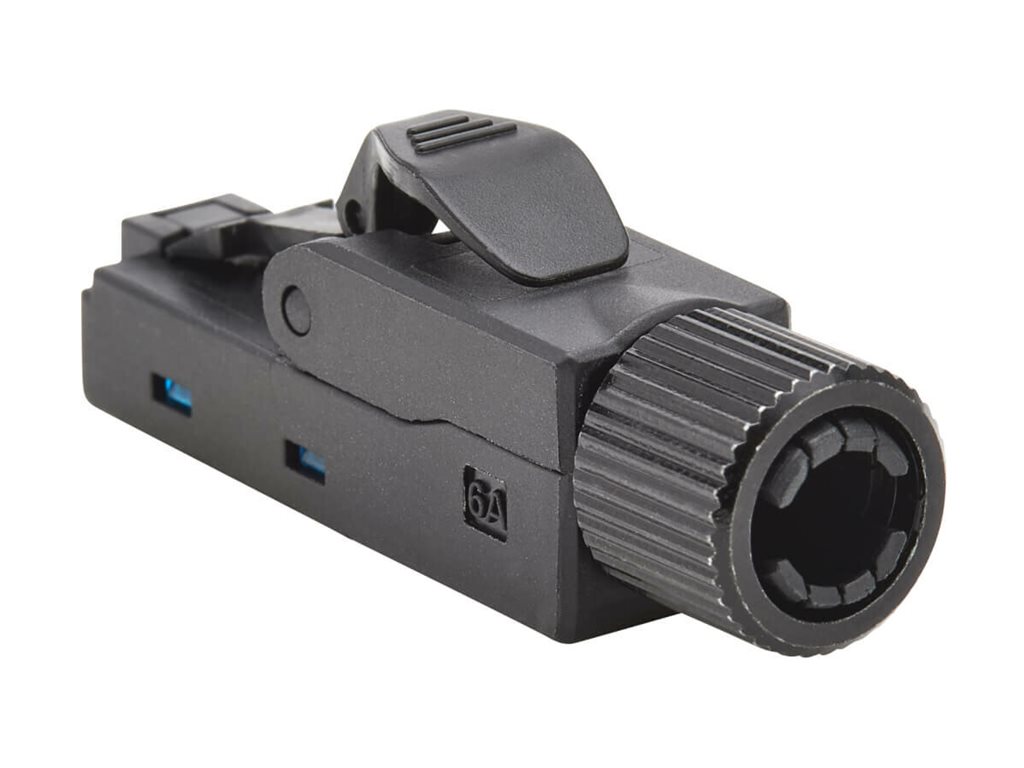

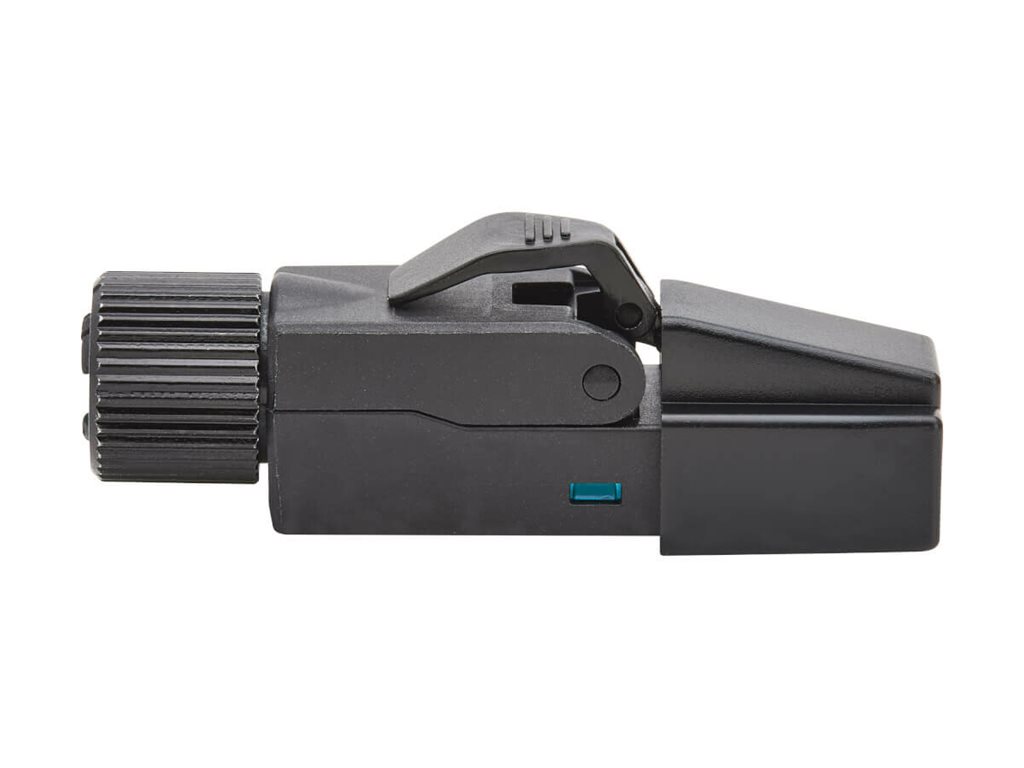

Eaton Tripp Lite Series Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA
MSRP$23.44
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA
- Network connector
- TAA Compliant
- 110 IDC to RJ-45 (M)
- UTP
- 5.5
- 8.5mm
- CAT 6a
- IEEE 802.3bt
- gold plated contacts, Gigabit Ethernet support
- black
- for P/N: N222-01K-BL, N223-01K-BL, N235-001-6A
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $23.44 |
| Mfr Part #: | N232-USC6A-1 |
| SHI Part #: | 46412882 |
| Category: | Network cable |
| UNSPSC: | 26121609 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network cable |
| Description | Eaton Tripp Lite Series Cat6a Class EA UTP Field-Termination Plug, 568A/568B, TAA - Network connector - TAA Compliant - 110 IDC to RJ-45 (M) - UTP - 5.5 - 8.5mm - CAT 6a - IEEE 802.3bt - gold plated contacts, Gigabit Ethernet support - black - for P/N: N222-01K-BL, N223-01K-BL, N235-001-6A |
| Manufacturer | Eaton |
| MSRP | $23.44 |
| UNSPSC | 26121609 |
| Main Specifications | |
| Dimensions & Weight / Height | 1.68 cm |
| Dimensions & Weight / Width | 1.17 cm |
| Header / Brand | Tripp Lite |
| Left Connector Type | 110 IDC |
| Miscellaneous / Product Color | Black |
| Network Cable Type | Network connector |
| Packaged Quantity | 1 |
| Right Connector Type | RJ-45 |
| Compatibility Information | |
| Designed For | P/N: N222-01K-BL, N223-01K-BL, N235-001-6A |
| Connectivity | |
| Connector | 110 IDC |
| Connector (Second End) | RJ-45 - male |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| General | |
| American Wire Gauge (AWG) | 27/23 |
| Color | Black |
| Depth | 4.7 cm |
| Features | Gold plated contacts, Gigabit Ethernet support, Power over Ethernet (PoE), 100 Watt maximum input power, field assembly, toolless, PoE++ ready, IDC termination style |
| Height | 1.68 cm |
| Network Cable Type | Network connector - CAT 6a - IEEE 802.3bt |
| Technology | UTP |
| Width | 1.17 cm |
| Wiring Scheme | T568A/B |
| Miscellaneous | |
| Compliant Standards | IP20, CAN/CSA C22.2 No. 182.4-M90, UL 1863, UL 2043, UKCA, RoHS |
| TAA Compliant | Yes |
