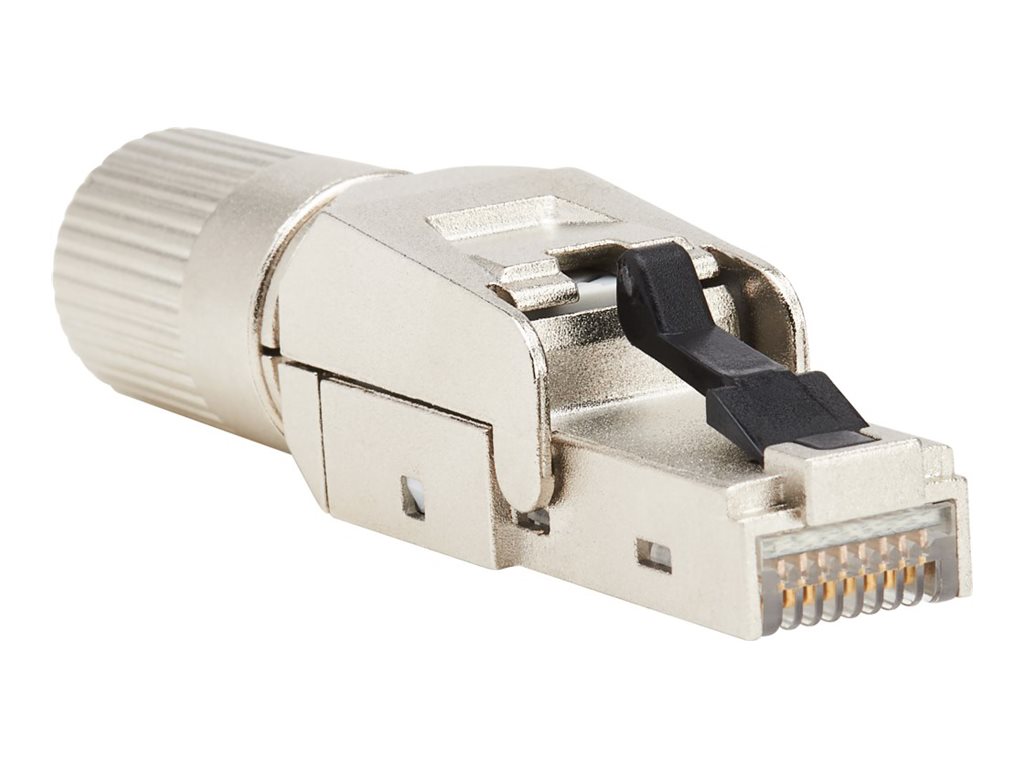

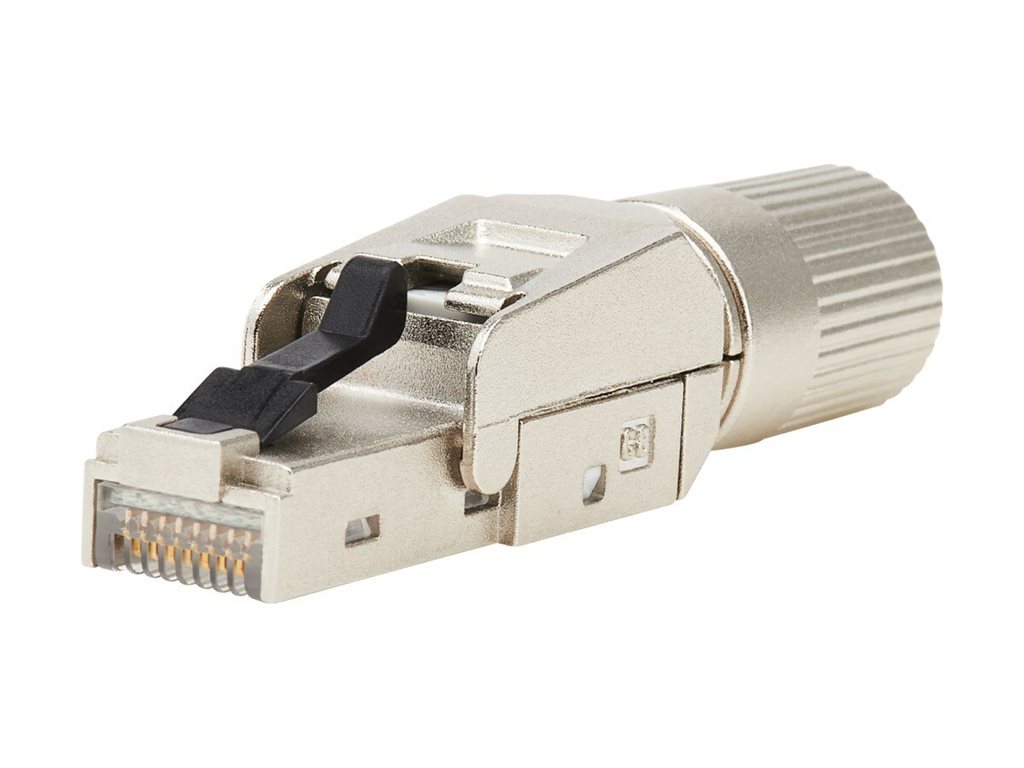

Eaton Tripp Lite Series Cat8 STP Class 1 Field-Termination Plug, 568A/568B, TAA
MSRP$46.90
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series Cat8 STP Class 1 Field-Termination Plug, 568A/568B, TAA
- Network connector
- 110 IDC to RJ-45 (M)
- STP
- 6
- 9 mm
- CAT 8
- IEEE 802.3bt
- gold plated contacts, Ethernet support
- silver
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $46.90 |
| Mfr Part #: | N233-SHC8-1 |
| SHI Part #: | 46412883 |
| Category: | Network cable |
| UNSPSC: | 26121609 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network cable |
| Description | Eaton Tripp Lite Series Cat8 STP Class 1 Field-Termination Plug, 568A/568B, TAA - Network connector - 110 IDC to RJ-45 (M) - STP - 6 - 9 mm - CAT 8 - IEEE 802.3bt - gold plated contacts, Ethernet support - silver |
| Manufacturer | Eaton |
| MSRP | $46.90 |
| UNSPSC | 26121609 |
| Main Specifications | |
| Dimensions & Weight / Height | 1.51 cm |
| Dimensions & Weight / Width | 5.97 cm |
| Header / Brand | Tripp Lite |
| Left Connector Type | 110 IDC |
| Miscellaneous / Product Color | Silver |
| Network Cable Type | Network connector |
| Packaged Quantity | 1 |
| Right Connector Type | RJ-45 |
| Service & Support / Type | Limited lifetime warranty |
| Connectivity | |
| Connector | 110 IDC |
| Connector (Second End) | RJ-45 - male |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| General | |
| American Wire Gauge (AWG) | 22/27 |
| Color | Silver |
| Depth | 1.51 cm |
| Features | Gold plated contacts, Ethernet support, IDC termination style, up to 40 Gbps, 100 Watt maximum input power, toolless |
| Height | 1.51 cm |
| Network Cable Type | Network connector - CAT 8 - IEEE 802.3bt |
| Technology | STP |
| Width | 5.97 cm |
| Wiring Scheme | T568A/B |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | IP20, RoHS, UKCA |
