Hardware Networking and Security Access Points and Bridges
Add to My Favorites
Access Points and Bridges

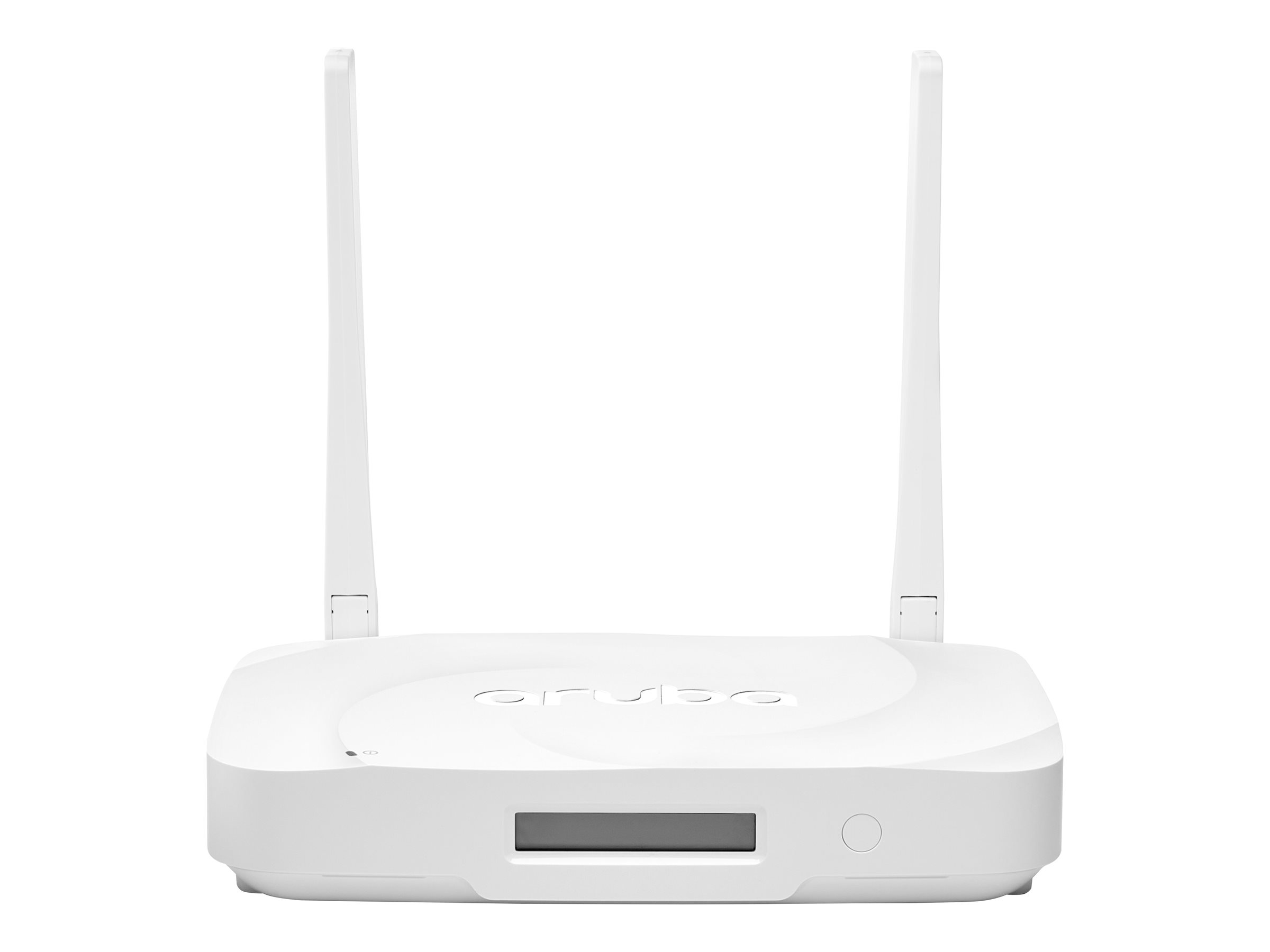

HPE Aruba Networking AP-605R (IL)

MSRP$1,795.00
$1,319.00
HPE Aruba Networking AP-605R (IL)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Wireless access point
  • Wi-Fi 6
  • Wi-Fi 6E, Bluetooth, ZigBee
  • 2.4 GHz, 5 GHz, 6 GHz
  • desktop
HPE Aruba Networking AP-605R (IL)
  • Wireless access point
  • Wi-Fi 6
  • Wi-Fi 6E, Bluetooth, ZigBee
  • 2.4 GHz, 5 GHz, 6 GHz
  • desktop
  • TAA Compliant
  Additional Details
Price: $1,319.00
MSRP: $1,795.00
Mfr Part #: R8N12A
SHI Part #: 46438769
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryWireless access point
DescriptionHPE Aruba Networking AP-605R (IL) - Wireless access point - Wi-Fi 6 - Wi-Fi 6E, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - desktop - TAA Compliant
ManufacturerHewlett Packard Enterprise
MSRP$1,795.00
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth15 cm
Dimensions & Weight / Height4 cm
Dimensions & Weight / Weight900 g
Dimensions & Weight / Width22.5 cm
Header / BrandHPE
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • ZigBee
Networking / Data Transfer Rate3.6 Gbps
Networking / Form FactorDesktop
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredArubaOS 10.5.0.0
Antenna
AntennaExternal integrated
Antenna Qty2
DirectivityOmni-directional
Dimensions & Weight (Shipping)
Shipping Depth30.9 cm
Shipping Height10.7 cm
Shipping Weight1.935 kg
Shipping Width37.3 cm
Environmental Parameters
Humidity Range Operating5 - 95% RH
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T - RJ-45
  • 1 x 2.5 GBase-T (PoE+) - RJ-45
  • 3 x 1000Base-T (PoE) - RJ-45
  • 1 x USB 2.0 - Type A
  • 1 x console - micro-USB
General
Depth15 cm
Device TypeWireless access point
Height4 cm
Ruggedized DesignIndoor
Weight900 g
Width22.5 cm
Internet of Things (IoT)
Communications TechnologyBluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) CompatibleYes
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Cables Included1 x AC power cable
Compliant StandardsETS 300 019 Class 3.2, FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN 60601-1-2
MTBF80 years
TAA CompliantYes
Networking
Capacity
  • Associated client devices per radio: 512
  • BSSIDs per radio: 16
  • OFDMA units: 8
Compliant StandardsIEEE 802.11b, IEEE 802.3az, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3at, Wi-Fi CERTIFIED, Wi-Fi CERTIFIED 6E
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0, ZigBee
Data Transfer Rate3.6 Gbps
Encryption AlgorithmWPA, WPA2, WPA3-Enhanced Open
FeaturesDFS support, Wi-Fi Multimedia (WMM) support, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Target Wait Time (TWT), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), packet aggregation A-MSDU, packet aggregation A-MPDU, High-Throughput (HT) support, 2x2 MIMO technology, Very High Throughput (VHT) support, High Efficiency (HE) support, Trusted Platform Module (TPM), security slot (Kensington security lock compatible), PoE Class 3, Tri-Band 2x2
Form FactorDesktop
Frequency Band2.4 GHz, 5 GHz, 6 GHz
Line Coding FormatBPSK, QPSK, CCK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM
Performance
  • Maximum data rate (5 GHz + 6 GHz bands): 3.6 Gbps
  • Maximum data rate (2.4 GHz): 574 Mbps
  • Maximum data rate (5 GHz): 1.2 Gbps
  • Maximum data rate (6 GHz): 2.4 Gbps
Spread Spectrum MethodDSSS, OFDM, OFDMA
Status IndicatorsPower, system, status
Power
Power DeviceExternal power adapter
Power Over Ethernet (PoE) SupportedPoE+
Software / System Requirements
OS RequiredArubaOS 10.5.0.0
