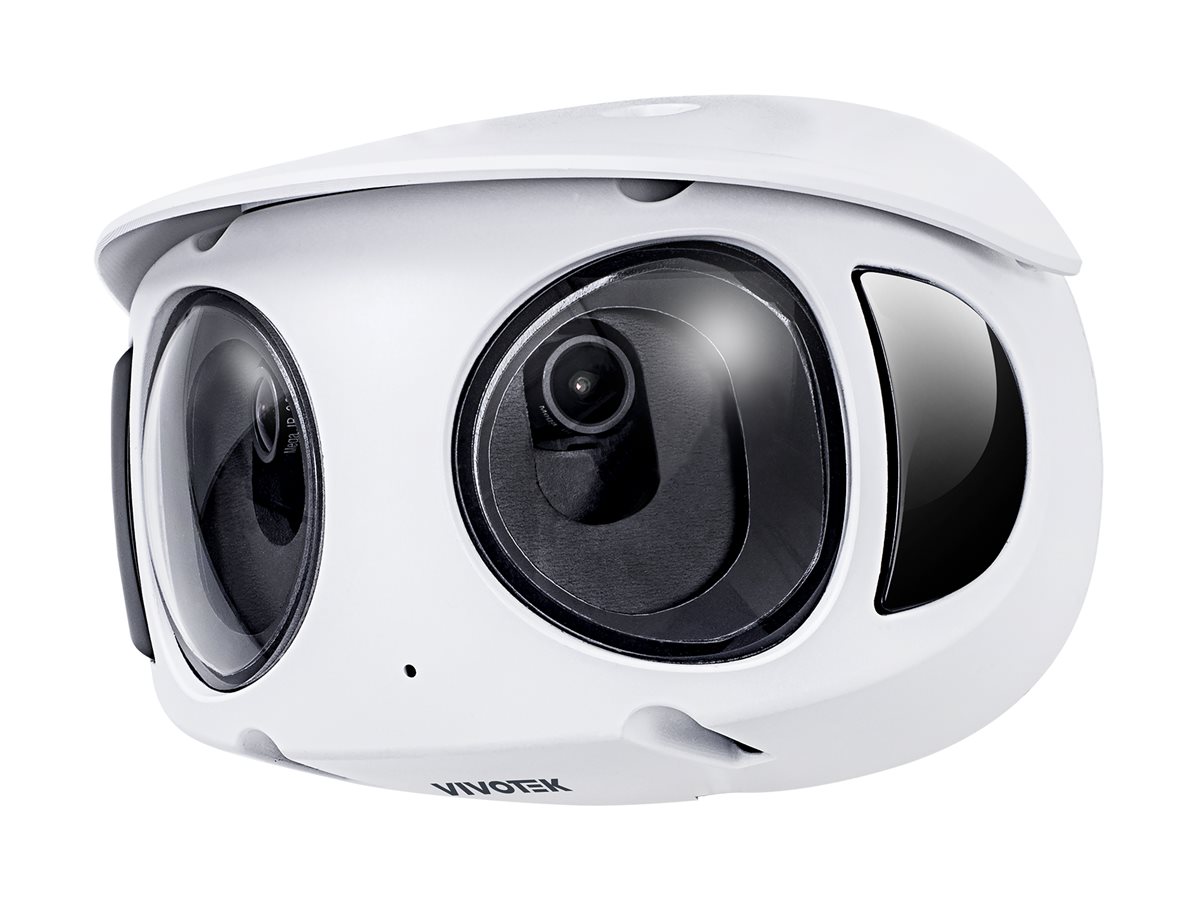

Vivotek VORTEX Premium MS930-EHV
MSRP$2,333.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek VORTEX Premium MS930-EHV
- Panoramic camera
- outdoor, indoor
- water resistant / vandal resistant
- color (Day&Night)
- 8 MP
- 4864 x 1632
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,333.00 |
| Mfr Part #: | MS930-EHV-1Y |
| SHI Part #: | 47229377 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Vivotek VORTEX Premium MS930-EHV - Panoramic camera - outdoor, indoor - water resistant / vandal resistant - color (Day&Night) - 8 MP - 4864 x 1632 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 4 |
| Manufacturer | Vivotek |
| MSRP | $2,333.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.2 cm |
| Dimensions & Weight / Height | 9.7 cm |
| Dimensions & Weight / Weight | 1.2 kg |
| Dimensions & Weight / Width | 16.5 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/30 sec - 1/32000 sec |
| Features | Supreme Night Visibility, 3D Noise Reduction Technology, Smart Stream II, WDR technology, Smart VCA, 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, LED indicator, Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, Pixel Calculator, e-mail alerts, shock detection, Audio Detection, Camera Tampering Detection, brute force delay protection, embedded SOC processor, Wide Dynamic Range (WDR) Pro, adjustable gain control, white balance |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 4864 x 1632 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor, indoor - water resistant / vandal resistant |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 90% |
| Expansion / Connectivity | |
| Encryption Algorithm | TLS 1.2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, G.711, MPEG2 AAC-LC |
| Audio Support | Yes: one-way audio capability |
| Connectivity Technology | Wired |
| Depth | 11.2 cm |
| Device Type | Panoramic camera |
| Height | 9.7 cm |
| Weight | 1.2 kg |
| Width | 16.5 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, UDP, UPnP |
| Lens Construction | |

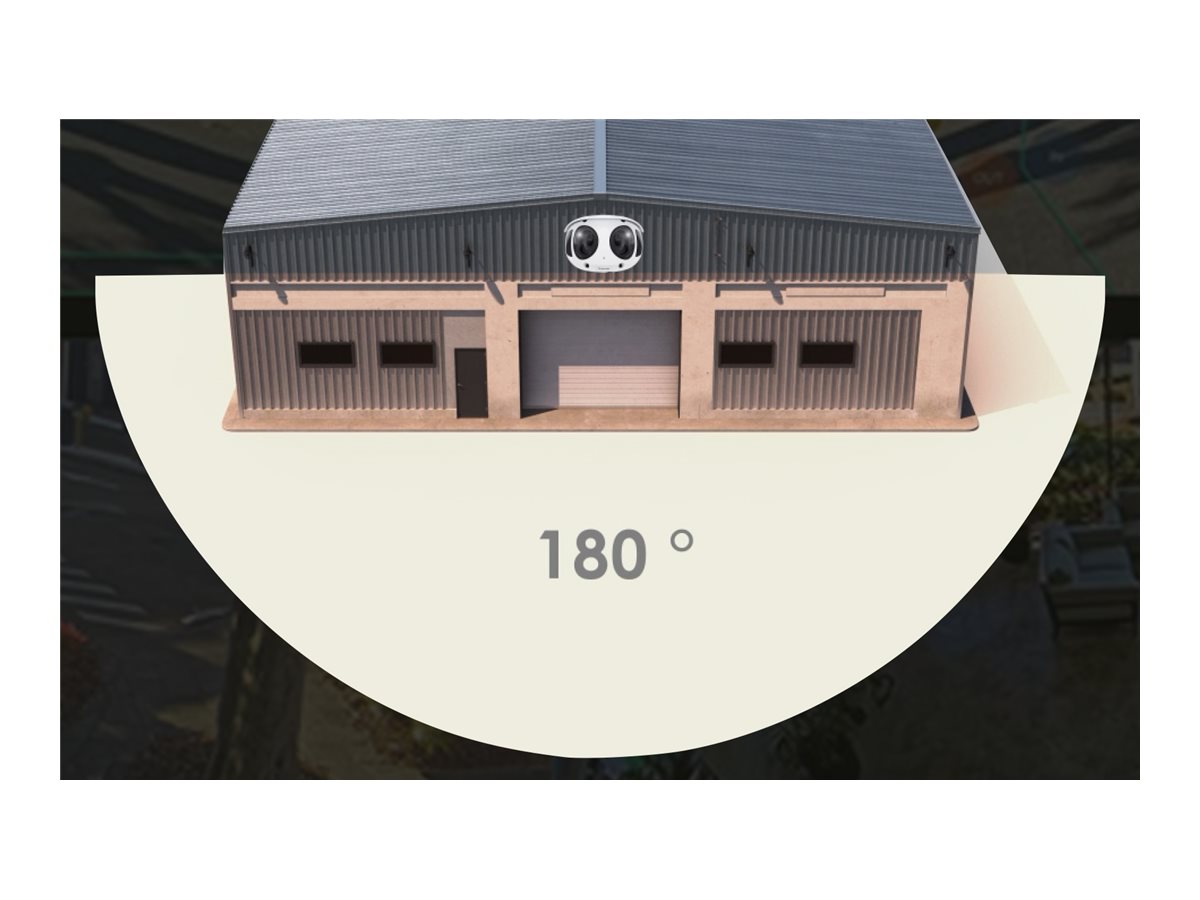

| Diagonal Field of View (degree) | 180 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 180 |
| Lens Iris | F/1.2 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 50 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IK10, NDAA, EN 55035 Class A, EN 55032, UKCA, FCC Part 15 Subpart B, RCM, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL 62368-1, IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471, BS EN IEC 62368-1, IEC 62262 IK10, IEC 60529 IP66, IS 13252, CNS 15936, CNS 15598-1:2020 |
| Included Accessories | Alignment sticker, desiccant bag, screwdriver, screw pack, sunshield, rubber bracket cover, waterproof cover, mounting bracket, Torx T10 screw driver |
| Power | |
| Power Device | 20 watt |
| Power Requirements | PoE Class 4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12, Google Chrome OS 58 or later |
| Software Included | VORTEX VSaaS xPro License (1 year) |
| Tilting | |
| Range (degree) | 20 |
