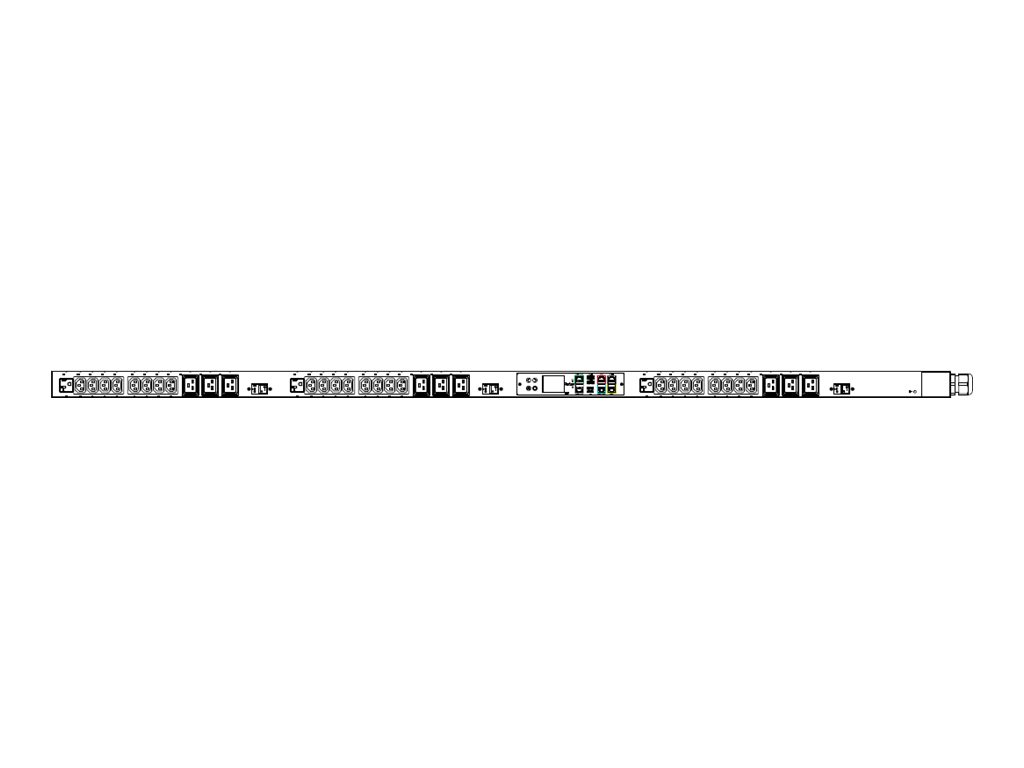

Raritan PX3-5958U - Power distribution strip (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-5958U - Power distribution strip (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase WYE
- RS-232, USB, Ethernet 10/100/1000
- input: NEMA L21-30P
- output connectors: 36 (9 x IEC 60320 C19, 24 x IEC 60320 C13, 3 x NEMA 5-20R)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5958U |
| SHI Part #: | 47645179 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5958U - Power distribution strip (rack-mountable) - AC 208 V - 8600 VA - 3-phase WYE - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L21-30P - output connectors: 36 (9 x IEC 60320 C19, 24 x IEC 60320 C13, 3 x NEMA 5-20R) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,967.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 205.5 cm |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A |
| Features | Vertical orientation, LCD display, current meter, LED indicators, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, rotating display, top-end feed cord entry, 3 x LEGBXA66-20 overload protection, power cable IP44 compliant, cord retention, voltage meter, environmental sensor ready, Power IQ technology, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 30 A |
| Output Voltage | AC 120 V |
| Power Capacity | 8600 VA |
| Power Capacity Details | 8.6 kVA at 208 V, 7.9 kVA at 190 V |
| Power Output Connectors Details |
|
