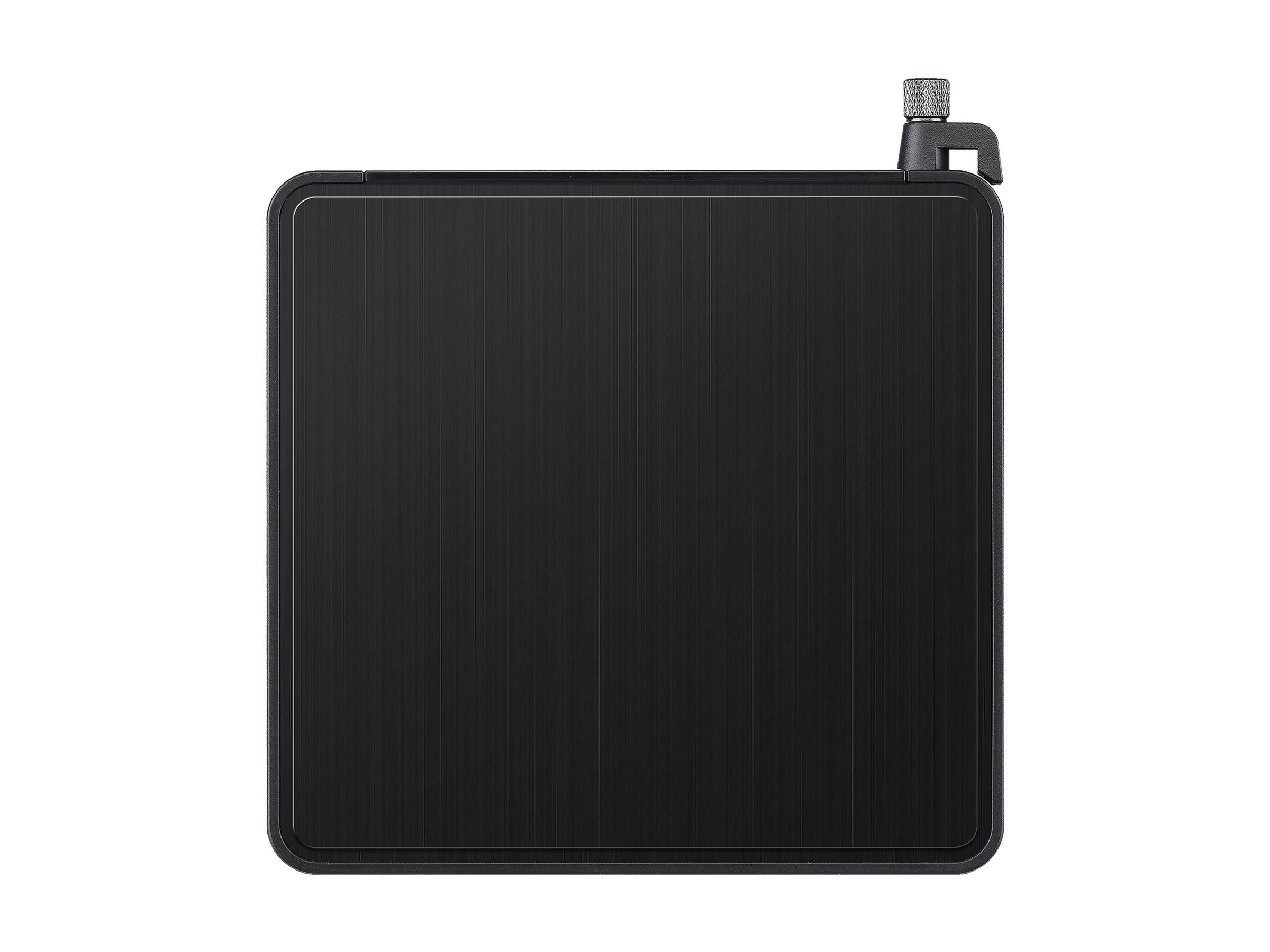

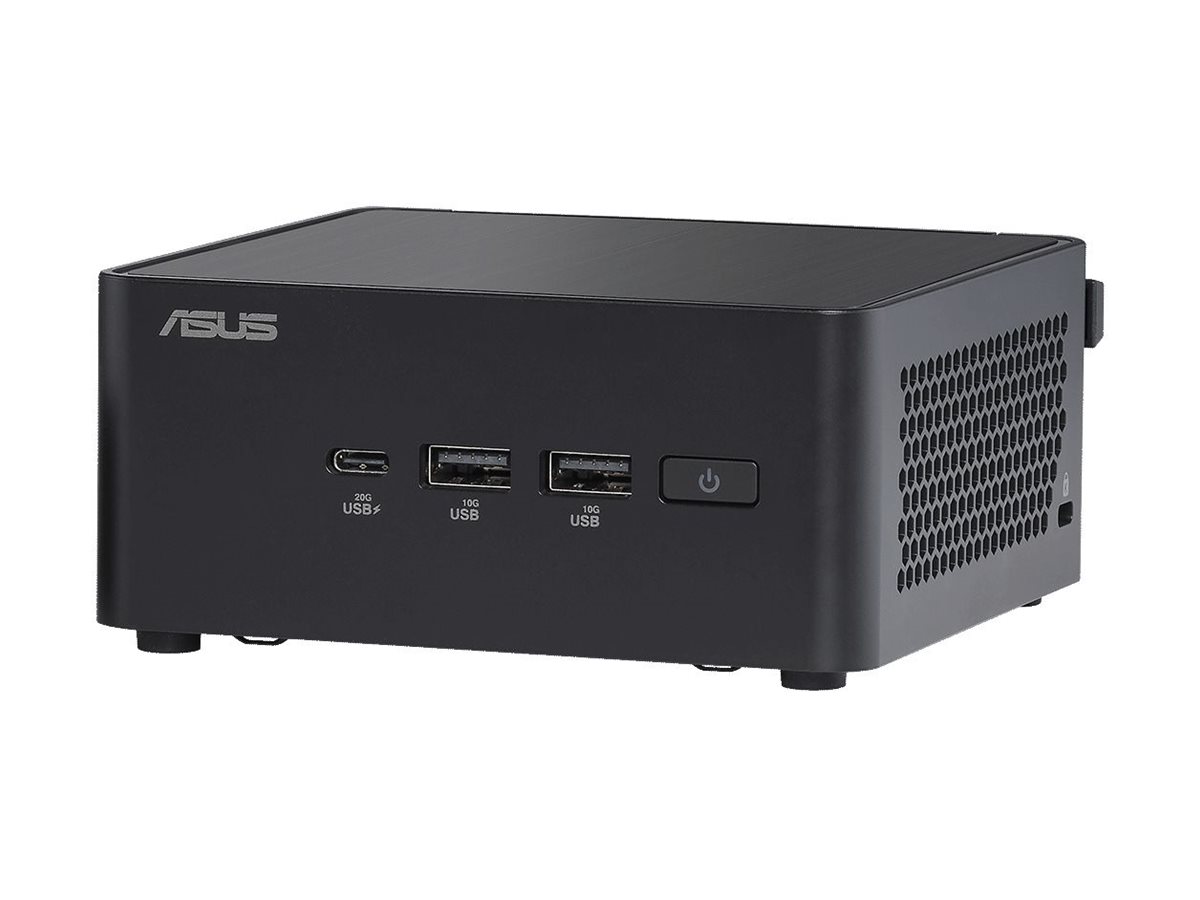

ASUS NUC 14 Pro Tall Kit RNUC14RVHV70000UI

MSRP$995.00
$973.00
ASUS NUC 14 Pro Tall Kit RNUC14RVHV70000UI
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Barebone
  • mini PC 1 x Core Ultra 7 165H / up to 5 GHz
  • RAM 0 GB
  • Intel Arc Graphics
  • Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
ASUS NUC 14 Pro Tall Kit RNUC14RVHV70000UI
  • Barebone
  • mini PC 1 x Core Ultra 7 165H / up to 5 GHz
  • RAM 0 GB
  • Intel Arc Graphics
  • Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
  • black
  Additional Details
Price: $973.00
MSRP: $995.00
Mfr Part #: RNUC14RVHV70000UI
SHI Part #: 47686286
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: ASUS
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionASUS NUC 14 Pro Tall Kit RNUC14RVHV70000UI - Barebone - mini PC 1 x Core Ultra 7 165H / up to 5 GHz - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - black
ManufacturerASUS
MSRP$995.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth11.2 cm
Dimensions & Weight / Height5.4 cm
Dimensions & Weight / Weight570 g
Dimensions & Weight / Width11.7 cm
Display / TypeNone.
Header / BrandASUS
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.3
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeNo operating system
Packaged Quantity1
Processor / Clock Speed1.4 GHz
Processor / GenerationSeries 1
Processor / ManufacturerIntel
Processor / Number of Cores16-core
Processor / Processor Number165H
Processor / TypeCore Ultra 7
RAM / Form FactorSO-DIMM 262-pin
RAM / TechnologyDDR5 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity0 GB
System / TypePC barebone
Video Output / Graphics ProcessorIntel Arc Graphics
Cache Memory
Cache Per Processor24 MB
Installed Size24 MB
Dimensions & Weight
Depth11.2 cm
Height5.4 cm
Weight570 g
Width11.7 cm
Expansion / Connectivity
Bays1 (total) / 1 (free) x internal 2.5"

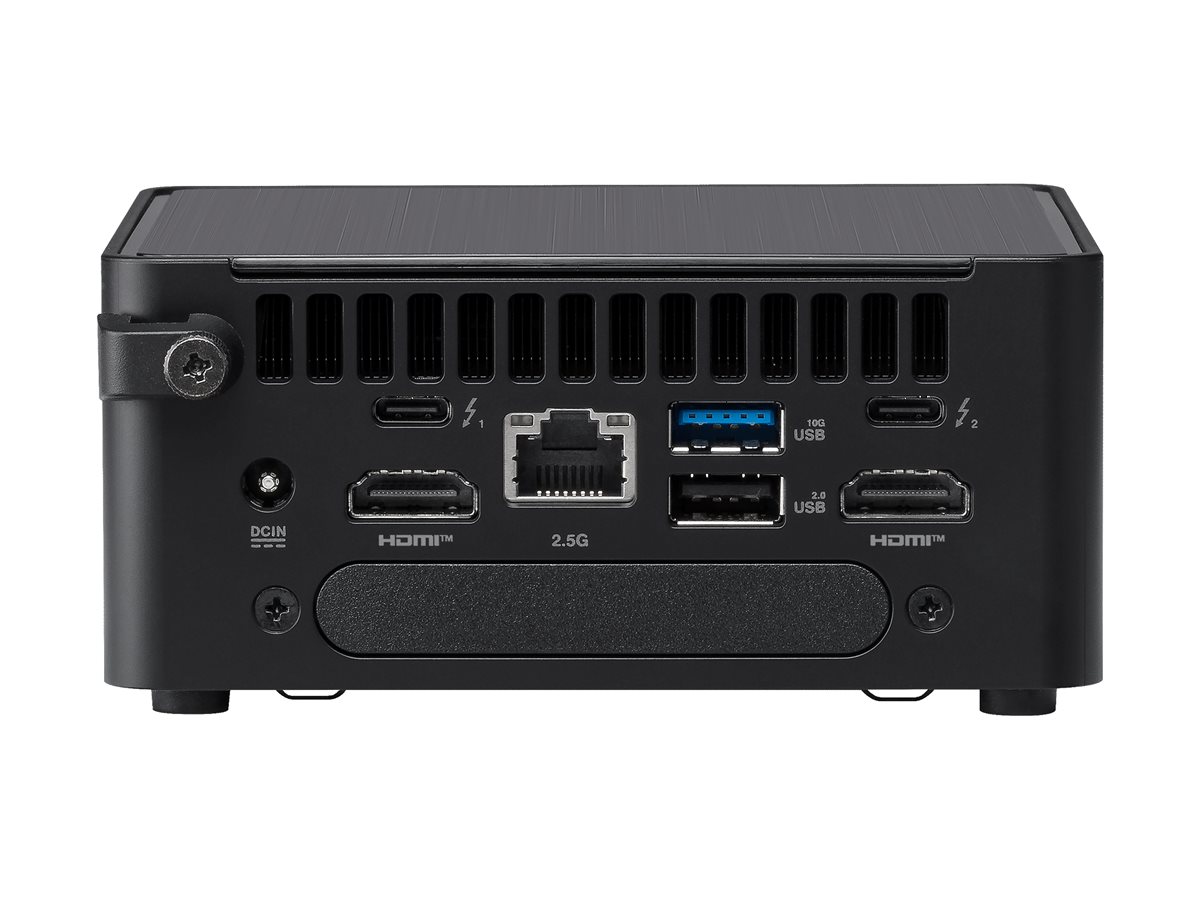

Interfaces
  • 3 x USB 3.2 Gen 2 (2 front, 1 rear)
  • 2 x Thunderbolt 4 (2 rear)
  • 2 x HDMI (2 rear)
  • 1 x LAN (2.5Gigabit Ethernet) (1 rear)
  • 1 x USB-C 3.2 Gen 2x2 (1 front)
  • 1 x USB 2.0 (1 rear)
Slots
  • 1 (total) / 1 (free) x M.2 Card - 2280
  • 1 (total) / 1 (free) x M.2 Card - 2242
General
ColorBlack
Product Form FactorMini PC
TypePC barebone
Graphics Controller
Graphics ProcessorIntel Arc Graphics
Video InterfacesHDMI
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
Monitor
Monitor TypeNone.
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3
Wireless LAN SupportedYes
Neural Processor Unit (NPU)
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
Sparsity SupportYes
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedNo operating system
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Provided120 Watt
Processor / Chipset
Clock Speed1.4 GHz (P-core) / 700 MHz (E-core)
CPUIntel Core Ultra 7 (Series 1) 165H
CPU Qty1
Max CPU Qty1
Max Turbo Speed5 GHz (P-core) / 3.8 GHz (E-core)
Number of Cores16-core
Processor Main FeaturesIntel Smart Cache
RAM
Form FactorSO-DIMM 262-pin
Installed Size0 GB (installed) / 96 GB (max)
Slots2 (total) / 2 (empty)
TechnologyDDR5 SDRAM
