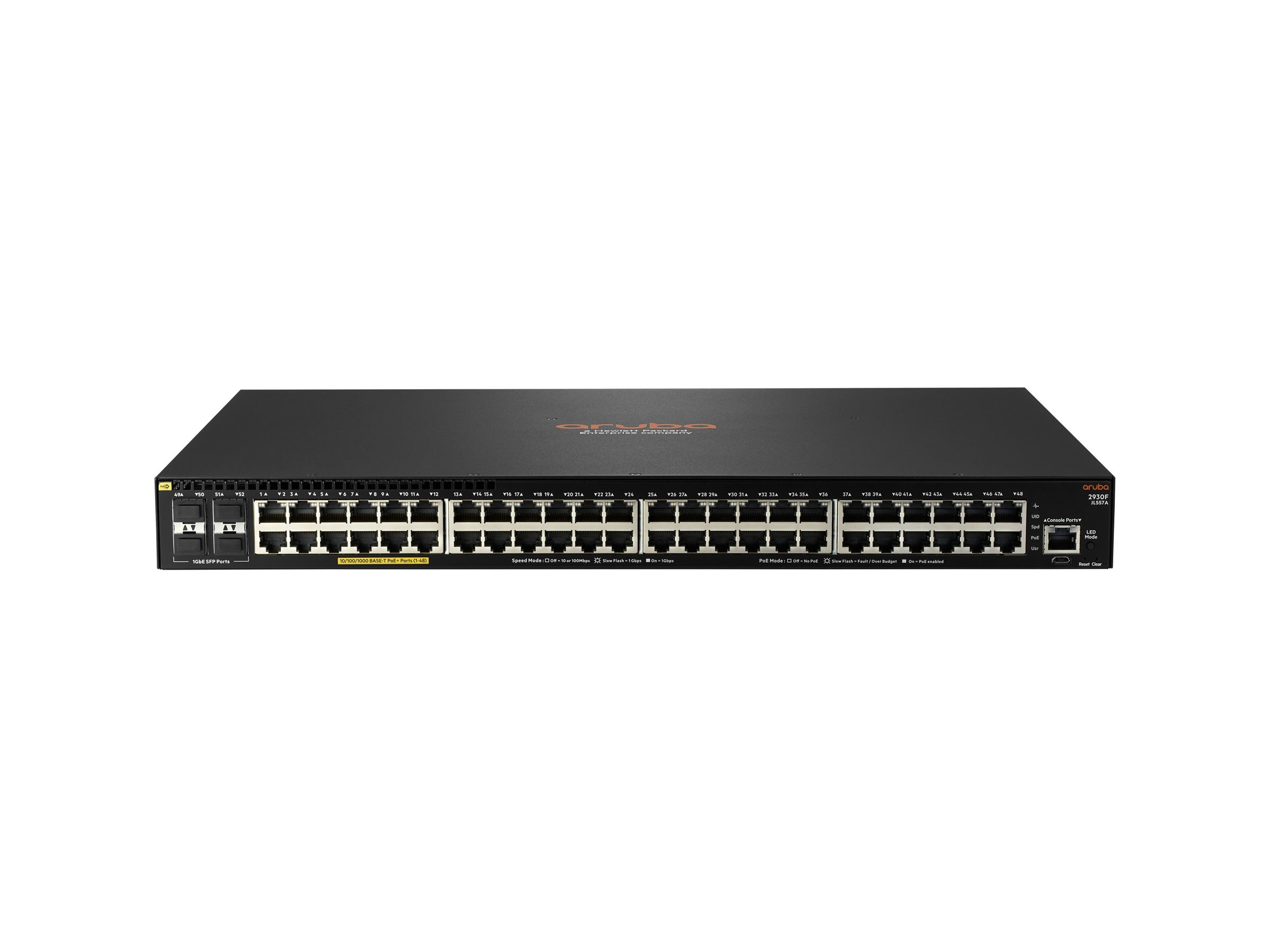

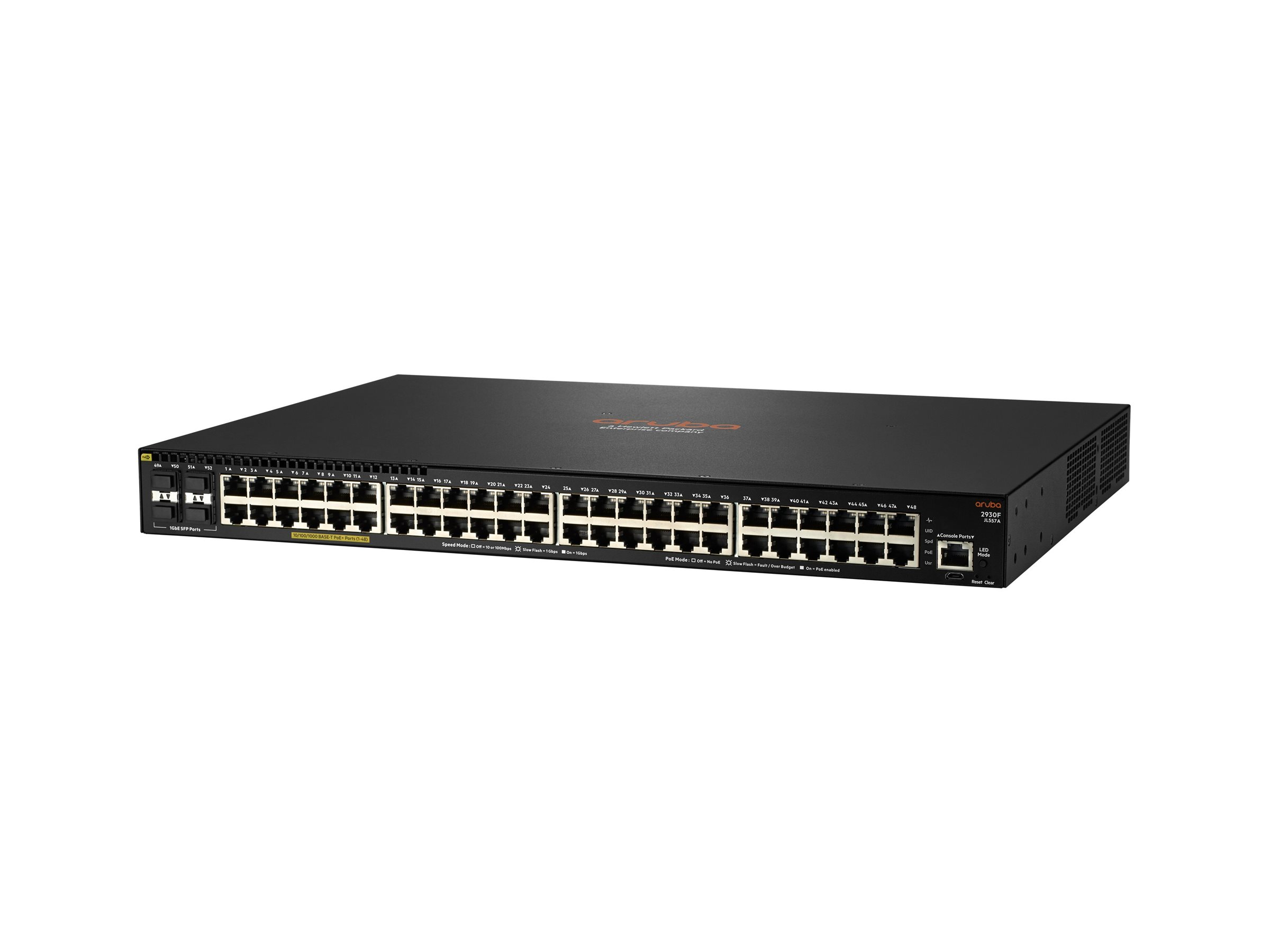

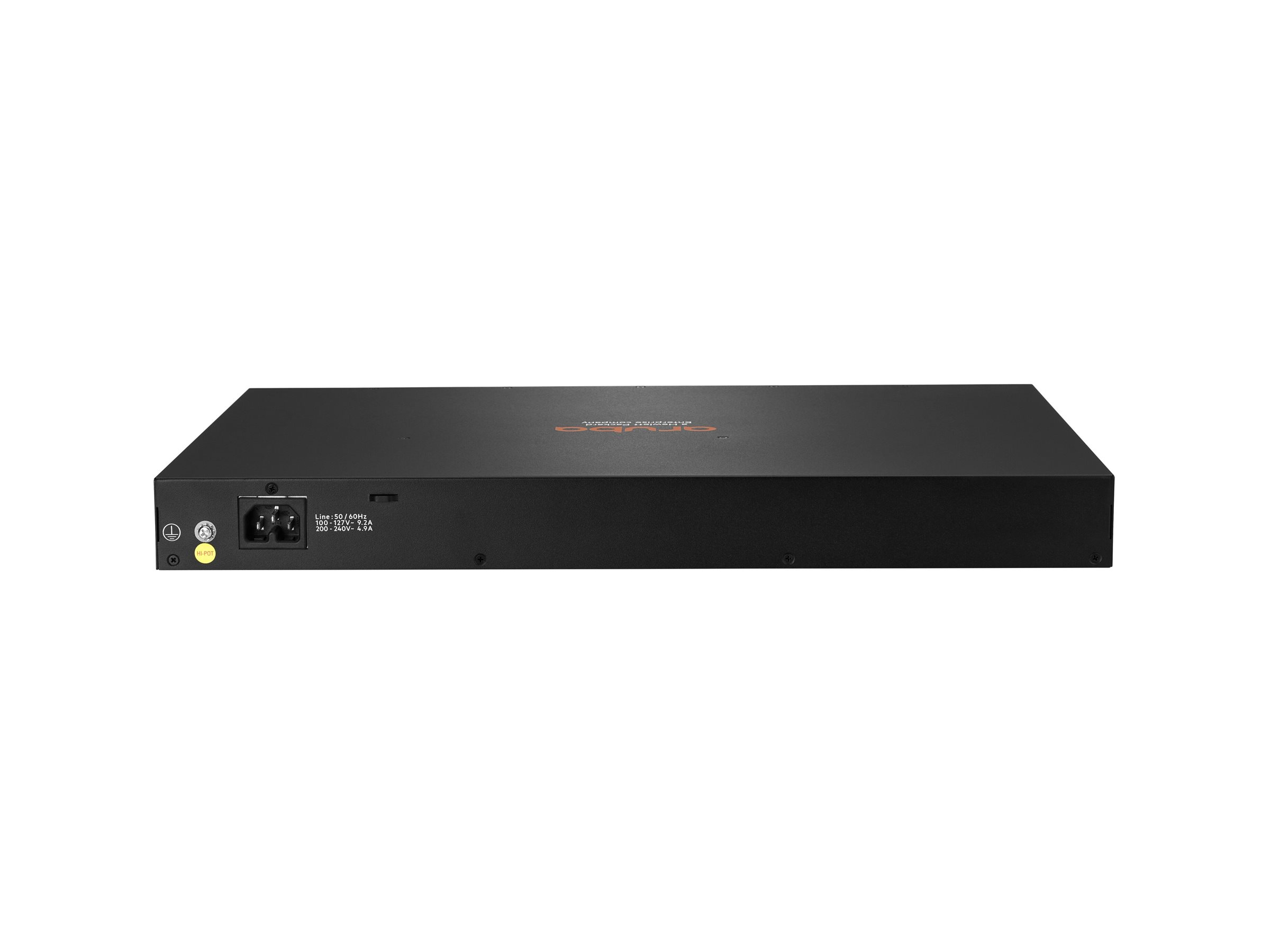

ARUBA 2930F 48GPOE+4SFP 740WSWCH PL-35
MSRP$10,034.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ARUBA 2930F 48GPOE+4SFP 740WSWCH PL-35
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $10,034.00 |
| Mfr Part #: | JL557A#AC3 |
| SHI Part #: | 47686581 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | HPE - STORAGE |
| Product Type: | Hardware |
| Product Line: | HPE - Storage |
| General Information | |
|---|---|
| Category | Network switches |
| Description | ARUBA 2930F 48GPOE+4SFP 740WSWCH PL-35 |
| Manufacturer | HPE - STORAGE |
| MSRP | $10,034.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Height | 0.00 |
| Length | 0.00 |
| UPC | 0190017219455 |
| Width | 0.00 |
| Dimensions & Weight | |
| Depth | 30.42 cm |
| Height | 4.39 cm |
| Weight | 4.46 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | MD5, SSL |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Flash Memory | 4 GB |
| MAC Address Table Size | 32K entries |
| Performance |
|
| PoE Budget | 740 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Included Accessories | Mounting screws, 4 mounting ears, 4 bumper feet, cable tie |
| Power | |
| 80 PLUS Certification | 80 PLUS Silver |
| Installed Qty | 1 |
| Power Consumption Operational | 48.6 Watt |
| Power Device | Internal power supply |
| Power Provided | 459 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center |
