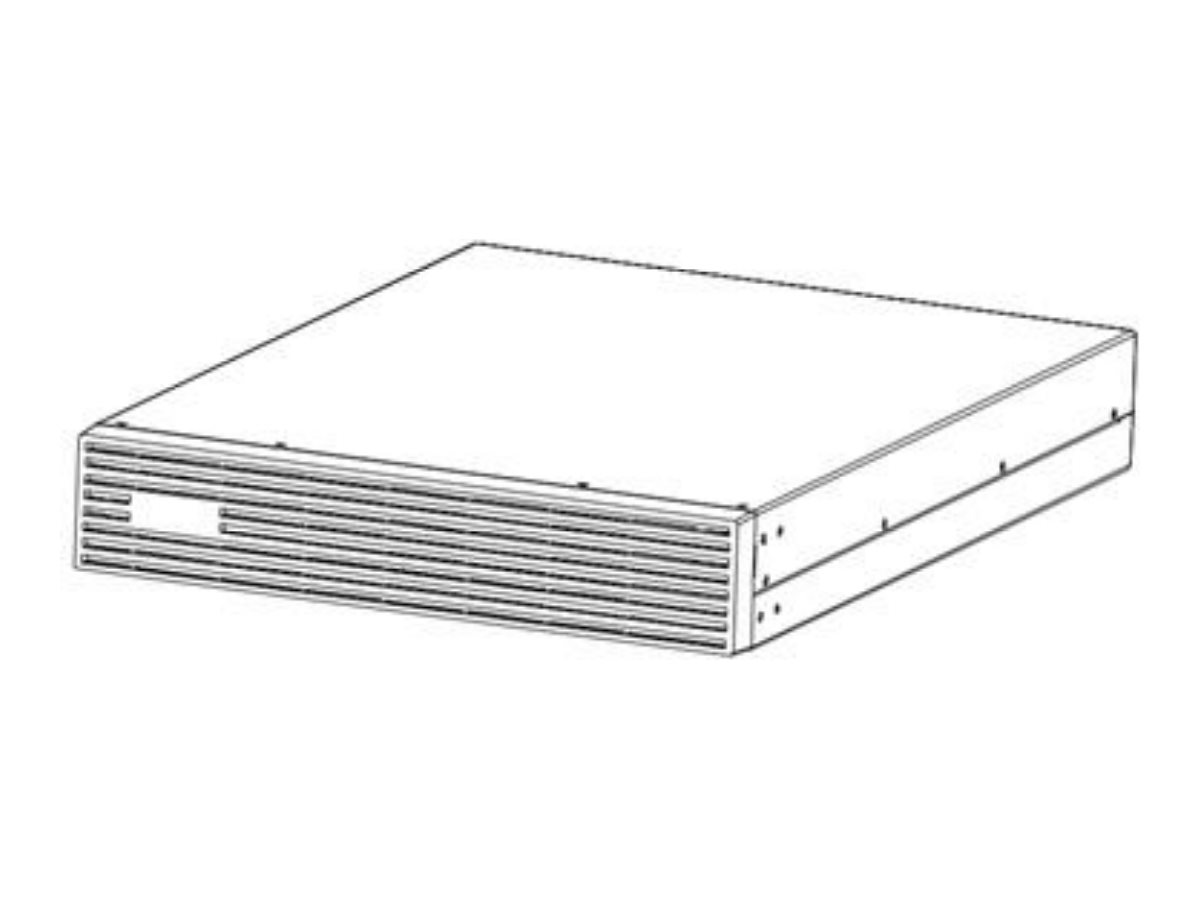

Minuteman Endeavor ED-5KTF
MSRP$3,965.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Minuteman Endeavor ED-5KTF
- Transformer (rack-mountable / external)
- AC 208/240 V
- 4275 Watt
- 5000 VA
- 1-phase
- output connectors: 7
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,965.00 |
| Mfr Part #: | ED-5KTF |
| SHI Part #: | 47775754 |
| Category: | Power adapters or inverters |
| UNSPSC: | 39121006 |
| Manufacturer: | Minuteman UPS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power adapters or inverters |
| Description | Minuteman Endeavor ED-5KTF - Transformer (rack-mountable / external) - AC 208/240 V - 4275 Watt - 5000 VA - 1-phase - output connectors: 7 |
| Manufacturer | Minuteman UPS |
| MSRP | $3,965.00 |
| UNSPSC | 39121006 |
| Main Specifications | |
| Dimensions & Weight / Depth | 60.5 cm |
| Dimensions & Weight / Height | 8.65 cm |
| Dimensions & Weight / Weight | 55 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | MINUTEMAN |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required | AC 208/240 V |
| Product Type | Transformer |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 60.5 cm |
| Height | 8.65 cm |
| Weight | 55 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 83 cm |
| Shipping Height | 24 cm |
| Shipping Weight | 61 kg |
| Shipping Width | 59.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Transformer - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 61 cm |
| Compliant Standards | cUL, UL 1778, FCC Class A certified, RoHS2, Directive 2014/30/EU |
| Features | Isolated, Step-Down Transformer |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208/240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 110/120 V |
| Output Waveform | Sinewave |
| Power Capacity | 4275 Watt / 5000 VA |
| Power Output Connectors Details |
|
| Total Harmonic Distortion (THD) | 4 % |
