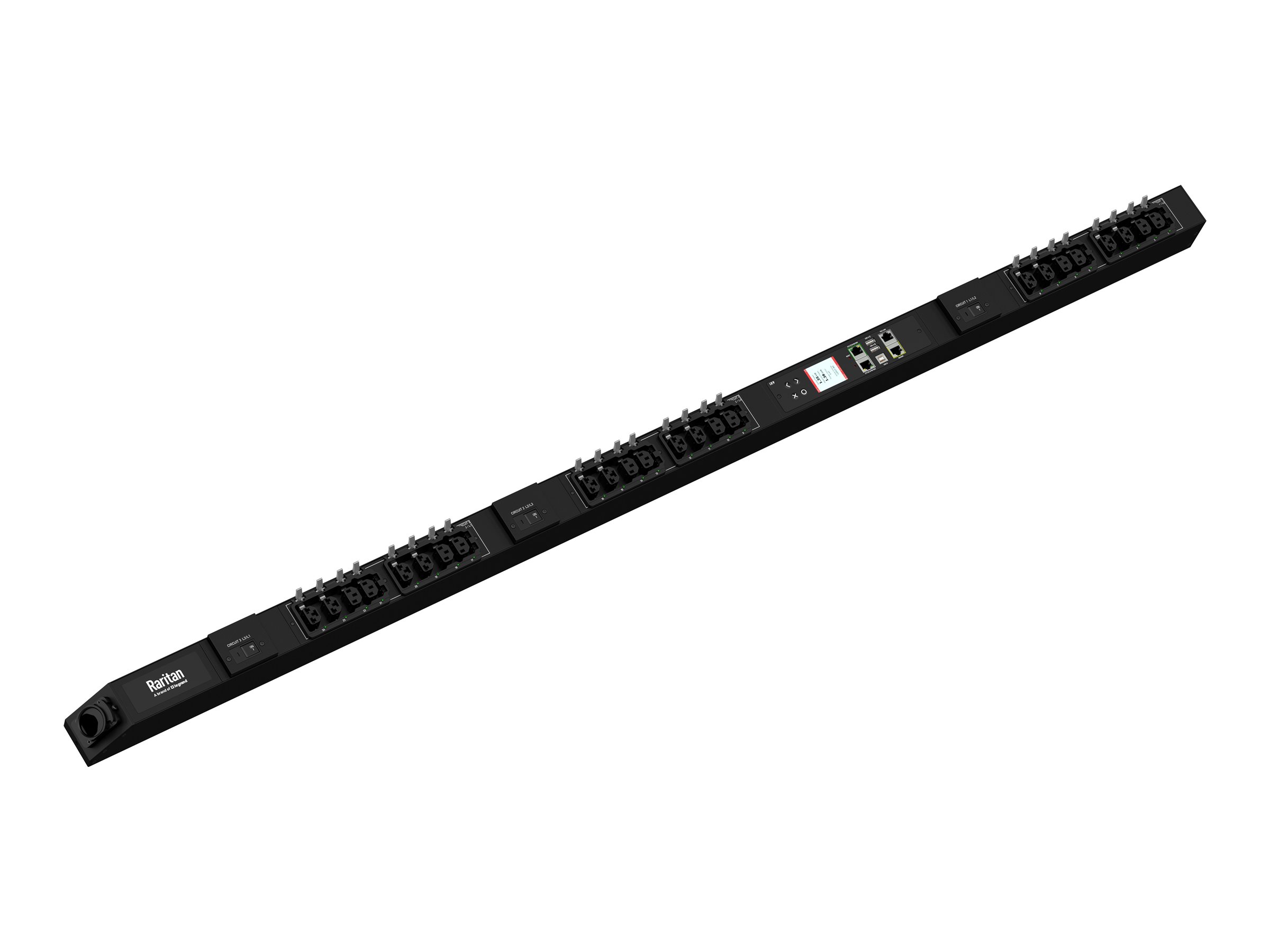

Raritan PX4-4548-E7 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX4-4548-E7 - Power distribution unit (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase delta
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L15-30P
- output connectors: 24 (power IEC 60320 C13, IEC 60320 Cx)
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-4548-E7 |
| SHI Part #: | 47775900 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-4548-E7 - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase delta - Ethernet 10/100/1000, RS-232, USB - input: NEMA L15-30P - output connectors: 24 (power IEC 60320 C13, IEC 60320 Cx) - 3 m cord - black |
| Manufacturer | Legrand |
| MSRP | $2,343.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Weight | 4.82 kg |
| Dimensions & Weight / Width | 5.6 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Weight | 4.82 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.5 cm |
| Shipping Height | 170 cm |
| Shipping Weight | 8 kg |
| Shipping Width | 25.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 96% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Powder coated, tool-less mounting, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, LCD display, cascadable, Auto-Flip Current Display, bottom-front feed cord entry, 3 x J62-X0 overload protection, Raritan SecureLock Ready |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP, CLI |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L15-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 8600 VA |
| Power Capacity Details | 8.6 kVA at 208 V, 10.0 kVA at 240 V |
| Power Output Connectors Details |
|
