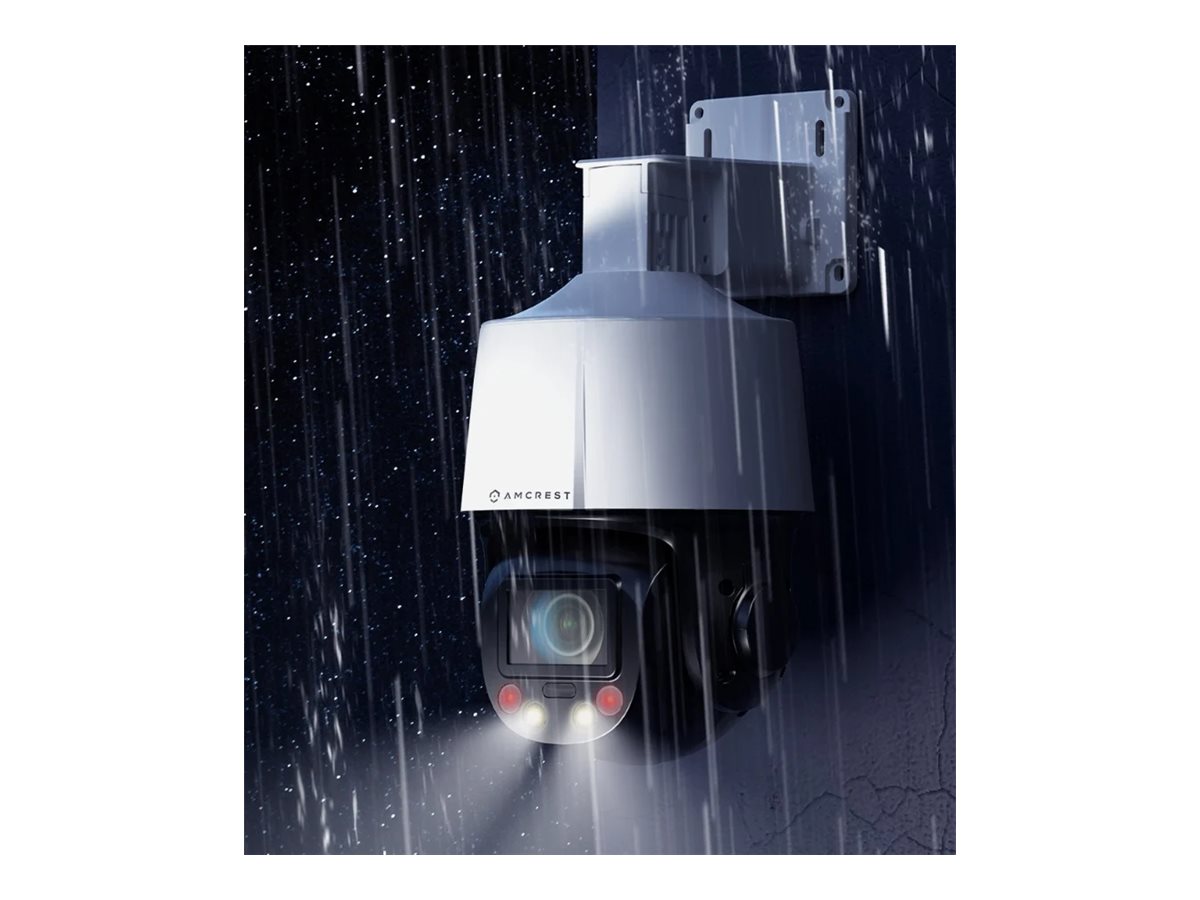

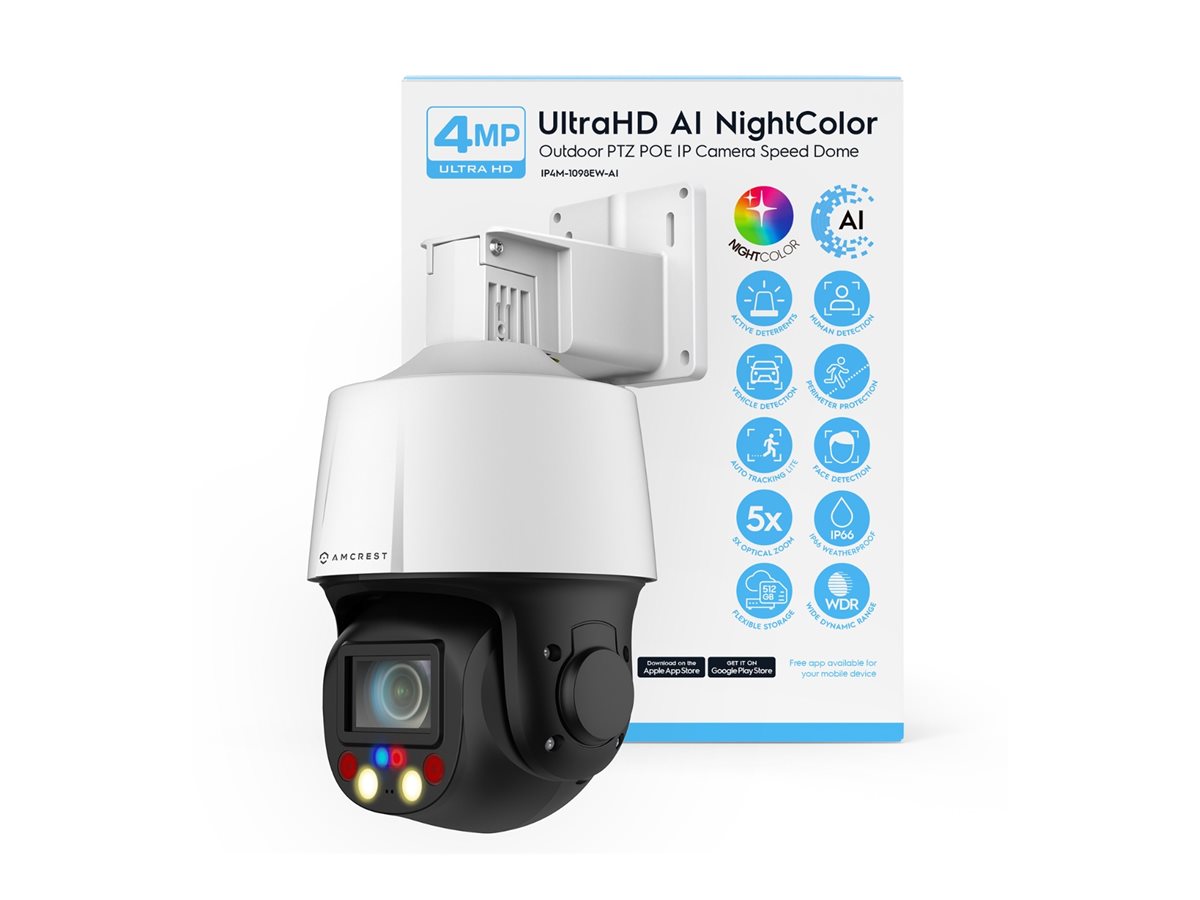

Amcrest IP4M-1098EW-AI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Amcrest IP4M-1098EW-AI
- Network surveillance camera
- PTZ
- turret
- outdoor
- weatherproof / lightning-proof / vandal-proof
- color (Day&Night)
- 4 MP
- 2560 x 1440
- 1080p, 720p
- auto and manual iris
- audio
- Ethernet 10Base-T/100Base-T
- H.264, H.265
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IP4M-1098EW-AI |
| SHI Part #: | 48018722 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Amcrest |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Amcrest IP4M-1098EW-AI - Network surveillance camera - PTZ - turret - outdoor - weatherproof / lightning-proof / vandal-proof - color (Day&Night) - 4 MP - 2560 x 1440 - 1080p, 720p - auto and manual iris - audio - Ethernet 10Base-T/100Base-T - H.264, H.265 - DC 12 V / PoE |
| Manufacturer | Amcrest |
| MSRP | $269.99 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.56 cm |
| Dimensions & Weight / Height | 27.15 cm |
| Dimensions & Weight / Weight | 1.5 kg |
| Dimensions & Weight / Width | 14 cm |
| Header / Brand | Amcrest |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288 |
| Digital Video Format | H.264, H.265 |
| Digital Zoom | 16 |
| Features | Day/night switch, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Highlight Compensation (HLC), white balance, Gain Control, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Electronic Image Stabilizer (EIS), Defog, 180° image rotation, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, active deterrent, Vehicle Detection, auto tracking, human detection, perimeter protection, face detection, surge protection, Voltage Transient Protection, lightning-resistant, non-motor vehicle detection, People Detection, motor vehicle detection |
| Flash Memory | 128 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 50 m |
| Infrared LEDs | 2 |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - weatherproof / lightning-proof / vandal-proof |
| Video Modes | 1080p, 720p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card |
| General | |
| Audio Formats | G.711a, G.711u, G.726, MPEG2 Layer2, G.722.1, PCM |
| Audio Support | Yes: built-in speaker |
| Connectivity Technology | Wired |
| Depth | 16.56 cm |
| Device Type | Network surveillance camera |
| Form Factor | Turret |
| Height | 27.15 cm |
| Weight | 1.5 kg |
| Width | 14 cm |
| Image Sensor | |
| Effective Pixels | 2560 x 1440 |
| Type | 4 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS, IPv6, SSL, SFTP, FTP, ARP, RTP, RTMP, TCP, SMTP |
| Lens Construction | |
| Diagonal Field of View (degree) | 34.6 - 112.3 |
| Focal Length | 2.7 mm - 13.5 mm |
| Focus Adjustment | Automatic, manual, semi-auto |
| Horizontal Field of View (degree) | 30.1 - 94.9 |
| Lens Iris | F/1.6-3.0 auto and manual iris |
| Optical Zoom | 5 x |
| Vertical Field of View (degree) | 17.1 - 51 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | IP66, IK10, IEEE 802.3at |
| Panning | |
| Range (degree) | 0 to 355 |
| Speed (degree/sec) | Up to 35.7 |
| Power | |
| Power Device | Power adapter 15 Watt |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| Software Included | Amcrest View Pro, Amcrest Cloud, Amcrest Blue Iris |
| Tilting | |
| Range (degree) | -15 to 90 |
| Speed (degree/sec) | Up to 27.1 |
