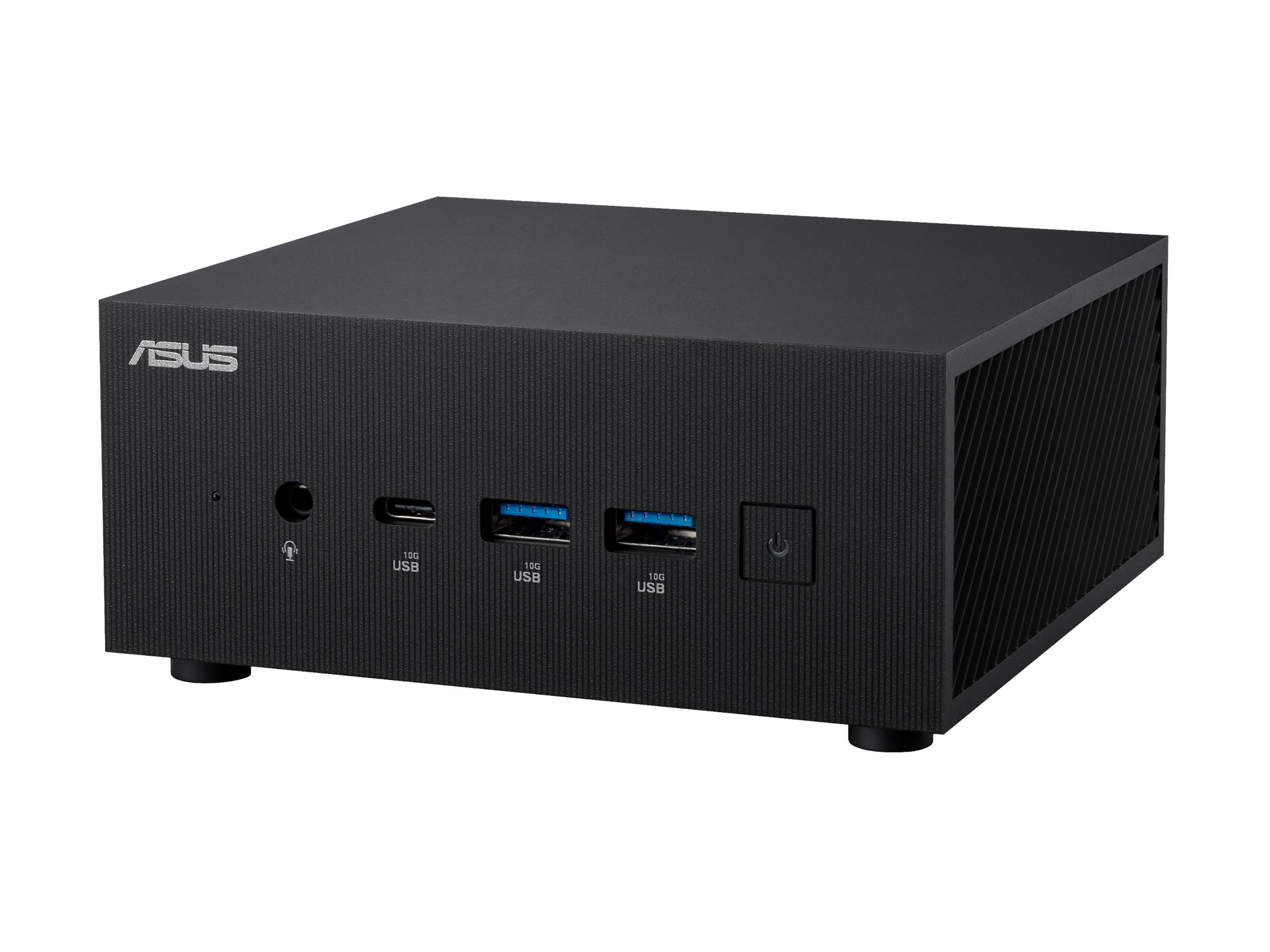

ASUS ExpertCenter PN65 SYS582PEFD0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS ExpertCenter PN65 SYS582PEFD0
- Barebone
- mini PC 1 x Core Ultra 7 155H / up to 4.8 GHz
- RAM 0 GB
- Intel Arc Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PN65-SYS582PEFD0 |
| SHI Part #: | 48039528 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ASUS ExpertCenter PN65 SYS582PEFD0 - Barebone - mini PC 1 x Core Ultra 7 155H / up to 4.8 GHz - RAM 0 GB - Intel Arc Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - black |
| Manufacturer | ASUS |
| MSRP | $1,099.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 5.8 cm |
| Dimensions & Weight / Weight | 750 g |
| Dimensions & Weight / Width | 12 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | ASUS |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type |
|
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.4 GHz |
| Processor / Generation | Series 1 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 155H |
| Processor / Type | Core Ultra 7 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity |
|
| System / Type |
|
| Video Output / Graphics Processor | Intel Arc Graphics |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | 24 MB |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 5.8 cm |
| Weight | 750 g |
| Width | 12 cm |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces |
|
| General | |
| Color | Black |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel Arc Graphics |
| Max Monitors Supported | 4 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Theft/Intrusion Protection | Padlock loop |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Neural Processor Unit (NPU) | |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 watt |
| Processor / Chipset | |
| Clock Speed | 1.4 GHz (P-core) / 0.9 GHz (E-core) |
| CPU | Intel Core Ultra 7 (Series 1) 155H |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.8 GHz (P-core) / 3.8 GHz (E-core) |
| Number of Cores | 16-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Slots | 2 (total) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
