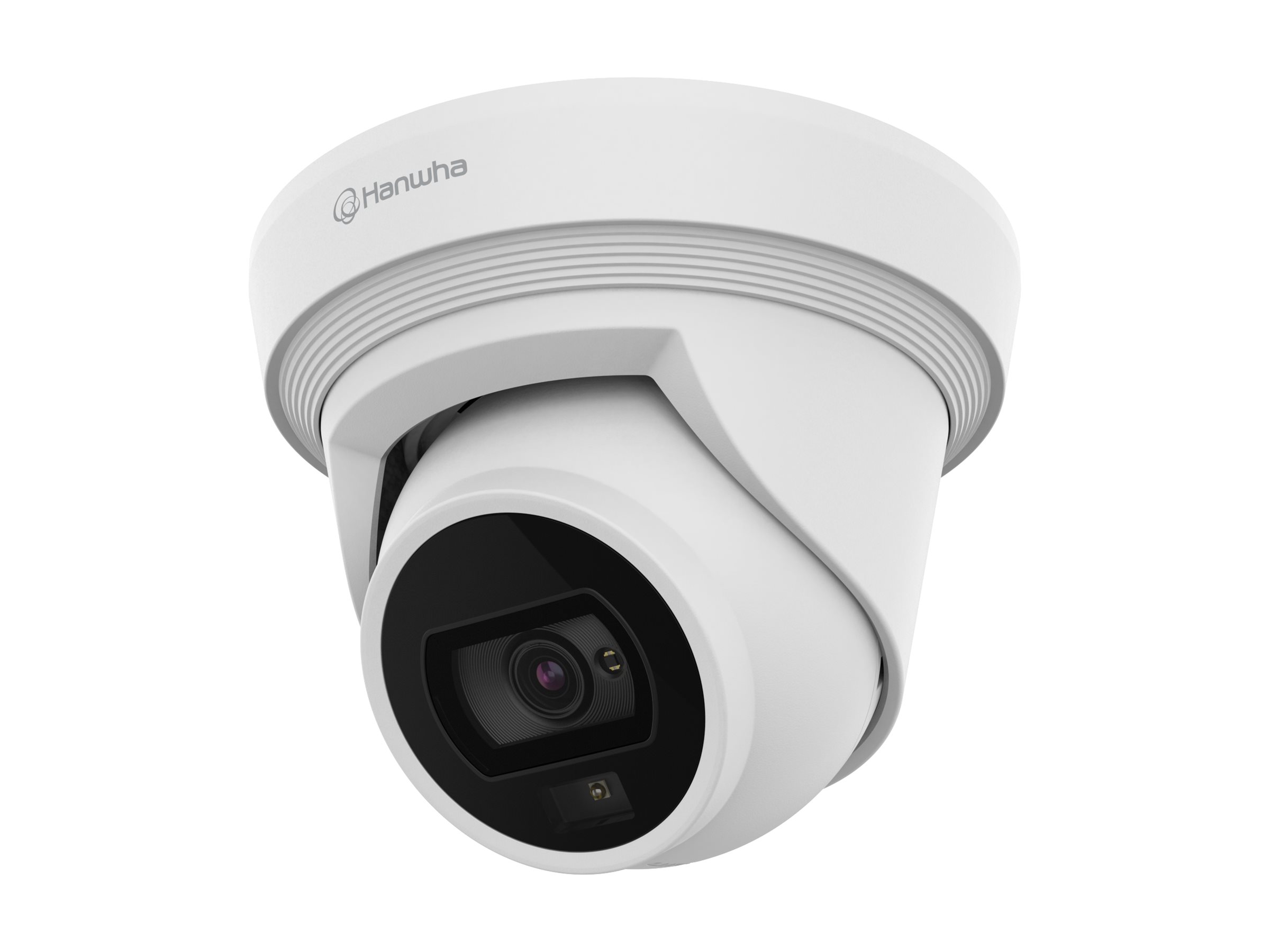

Hanwha Vision WiseNet Q QNE-C8013RL
MSRP$720.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet Q QNE-C8013RL
- Network surveillance camera
- pan / tilt
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- M12 mount
- fixed iris
- fixed focal
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $720.00 |
| Mfr Part #: | QNE-C8013RL |
| SHI Part #: | 48052202 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNE-C8013RL - Network surveillance camera - pan / tilt - dome - color (Day&Night) - 5 MP - 2592 x 1944 - M12 mount - fixed iris - fixed focal - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $720.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14 cm |
| Dimensions & Weight / Height | 9.96 cm |
| Dimensions & Weight / Weight | 790 g |
| Dimensions & Weight / Width | 14 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, WiseNR II, Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, anti-flicker, digital PTZ function, image flip, image mirror, Hallway View, Object Detection, Person Detection, Vehicle Detection, Virtual Line detection, vehicle type classification, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, tamper-detection, people counting, vehicle counting, queue management, Heat Map, network disconnection trigger, notification picture to FTP, notification picture to E-mail, Handover, strobe light alarm, WiseStream III support, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, secure boot, signed firmware, firmware encryption, digest authentication, brute force delay protection, 802.1x authentication, Gain Control |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - pan / tilt |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, LEAP, PEAP, MSCHAPv2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 14 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.96 cm |
| Weight | 790 g |
| Width | 14 cm |
| Image Sensor | |
| Effective Pixels | 2592 x 1944 |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, LLDP, SRTP, MQTT, Bonjour, TCP, CDP |
| Lens Construction | |
| Diagonal Field of View (degree) | 113 |
| Focal Length | 3 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 97 |
| Lens Iris | F/1.2 fixed iris |
| Min Focus Distance | 2 m |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 53 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.3af Class 3, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, cULus, NDAA |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 10 Watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 75 |
