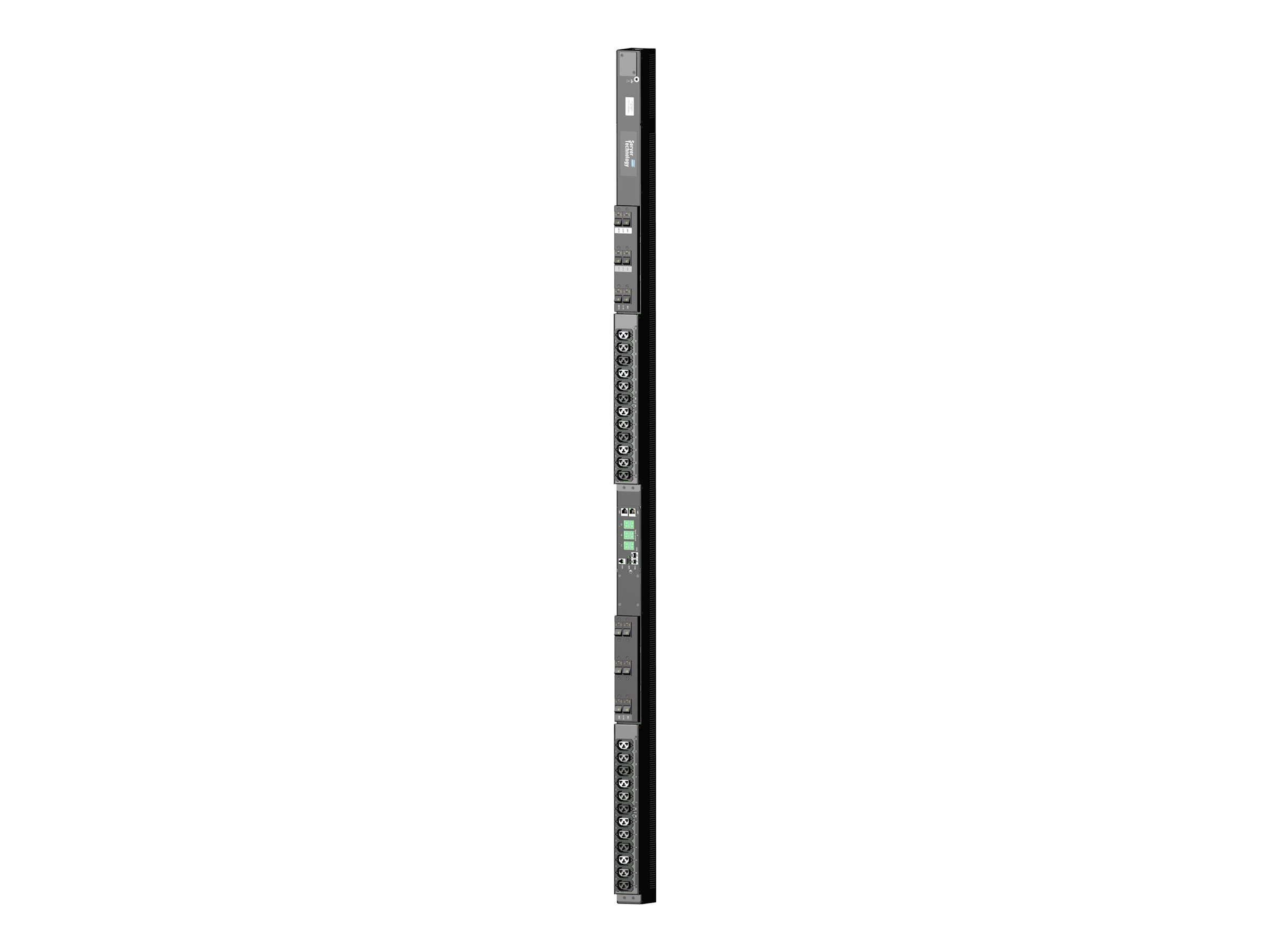

Server Technology PRO2 Switched POPS PDU C2WG24TB-53CD27T0
MSRP$4,782.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Server Technology PRO2 Switched POPS PDU C2WG24TB-53CD27T0
- Primary
- power distribution unit (rack-mountable / external)
- AC 415 V
- 3-phase WYE
- Ethernet 10/100/1000, RS-232
- output connectors: 24 (IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,782.00 |
| Mfr Part #: | C2WG24TB-53CD27T0 |
| SHI Part #: | 48126789 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched POPS PDU C2WG24TB-53CD27T0 - Primary - power distribution unit (rack-mountable / external) - AC 415 V - 3-phase WYE - Ethernet 10/100/1000, RS-232 - output connectors: 24 (IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $4,782.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.7 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.7 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | cTUVus, UL 62368-1, CSA C22.2 No. 62368-1, EMC, FCC Part 15 B Class A, ICES-003 Class A, UL 489, CSA C22.2 No. 5, EN 60947-2, IEC 60947-2 |
| Features | LED display, Per Outlet Power Sensing (POPS), Per Input Power Sensing (PIPS), High Density Outlet Technology (HDOT), hot-swappable network card, temperature monitoring, humidity monitoring, Branch Current Monitoring, outlet control, high retention locking outlets, network monitoring, Star Multi-Linking, Auto-Flip Current Display, Branch Circuit Protection, alternating-phase outlets, high temperature protection, vertical orientation |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, TLS 1.2, SSH-2, Telnet, SNMP 2, SNMP 3, IPv4, IPv6, LDAP 3.0, LDAPS, TACACS+, RADIUS, SFTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 415 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 20 A |
| Output Voltage | AC 240 V |
| Power Output Connectors Details | 24 x power IEC 60320 Cx 20 A |
