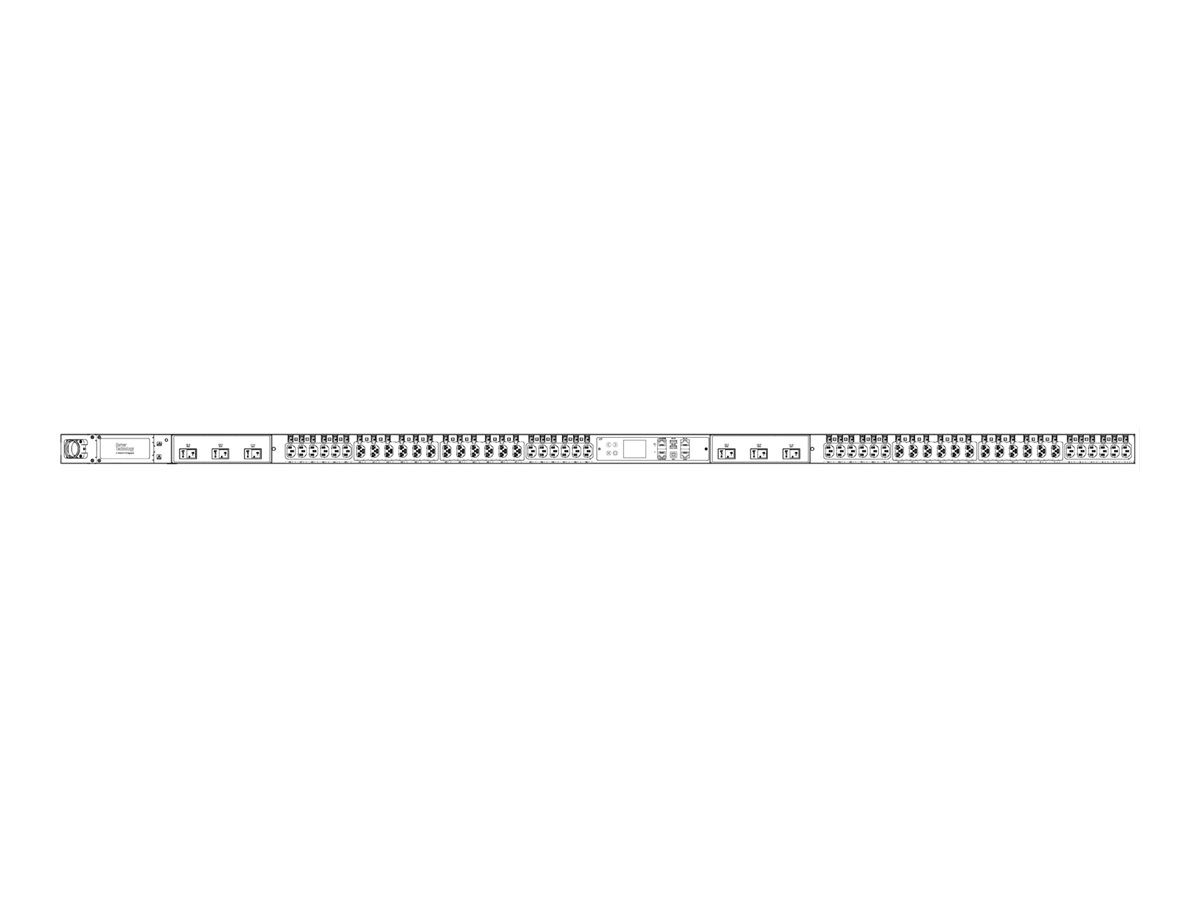

Server Technology PRO4X Switched PDU C4W48RA-GNBD2FD3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Server Technology PRO4X Switched PDU C4W48RA-GNBD2FD3
- Power distribution unit (rack-mountable)
- AC 415 V
- 11.5 kW
- 3-phase
- Ethernet 10/100/1000, USB
- input: IEC 60309 3P+N+G 6Hr
- output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C4W48RA-GNBD2FD3 |
| SHI Part #: | 48127634 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO4X Switched PDU C4W48RA-GNBD2FD3 - Power distribution unit (rack-mountable) - AC 415 V - 11.5 kW - 3-phase - Ethernet 10/100/1000, USB - input: IEC 60309 3P+N+G 6Hr - output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $4,088.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 2.032 m |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 2.032 m |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | IEC/EN 62368-1, TUV Rheinland, IEC 62368-1 CB Scheme, EMC, EN 55032, CISPR 32, EN 55035, CISPR 35, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, ROHS Directive 2011/65/EU, LVD 2014/35/EU, EMCD 2014/30/EU, UKCA, RoHS, cTUVus, UL 62368-1, CSA C22.2 No. 62368-1, FCC Subpart B 15.107 Class A, FCC Subpart B 15.109 Class A, ICES-003 Class A, UL 489, CSA C22.2 No. 5, IEC 60947-2, EN 60947-2 |
| Features | High Density Outlet Technology (HDOT), Branch Circuit Protection, environmental sensor ready, locking outlets, Per Input Power Sensing (PIPS), Ramlock Locking Outlets, Per Outlet Power Sensing (POPS), email alerts support, current meter, voltage monitoring, active power meter, apparent power meter, power factor meter, energy meter, Branch Current Monitoring, Raritan Xerus Technology, daisy chain functionality, multi-color LCD, hot-swappable controller, LED indicators, waveform capture, alternating-phase outlets |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP, SFTP, SMTP, Syslog, LDAP, LDAPS, CLI, TLS 1.2, SSH-2, SNMP 3, SNMP 2c, IPv4, IPv6, LDAP 3.0, RADIUS, TACACS+ |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+G 6Hr |
| Input Voltage | AC 415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 415 V |
| Power Capacity | 11.5 kW |
| Power Output Connectors Details |
|
