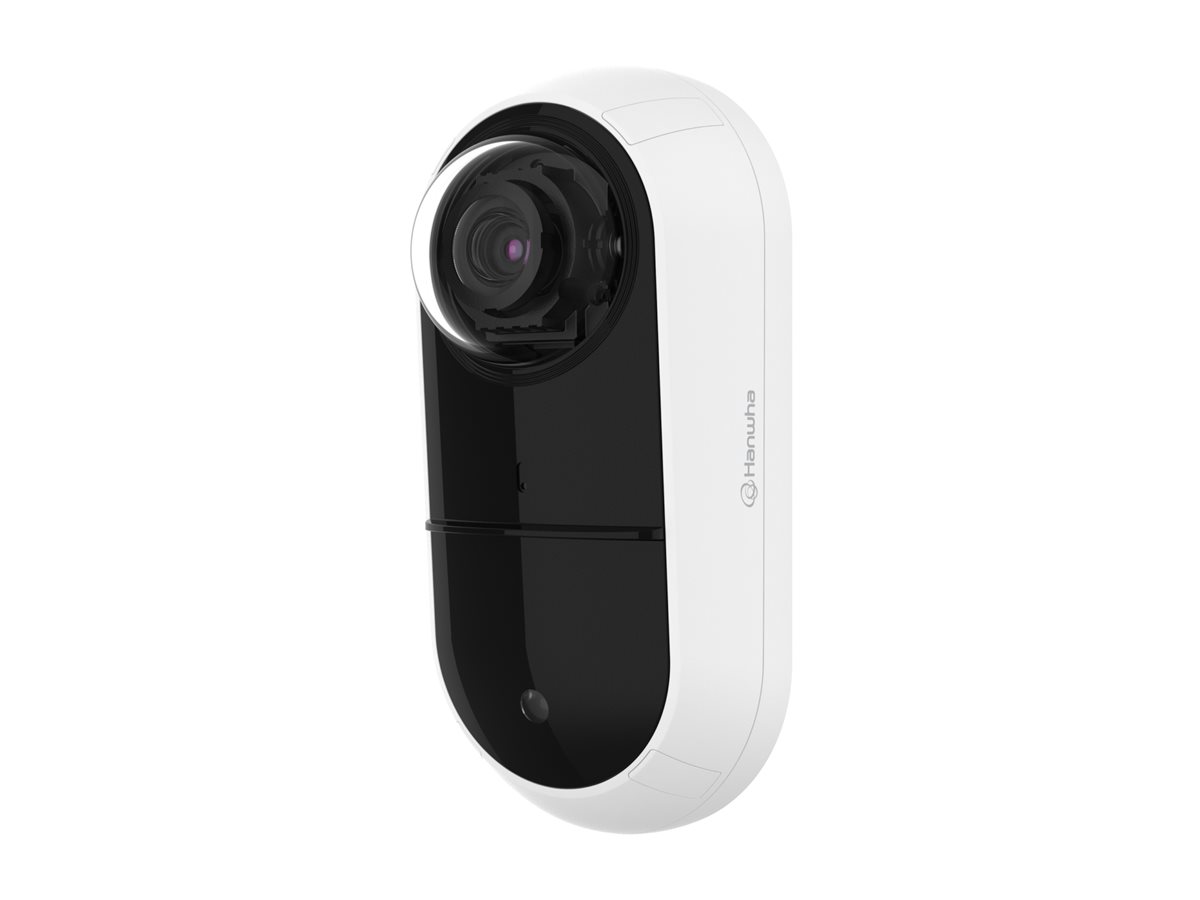

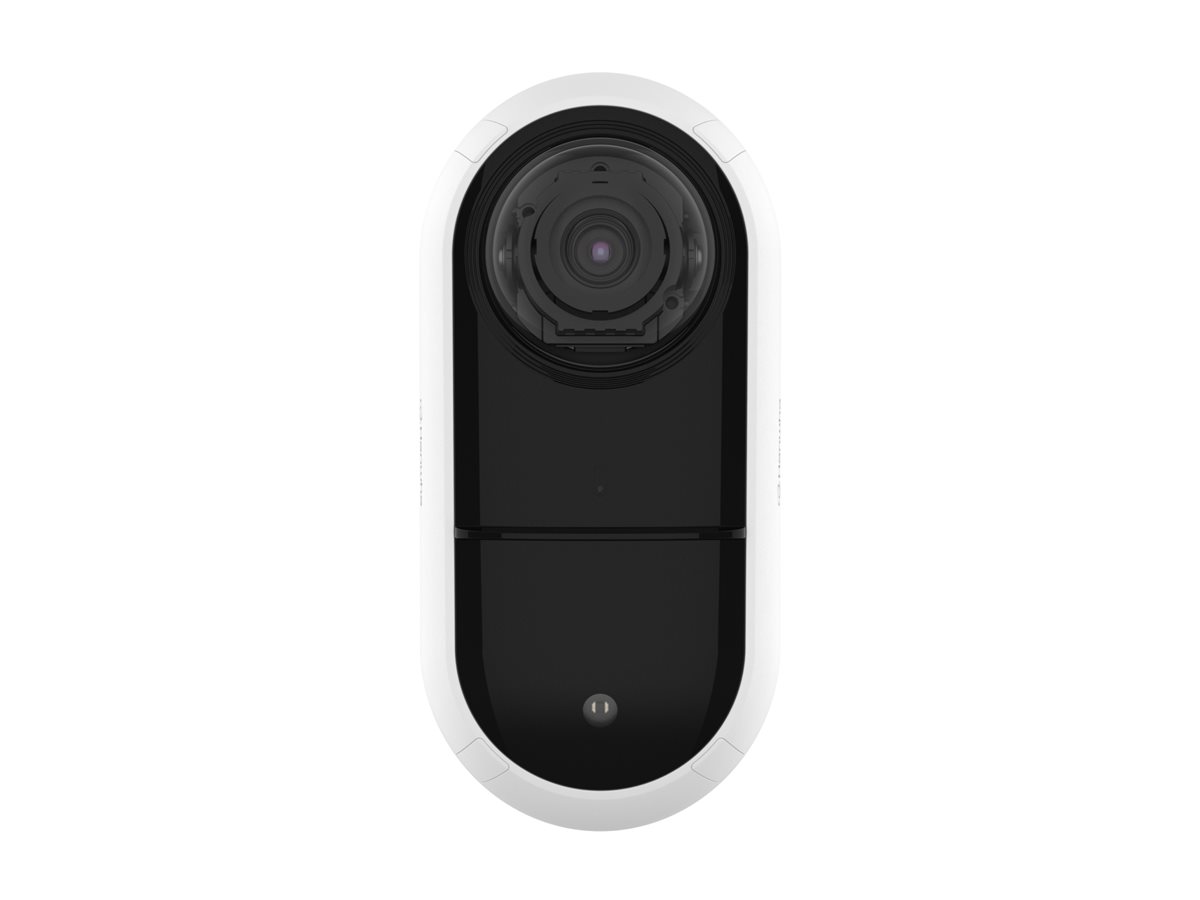

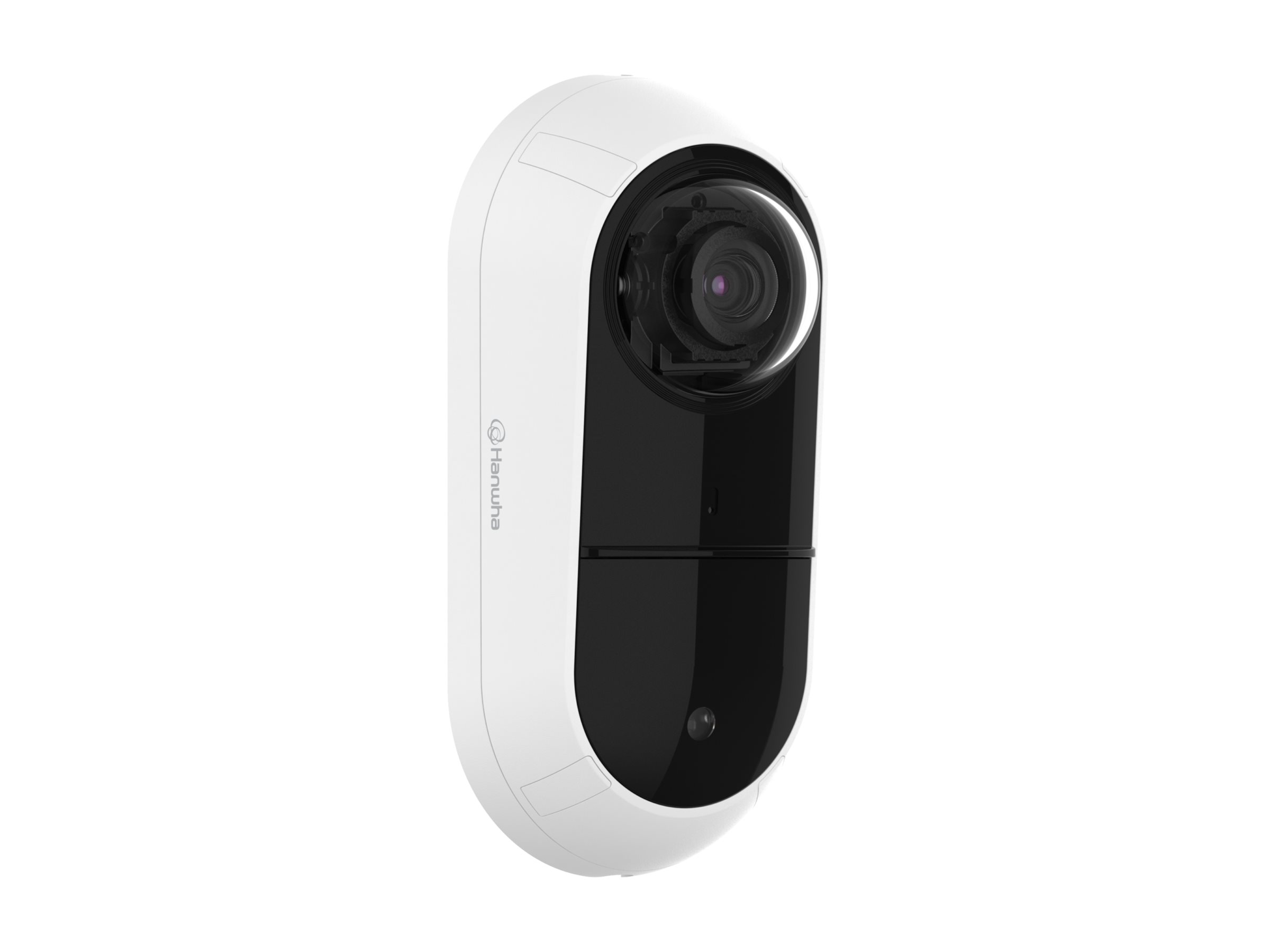

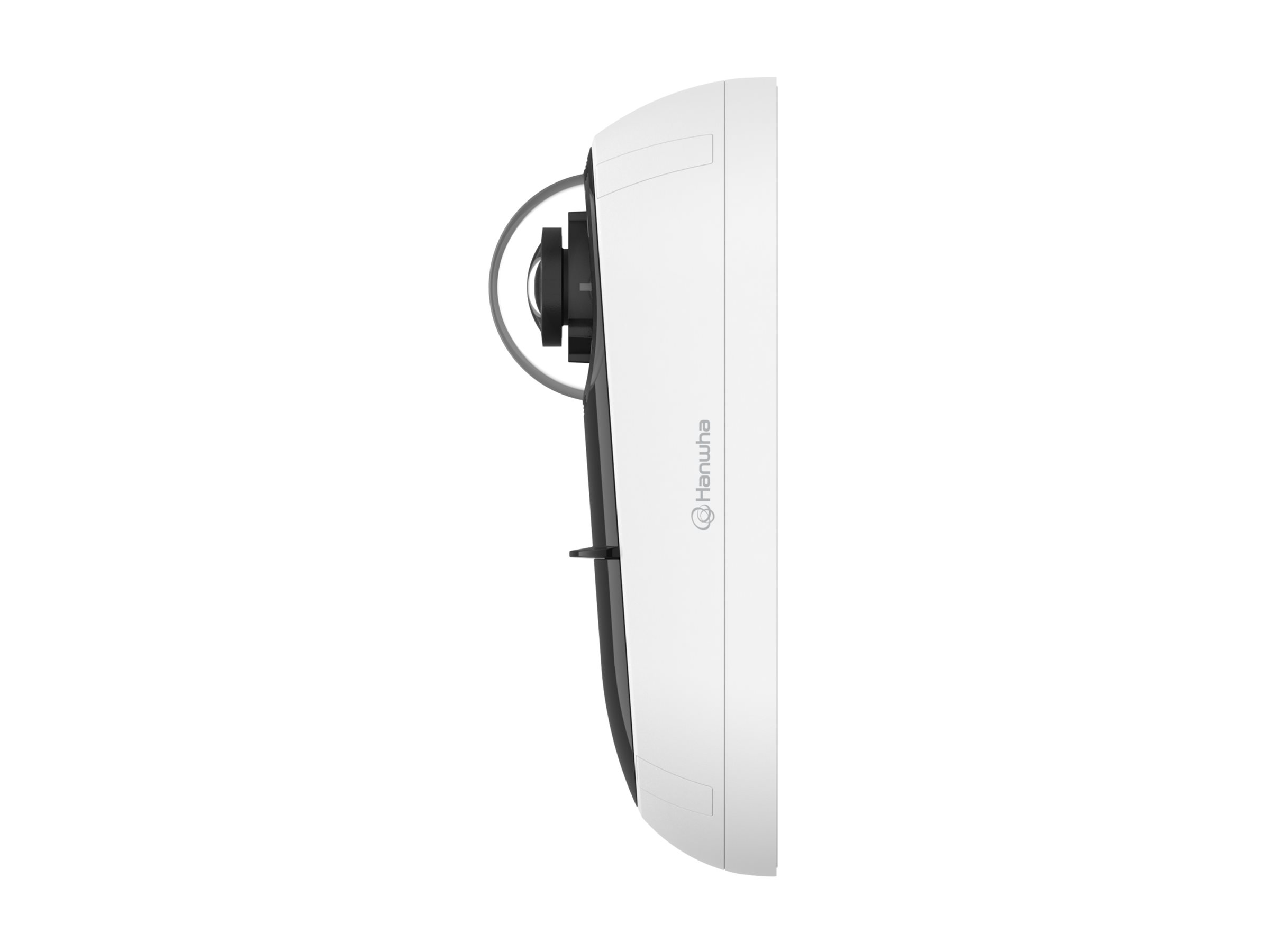

Hanwha Vision TNV-C8011RW
MSRP$980.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision TNV-C8011RW
- Network surveillance camera
- dome
- color (Day&Night)
- 5 MP
- 2592 x 1944
- fixed focal
- audio
- USB
- LAN 10/100
- MJPEG, H.264, H.265
- PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $980.00 |
| Mfr Part #: | TNV-C8011RW |
| SHI Part #: | 48282266 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision TNV-C8011RW - Network surveillance camera - dome - color (Day&Night) - 5 MP - 2592 x 1944 - fixed focal - audio - USB - LAN 10/100 - MJPEG, H.264, H.265 - PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $980.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 16.7 cm |
| Dimensions & Weight / Weight | 600 g |
| Dimensions & Weight / Width | 8 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Samsung Super Noise Reduction (SSNR) V, WiseNR II, WiseStream III support, Object Detection, auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), anti-flicker, image flip, image mirror, Hallway View, Privacy Mask Function, Gain Control, Person Detection, Vehicle Detection, vehicle type classification, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, tamper-detection, appearing / disappearing detection, people counting, vehicle counting, queue management, Heat Map, digest authentication, notification picture to E-mail, notification picture to FTP, Handover, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), user access log, alarm function, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, AI Analytics |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 15 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: built-in microphone |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 5.7 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 16.7 cm |
| Weight | 600 g |
| Width | 8 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Video | USB |
| Lens Construction | |
| Diagonal Field of View (degree) | 175 |
| Focal Length | 1.6 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 175 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 30 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 125 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | BS EN 55032:2015 + A11:2020, EN 50130-4:2011+A1:2014, FCC 47 CFR Part 15 Subpart B Class A, ICES-003 issue 7 Class A, KS C 9832, KS C 9835:2019, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, KC 62368-1, IEC/EN 60529 IP66, IEC/EN 62262 IK10, EN 62676-4 |
| Power | |
| Power Device | 11.5 Watt |
| Power Requirements | PoE |
| Tilting | |
| Range (degree) | -25 to +25 |
