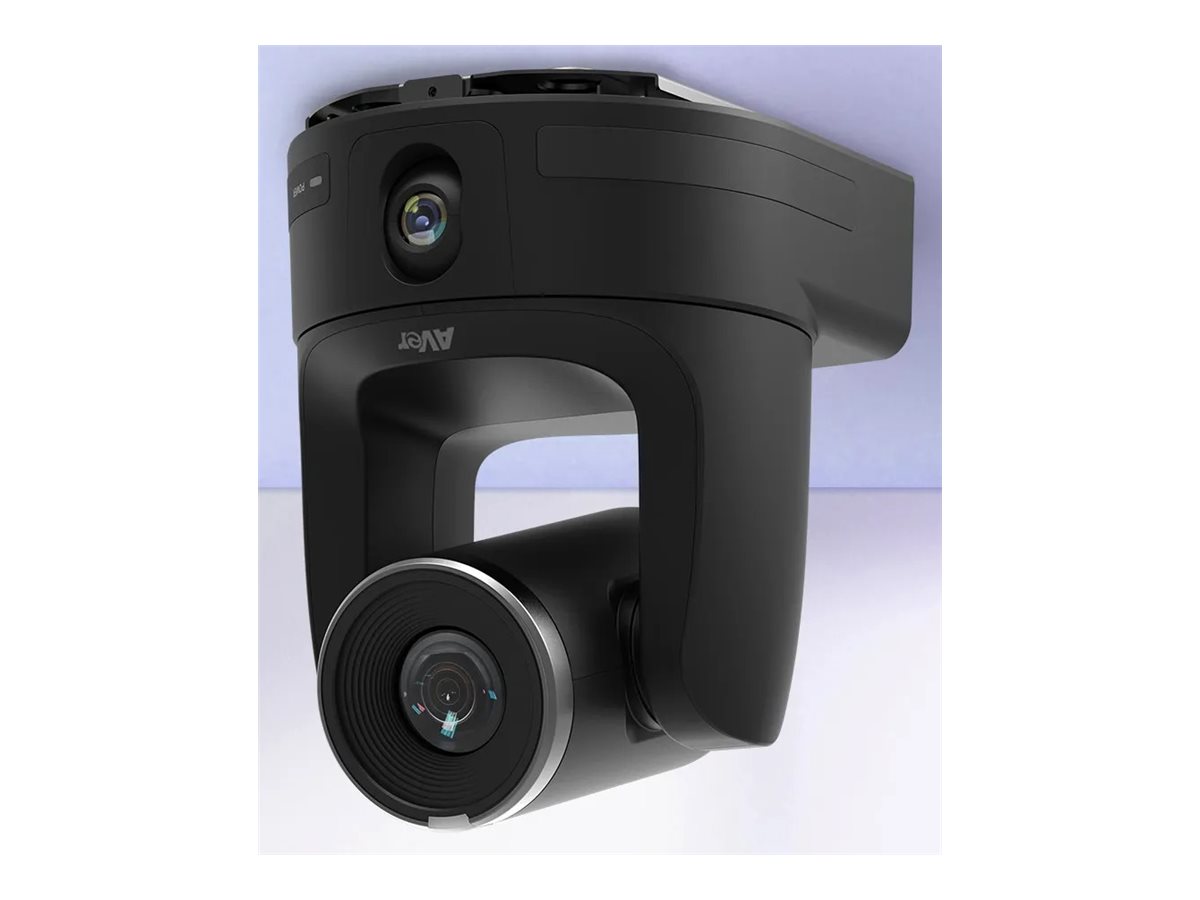

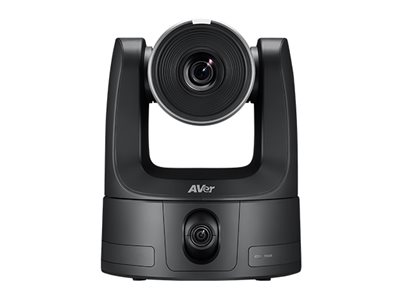

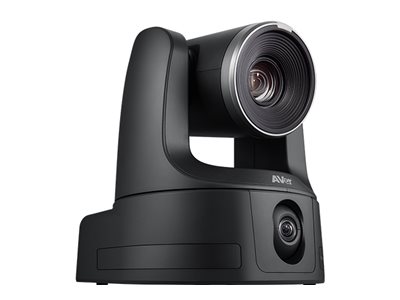

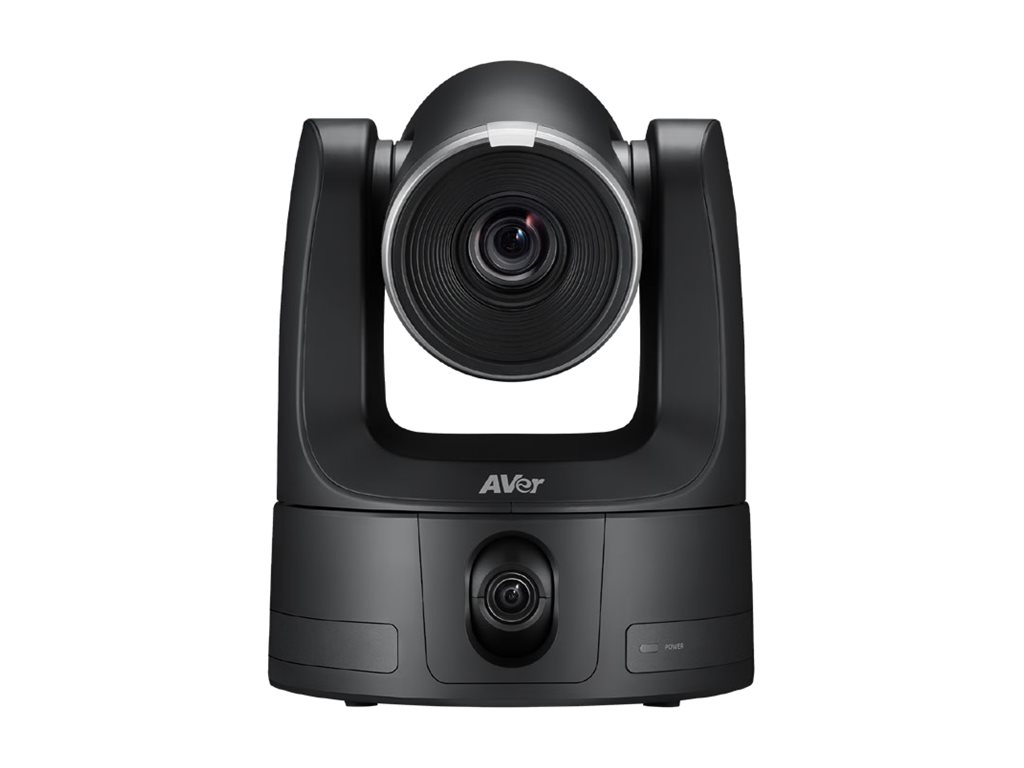

AVer TR535N - Panoramic conference camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AVer TR535N - Panoramic conference camera
- PTZ
- indoor
- color
- 3840 x 2160
- 1600 TVL
- audio
- HDMI, 3G-SDI, USB
- GbE, Ethernet 2.5GBase-T
- USB 3.2 Gen 1
- H.264, H.265, MJPEG, YUY2
- AC 100
- 240 V
- DC 12 V
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PTR535NV1 |
| SHI Part #: | 48664350 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | AVer Information |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | AVer TR535N - Panoramic conference camera - PTZ - indoor - color - 3840 x 2160 - 1600 TVL - audio - HDMI, 3G-SDI, USB - GbE, Ethernet 2.5GBase-T - USB 3.2 Gen 1 - H.264, H.265, MJPEG, YUY2 - AC 100 - 240 V - DC 12 V |
| Manufacturer | AVer Information |
| MSRP | $5,059.99 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.85 cm |
| Dimensions & Weight / Height | 25.07 cm |
| Dimensions & Weight / Weight | 3.6 kg |
| Dimensions & Weight / Width | 20.25 cm |
| Header / Brand | AVer |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Format | H.264, H.265, MJPEG, YUY2 |
| Digital Zoom | 1 |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Features | Built-in NDI, dual lens, PIP support, auto tracking, Multi-Presenter Detection, voice tracking, white balance, exposure control, noise reduction, image flip, image mirror, Wide Dynamic Range (WDR), Backlight Compensation (BLC) |
| Frame Rate (max) | 60 frames per second |
| Horizontal Resolution (TV Lines) | 1600 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 0.5 lux - 30 fps - 50 IRE |
| Type | Color - pan / tilt / zoom - indoor |
| Video Modes | 4K/60p, 4K/59.94p, 4K/50p, 4K/30p, 4K/29.97p, 4K/25p, 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 80% |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC, PCM |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 21.85 cm |
| Device Type | Panoramic conference camera |
| Height | 25.07 cm |
| Weight | 3.6 kg |
| Width | 20.25 cm |
| Image Sensor | |
| Type |
|
| Interfaces | |

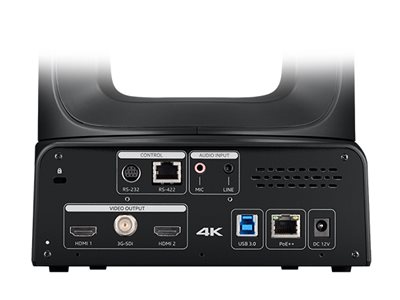

| Computer Interface | USB 3.2 Gen 1 |
| Control Interface | RS-232, VISCA, RS-422 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T, Ethernet 2.5GBase-T |
| Network Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA |
| Video | HDMI, 3G-SDI, USB |
| Lens Construction | |
| Lens System |
|
| Optical Zoom | 30 x |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Included Accessories | Remote control |
| Panning | |
| Range (degree) | 0.1 to 100 |
| Speed (degree/sec) | Up to 100 |
| Power | |
| Power Device | Power adapter - external AC 100-240 V (50/60 Hz) 29 Watt |
| Power Requirements | AC 100 - 240 V - DC 12 V |
| Software / System Requirements | |
| Software Included | AVer PTZ Manager, PTZ Control Panel, PTZ Link, OBS Plug in |
| Tilting | |
| Range (degree) | 0.1 to 100 |
| Speed (degree/sec) | Up to 100 |
