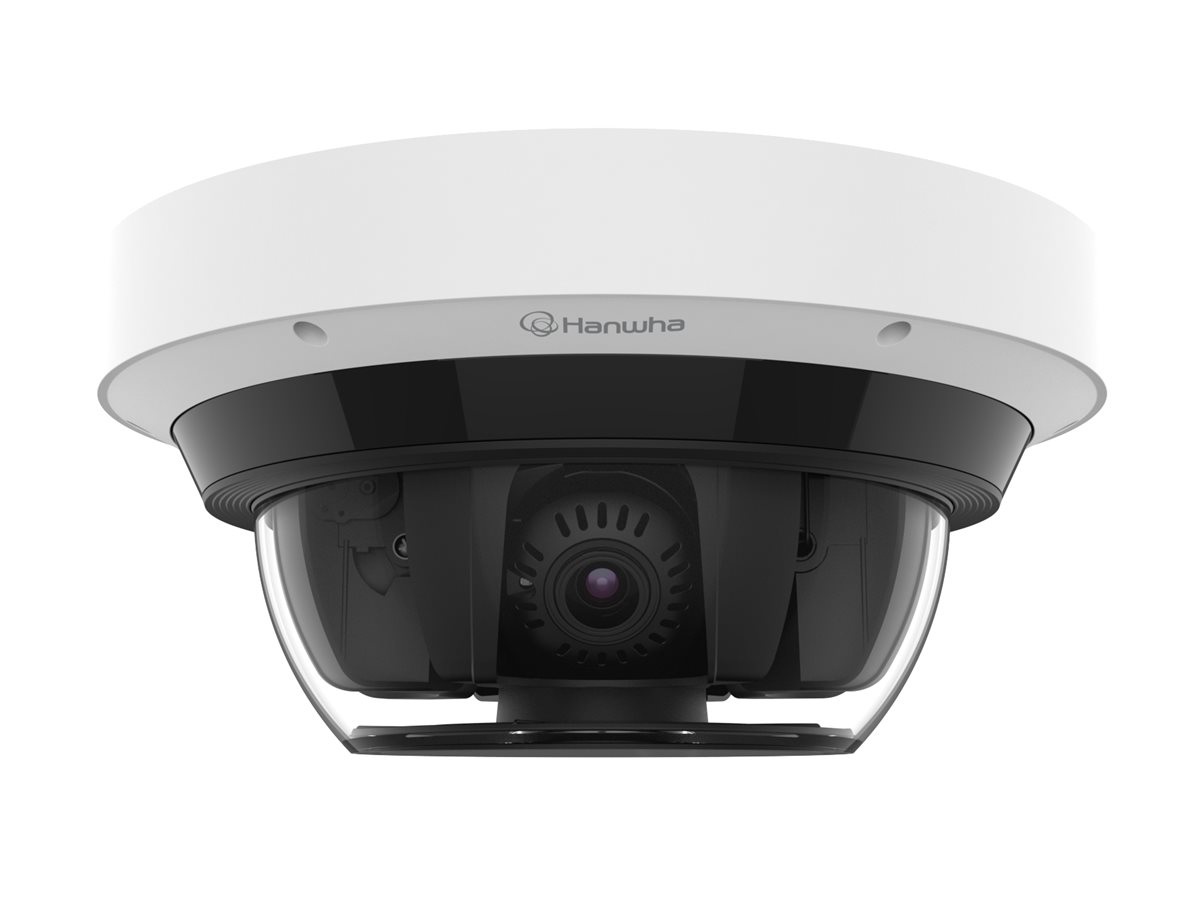

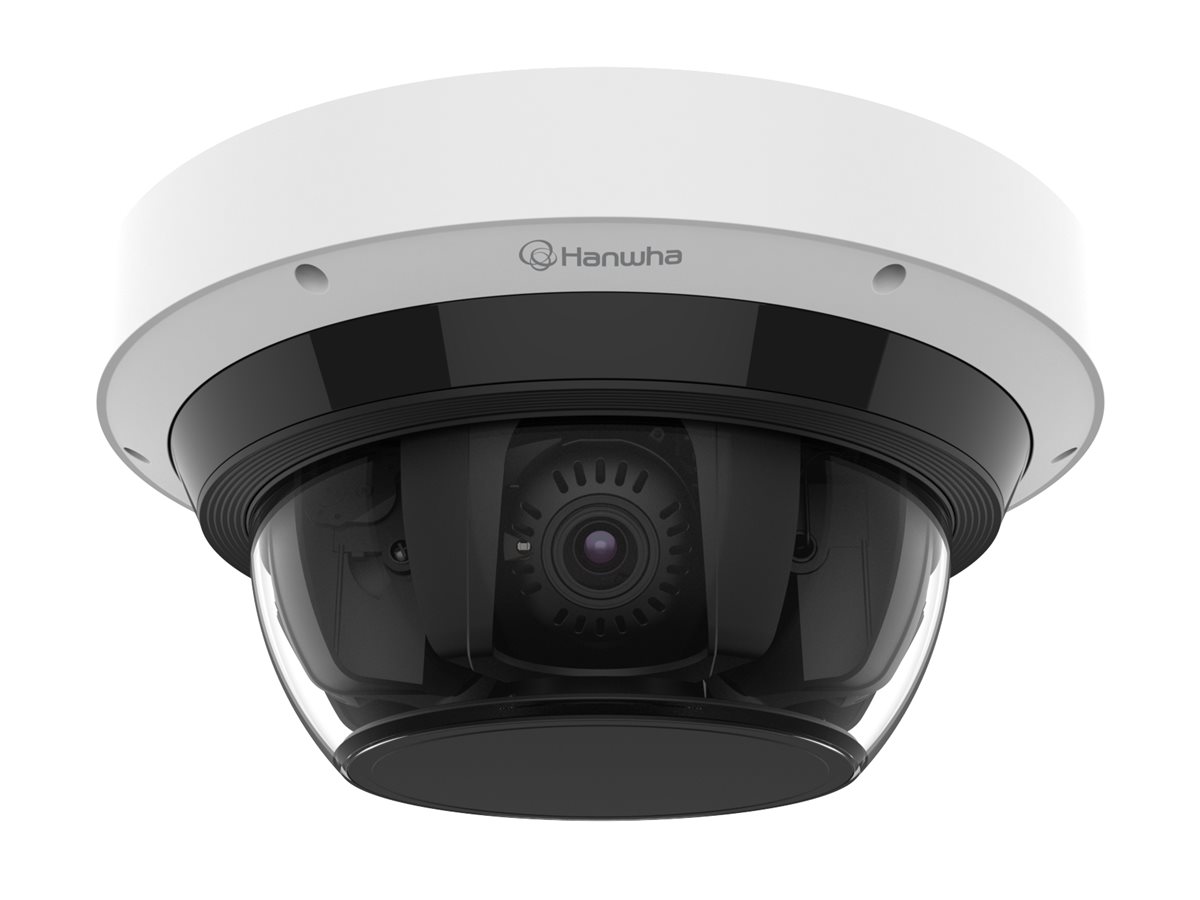

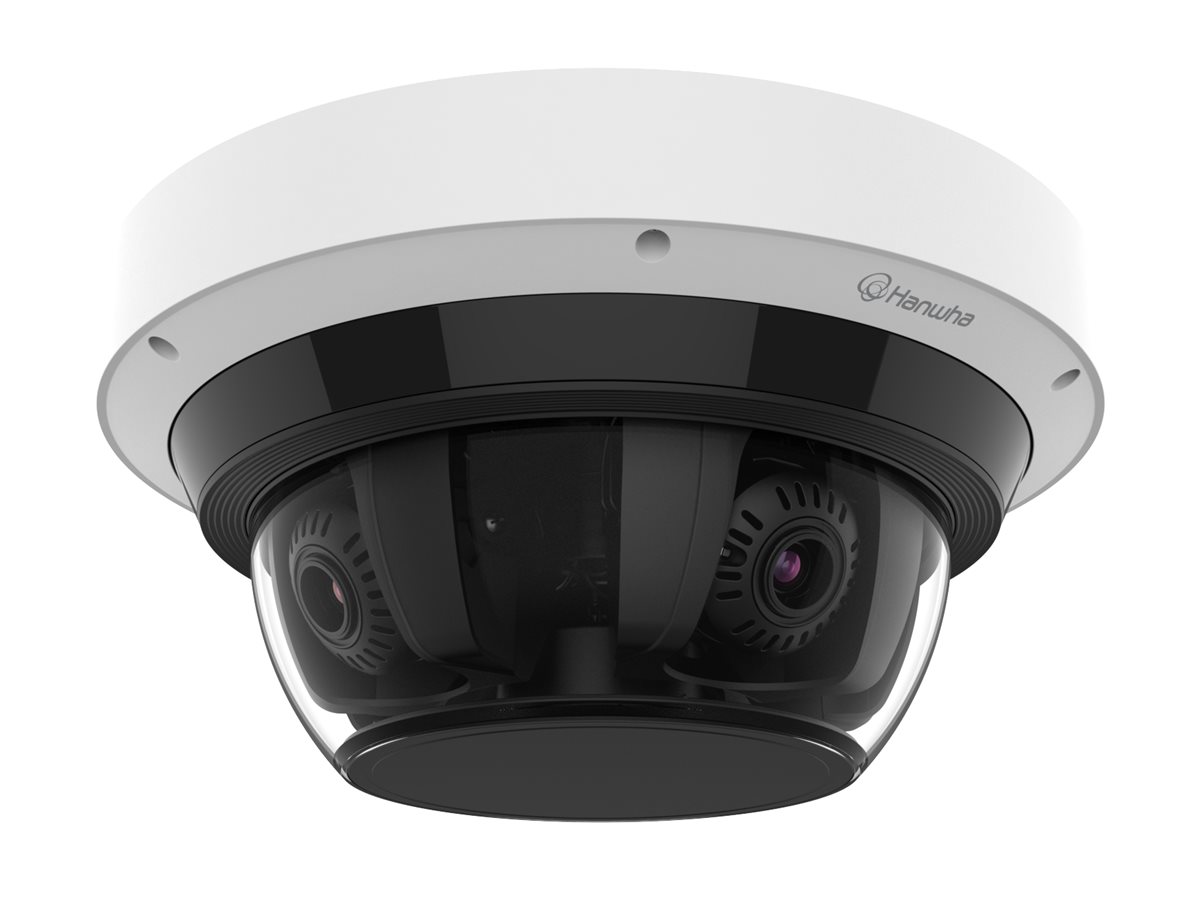

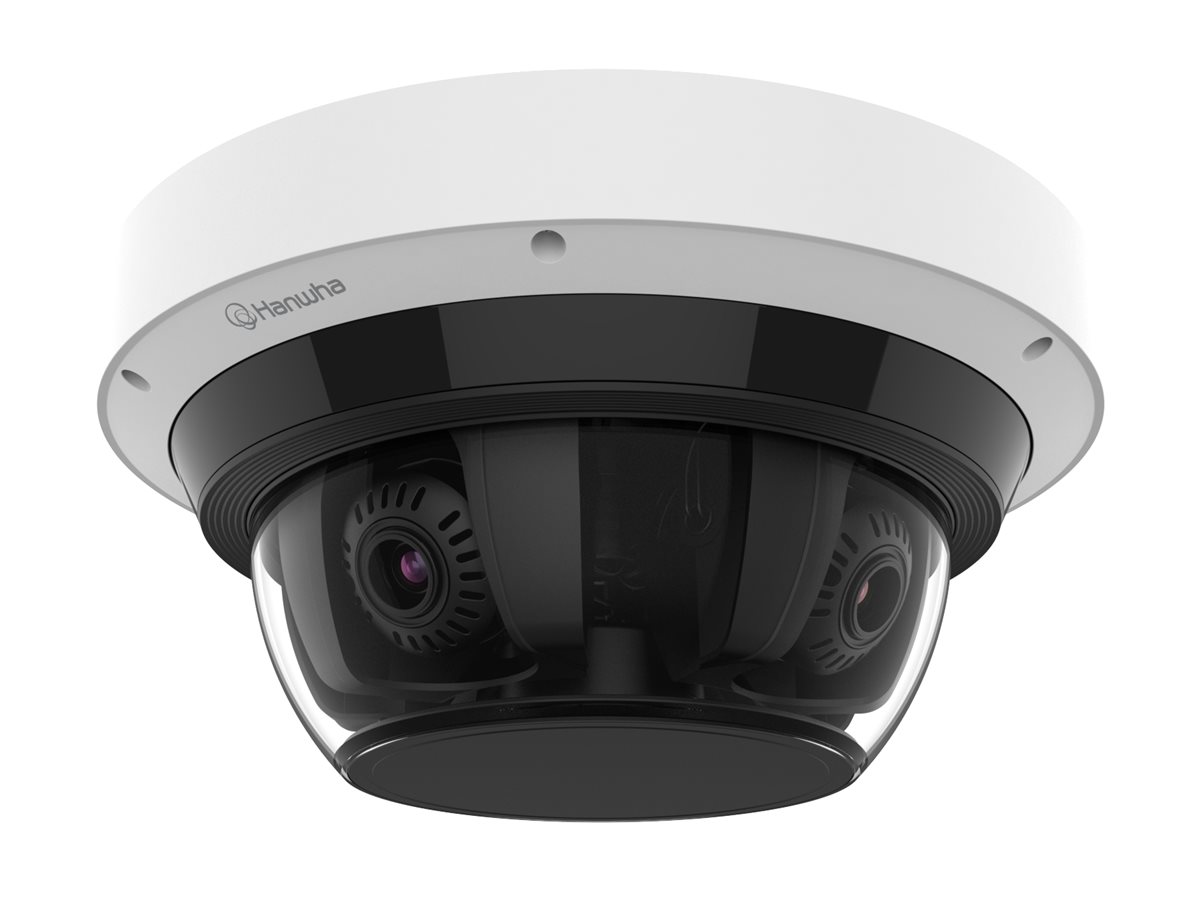

Hanwha Vision PNM-C32083RQZ
MSRP$3,900.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision PNM-C32083RQZ
- Network surveillance camera
- multi-sensor
- dome
- color (Day&Night)
- 8 MP
- 3840 x 2160
- auto iris
- vari-focal
- audio
- GbE
- MJPEG, H.264, H.265
- High PoE Class 6
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,900.00 |
| Mfr Part #: | PNM-C32083RQZ |
| SHI Part #: | 48912607 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Hanwha Vision PNM-C32083RQZ - Network surveillance camera - multi-sensor - dome - color (Day&Night) - 8 MP - 3840 x 2160 - auto iris - vari-focal - audio - GbE - MJPEG, H.264, H.265 - High PoE Class 6 - TAA Compliant |
| Manufacturer | HANWHA VISION |
| MSRP | $3,900.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.27 cm |
| Dimensions & Weight / Height | 14.59 cm |
| Dimensions & Weight / Weight | 4.4 kg |
| Dimensions & Weight / Width | 31.27 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | 90° image rotation, Object Detection, vehicle type classification, face detection, Person Detection, license plate detection, entrance / exit detection, loitering detection, Virtual Line detection, WiseNR II, Lens Distortion Compensation (LDC), WiseStream III support, hard-coated dome, Defocus Detection, tamper-detection, Audio Detection, sound classification, Hallway View, TPM 2.0 module, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, auto ICR, Privacy Mask Function, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), reverse function (flip and mirror), notification picture to FTP, notification picture to E-mail, trigger recording, Handover, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile M) support, Variable Bitrate (VBR), Constant Bitrate (CBR), user access log, digest authentication, 2 microSD card slots, Defog, electronic pan/zoom (remote control) |
| Flash Memory | 8 GB |
| Frame Rate (max) | 20 frames per second |
| Infrared Distance | 25 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - multi-sensor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% RH |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 Level 2 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 31.27 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 14.59 cm |
| Weight | 4.4 kg |
| Width | 31.27 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RJ-45 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT |
| Lens Construction | |
| Diagonal Field of View (degree) | 54 - 138 |
| Focal Length | 4.38 mm - 9.33 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 47 - 113 |
| Lens Iris | F/1.3-2.15 auto iris (P-Iris) |
| Min Focus Distance | 1.3 m |
| Optical Zoom | 2.13 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 26 - 58 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NDAA, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA Type 4X, IEEE 802.1x, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEEE 802.3bt |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Requirements | High PoE Class 6 |
| Tilting | |
| Range (degree) | 30 to 90 |
