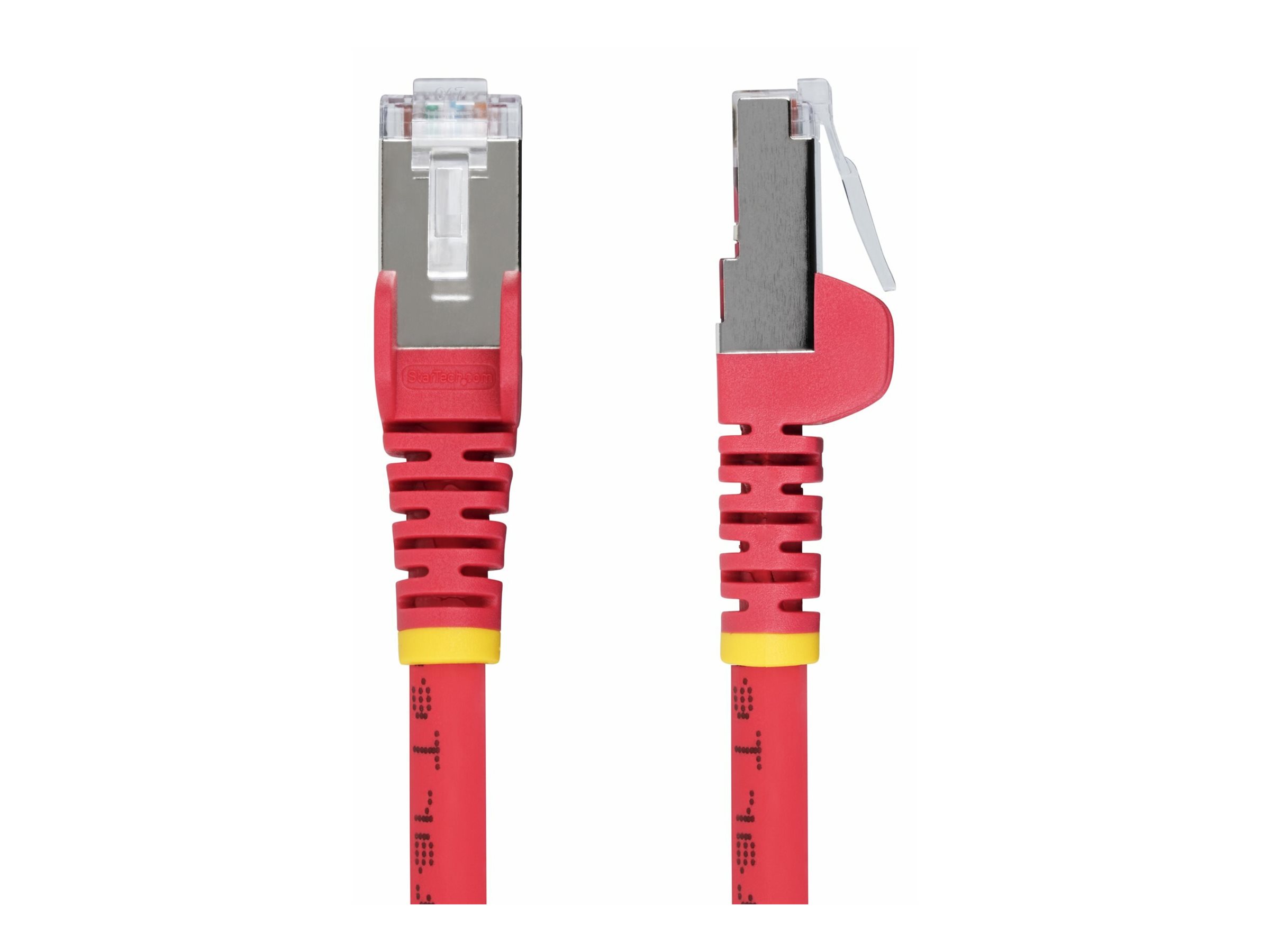

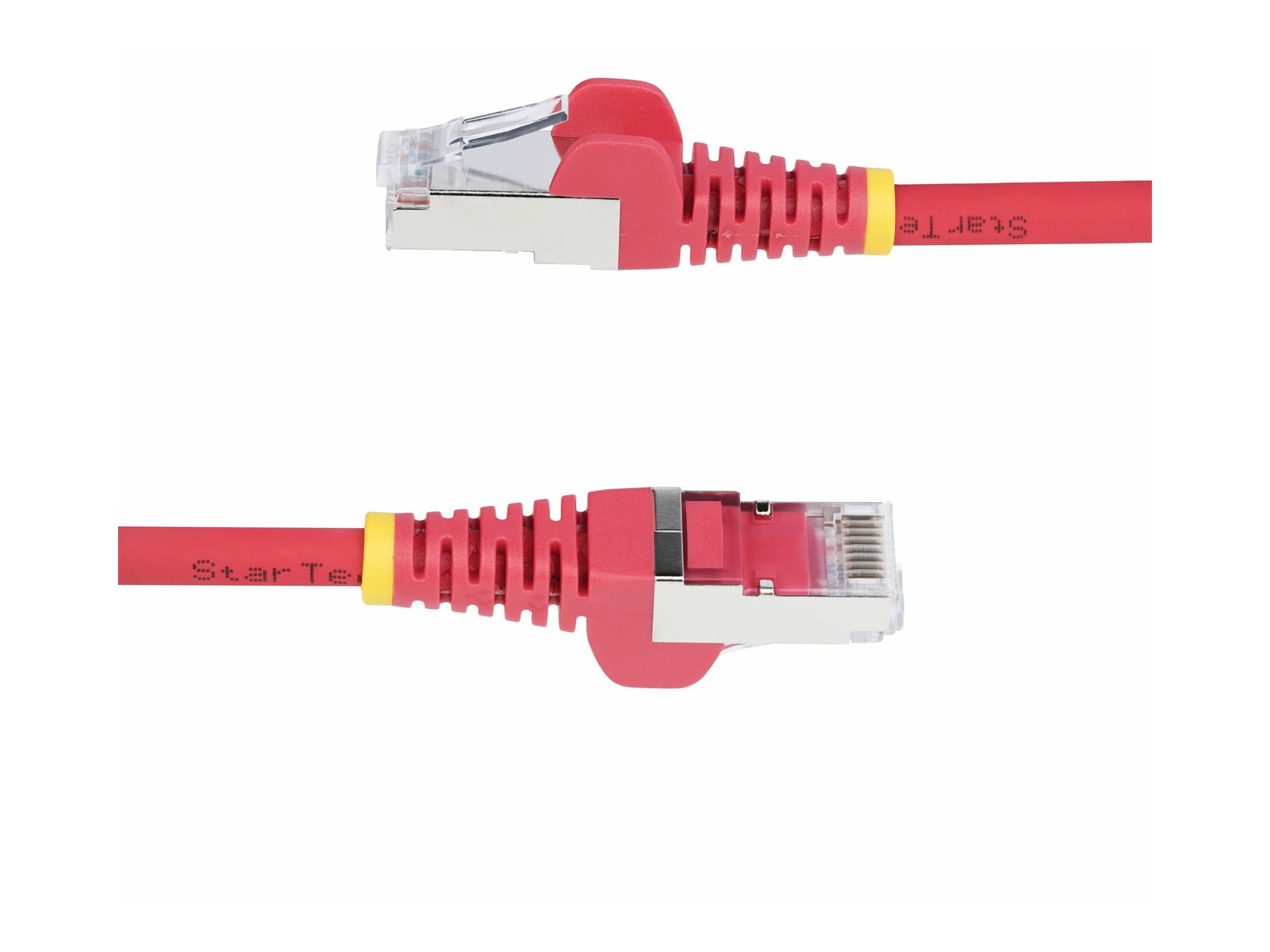

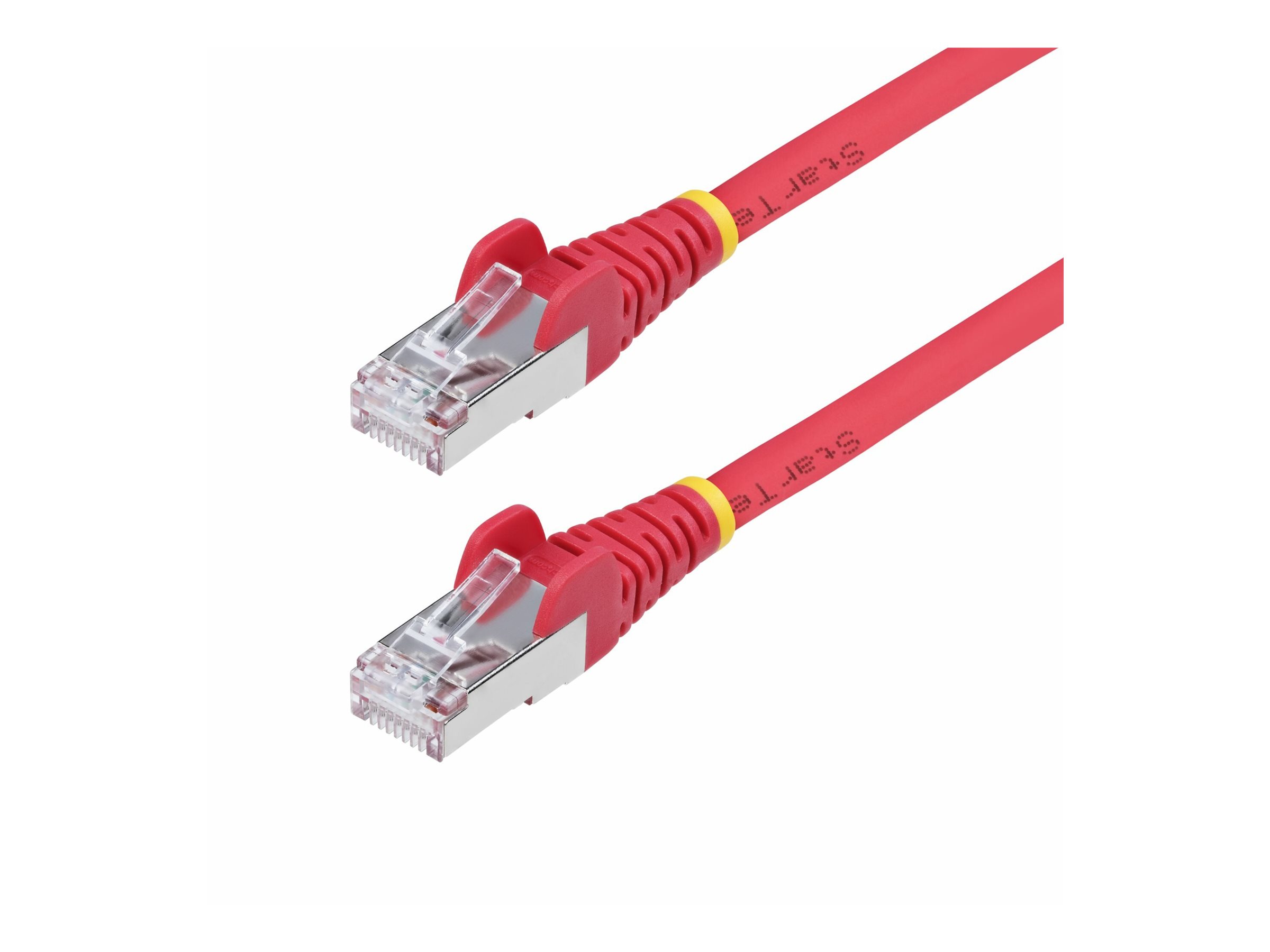

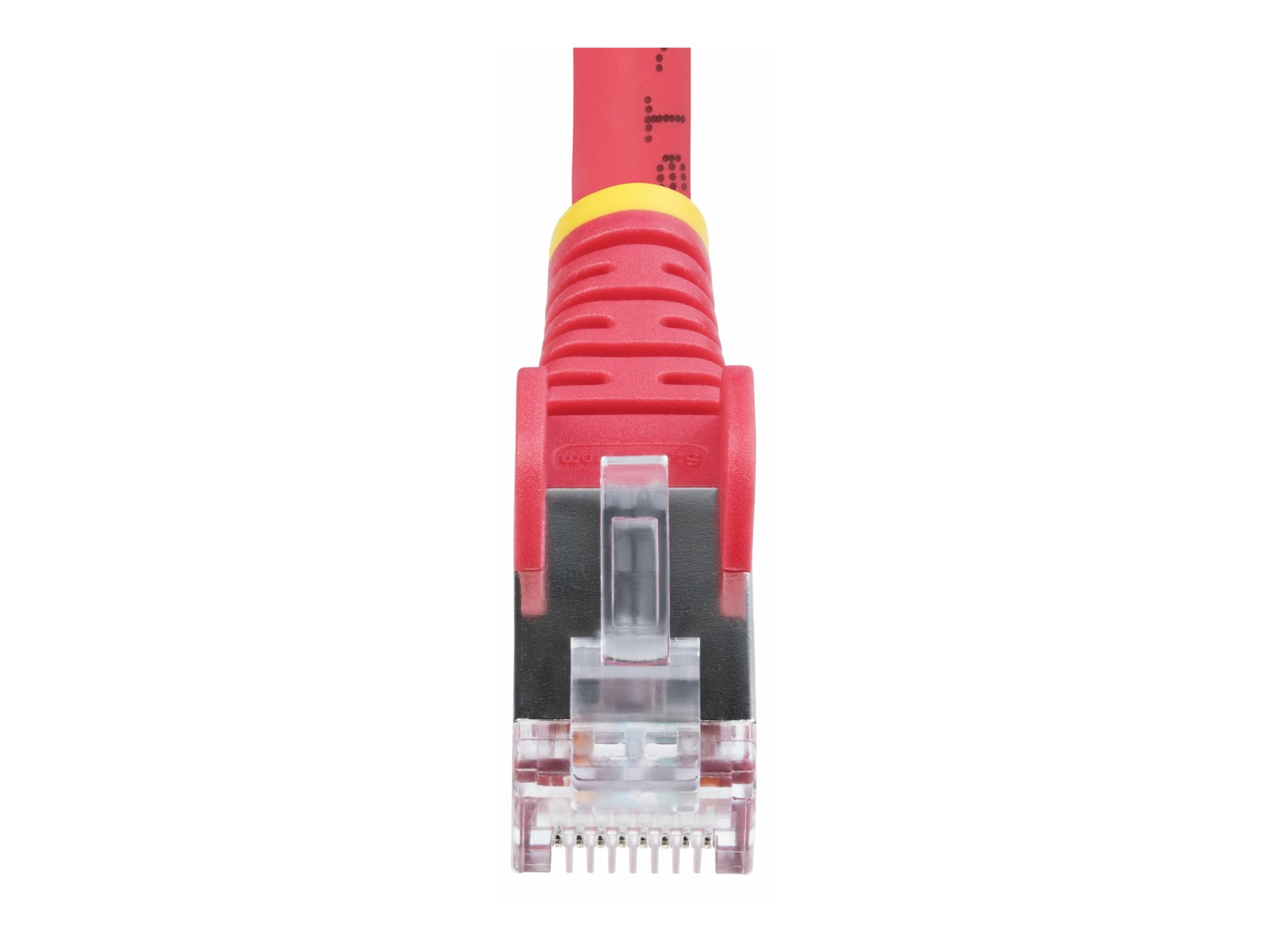

Startech 25ft Red CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH

MSRP$36.89

$35.00

Startech 25ft Red CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Patch cable RJ-45 (M) to RJ-45 (M) 7.6 m 5.7 mm S/FTP

Startech 25ft Red CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH

Patch cable
RJ-45 (M) to RJ-45 (M)
7.6 m
5.7 mm
S/FTP
CAT 5/5e/6/6a
IEEE 802.3bt
halogen-free, passive, snagless, stranded
red

Additional Details
Price:	$35.00
MSRP:	$36.89
Mfr Part #:	NLRD-25F-CAT6A-PATCH
SHI Part #:	49626428
Category:	Signal cable
UNSPSC:	26121604
Manufacturer:	StarTech.com
Product Type:	Hardware

General Information
Category	Signal cable
Description	Startech 25ft Red CAT6a Ethernet Cable, Snagless, S/FTP, 10G, LSZH - Patch cable - RJ-45 (M) to RJ-45 (M) - 7.6 m - 5.7 mm - S/FTP - CAT 5/5e/6/6a - IEEE 802.3bt - halogen-free, passive, snagless, stranded - red
Manufacturer	StarTech.com
MSRP	$36.89
UNSPSC	26121604
Main Specifications
Header / Brand	Startech StarTech.com
Left Connector Type	RJ-45
Length	7.6 m
Miscellaneous / Product Color	Red
Network Cable Type	Patch cable
Packaged Quantity	1
Right Connector Type	RJ-45
Service & Support / Type	Limited lifetime warranty
Connectivity
Connector	RJ-45 - male
Connector (Second End)	RJ-45 - male
Dimensions & Weight (Shipping)
Shipping Depth	20 cm
Shipping Height	4 cm
Shipping Weight	270 g
Shipping Width	18 cm
Environmental Parameters
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
American Wire Gauge (AWG)	27
Cable Length	7.6 m
Color	Red
Diameter	5.7 mm
Features	Halogen-free, passive cable, snagless, stranded, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 50 micron gold-plated connectors, EMI protection, 100W PoE++ support
Jacket Material	Low Smoke Zero Halogen (LSZH)
Network Cable Type	Patch cable - CAT 5/5e/6/6a - IEEE 802.3bt
Pairs per Cable	4 pairs
Plated Connector	Gold
Shielding Material	Aluminum mylar foil with braid
Technology	S/FTP
Wires per Cable	8 wires
Wiring Scheme	T568B
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Miscellaneous
Compliant Standards	RoHS, ETL, WEEE, ANSI/TIA-568.2-D, IEEE 802.3bt Type 4, TIA/EIA T568B - up to 500 MHz
